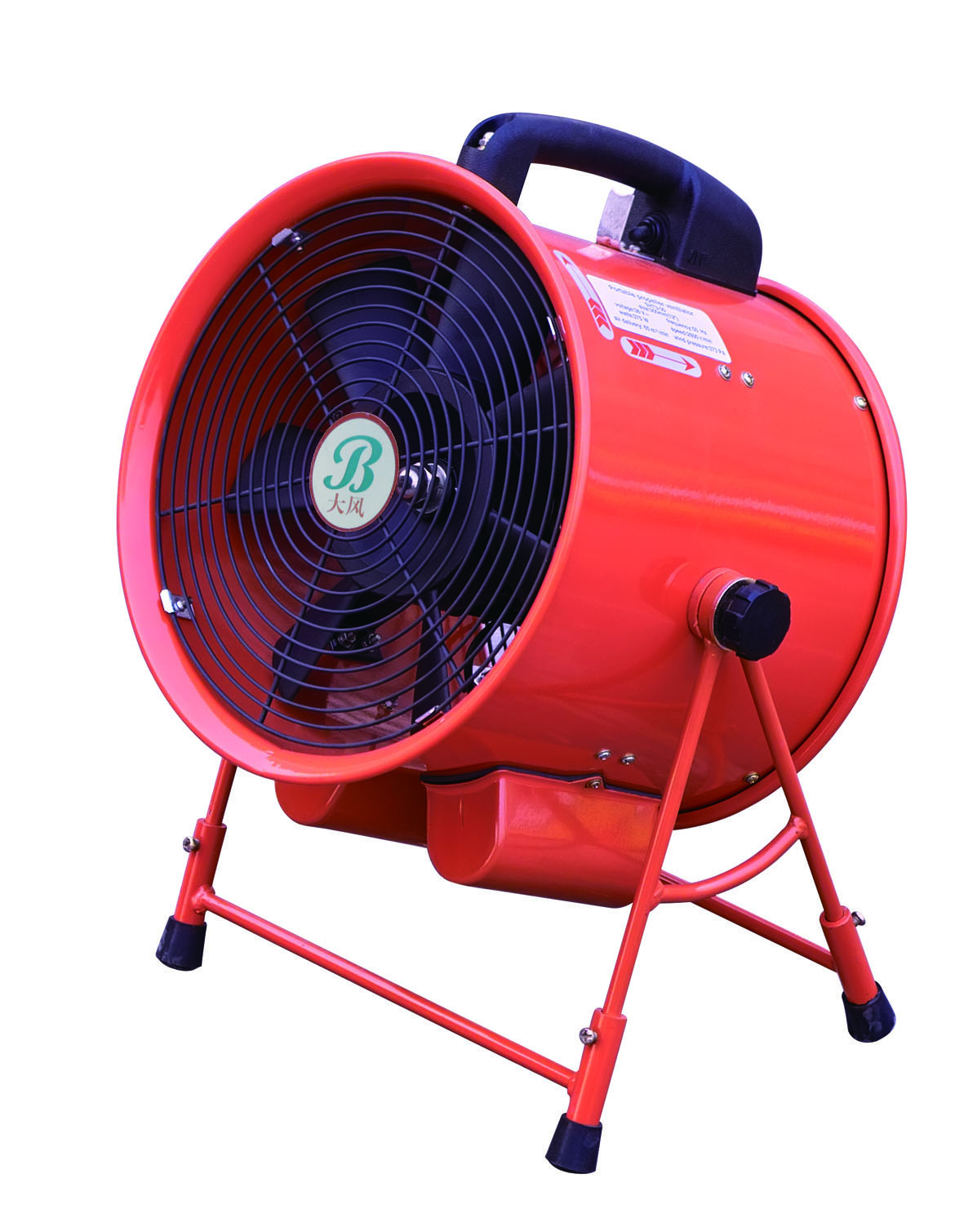

Adjustable Industrial Blower Fan
This adjustable blower fan is designed for industrial and commercial applications requiring high-volume air movement. The blower features a robust construction with a durable metal housing and adjustable stand for precise airflow positioning.
Technical Specifications
Product Overview
High-Performance Industrial Ventilation
This adjustable industrial blower fan is designed for professional environments requiring reliable supply and exhaust ventilation. It features a robust metal housing with a powder-coated finish for corrosion resistance and an integrated handle for easy portability. Ideal for long-distance air movement in ship building, municipal engineering, and chemical facilities, it combines high wind pressure with a stable, safe design.
Design & Portability
- Design Features
- Adjustable StandBuilt-in HandlePortable DesignPowder-Coated FinishOne-Piece Safety Switch
Safety & Construction
Safety Protections
- Protective grill to prevent blade contact
- Thermal overload motor protection
- Durable metal housing
- Stable capacity design
Performance Range
Key Performance Metrics
200 mm
Minimum Diameter
600 mm
Maximum Diameter
3,300 r/min
Max Rotation Speed
Technical Specifications
Technical Data Sheet
| Model | Size (mm) | Power (W) | Capacity (m³/min) | Static Pressure (Pa) | Noise (dB(A)) |
|---|---|---|---|---|---|
| SHT-20 | 200 | 230 | 25 | 245 | 60 |
| SHT-25 | 250 | 320 | 43 | 294 | 68 |
| SHT-30 | 300 | 520 | 65 | 370 | 78 |
| SHT-35 | 350 | 750 | 82 | 598 | 80 |
| SHT-40 | 400 | 1,100 | 96 | 700 | 80 |
| SHT-50 | 500 | 2,000 | 200 | 1,050 | 88 |
| SHT-60 | 600 | 2,200 | 240 | 1,100 | 92 |
Applications
Primary Applications
- Communication cable maintenance
- Ship building and repairing
- Municipal underground engineering
- Chemical industrial factories
- Large capacity tank containers
Electrical Requirements
Available Voltages
110V220V380V
