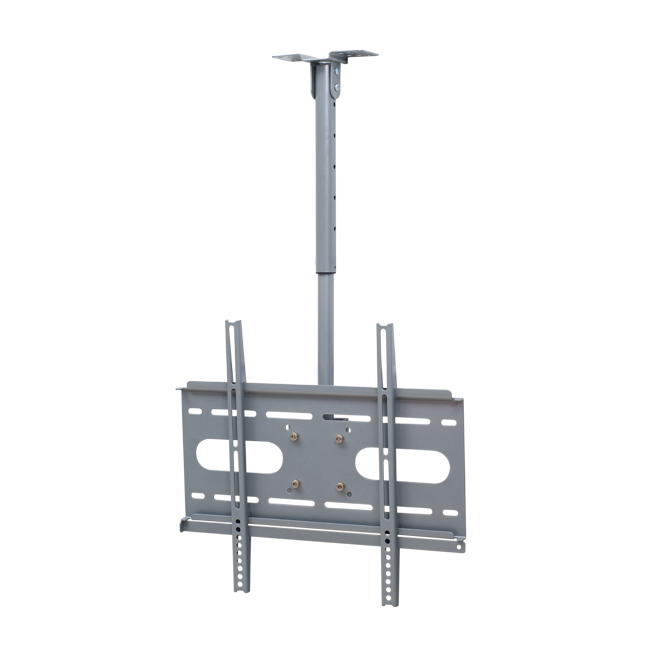

Adjustable Height Steel TV Ceiling Mount
This steel TV ceiling mount is designed for securely mounting flat panel TVs from the ceiling. It features adjustable height and tilt, with an optional security lock.
Technical Specifications
Overview
Professional Grade Ceiling Mounting Solution
This adjustable height steel TV ceiling mount is engineered for professional installations in both commercial and residential environments. Constructed from high-gauge cold-rolled steel, it provides a secure and durable mounting platform for screens ranging from 23'' to 37''. The design features toolless tilt adjustment and an optional security lock, making it an ideal choice for public spaces where both viewing flexibility and theft prevention are priorities.
Physical Specifications
Key Performance Metrics
56 kg
Max Load Capacity
620 mm
Max Extension
400 mm
Max VESA
Available Finishes
Powder Coat SilverBlack
- Material
- High gauge cold rolled steel

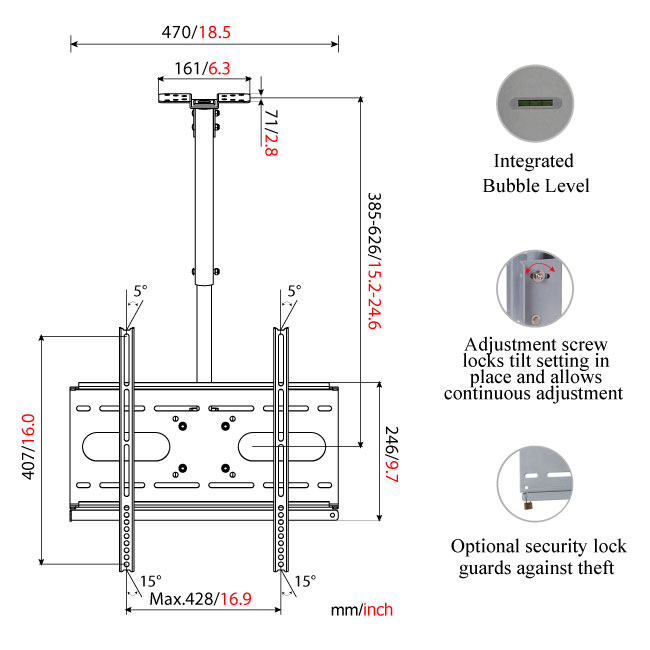

Adjustability & Installation
Installation Features
- Toolless tilt adjustment
- Integrated bubble level for precise alignment
- Universal hardware pack included
- Continuous adjustment screw for locking tilt
- Adjustable Length Range
- 380mm - 620mm
- Tilt Range
- -10° to +5°
Compatibility & Security
- Compatible Screen Sizes
- 23'' - 37''
- Security Features
- Anti-theft Lock CompatibleSecurity Lock Guards
Logistics & Packaging
Standard Packaging
| Metric | Value |
|---|---|
| Quantity per Carton | 3 pcs |
| Carton Dimensions | 52 x 25.5 x 31 cm |
| Gross Weight (GW) | 13.5 kgs |
| Net Weight (NW) | 11.7 kgs |
Container Loading Capacity
- 20' Container: 2055 pcs (685 cartons)
- 40' Container: 4110 pcs (1370 cartons)
