Technical Specifications
Product Overview

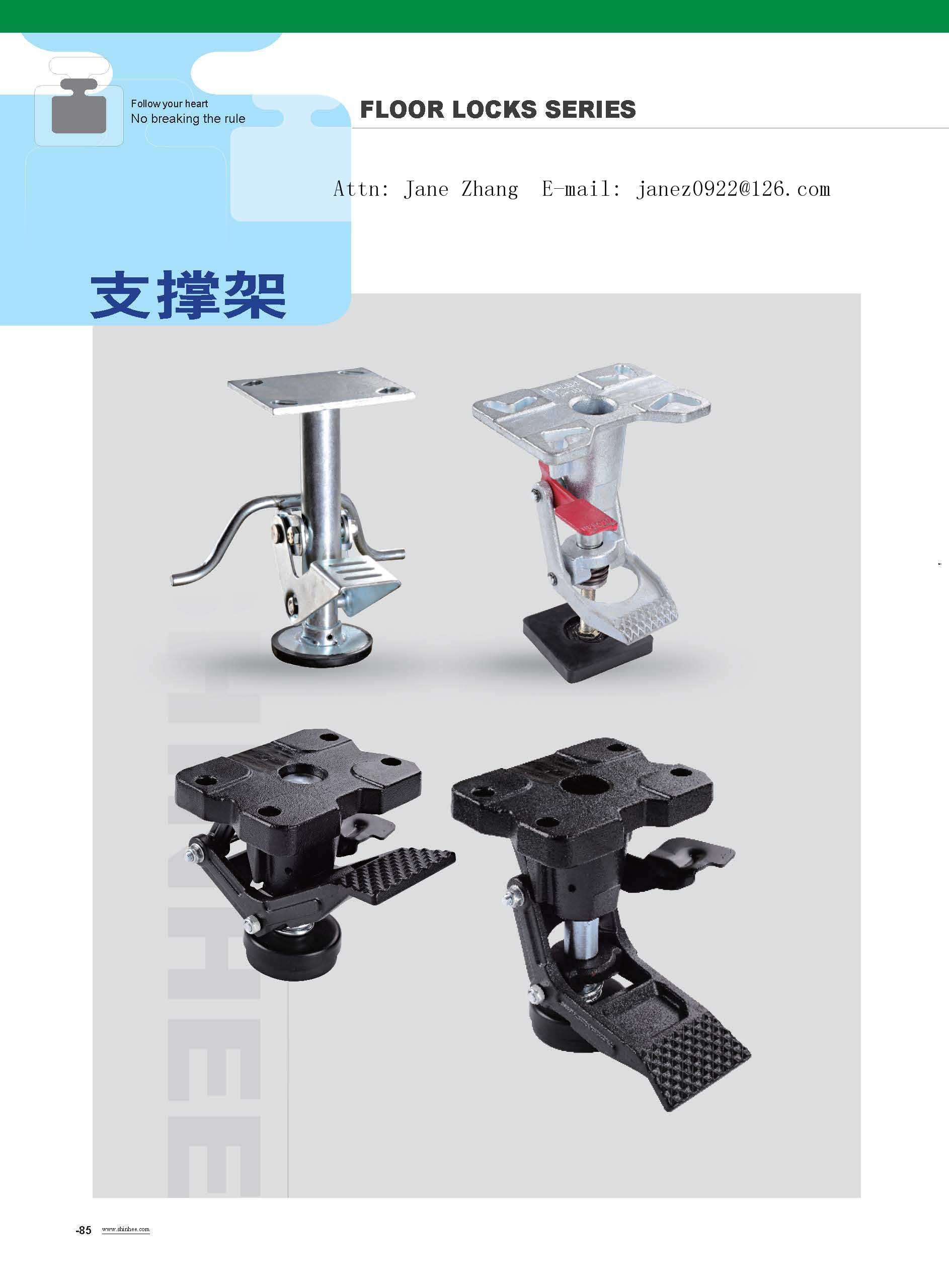

Heavy-Duty Floor Locks
These adjustable height floor locks are engineered to provide superior stability and support for mechanical appliances and industrial equipment. Designed for lifting, carrying, loading, and unloading applications, they ensure equipment remains securely in place during operation. With a robust construction and multiple size configurations, these locks are suitable for a wide range of industrial environments.
Technical Specifications
- Top Plate Thickness Options
- 5.5mm9.5mm22mm
- Attaching Bolt Sizes
- Ø 11 x 20mmØ 8/12mmØ 14.5mm
Model Dimensions
Model Specifications
| Model | Size | Retracted Height (mm) | Extended Height (mm) |
|---|---|---|---|
| FL4N | 4" | 125.5 | 149 |
| FL5N | 5" | 144.5 | 172 |
| FL6N | 6" | 169.5 | 197 |
| FL8N | 8" | 219.5 | 247 |
| FL6D | 6" | 165 | 205 |
| FL8D | 8" | 208 | 248 |
| FL456AJD | 4"-6" | 132 | 203 |
| FL810AJD | 8"-10" | 173 | 295 |
