Technical Specifications
Overview
Versatile Ceiling Mounting Solution

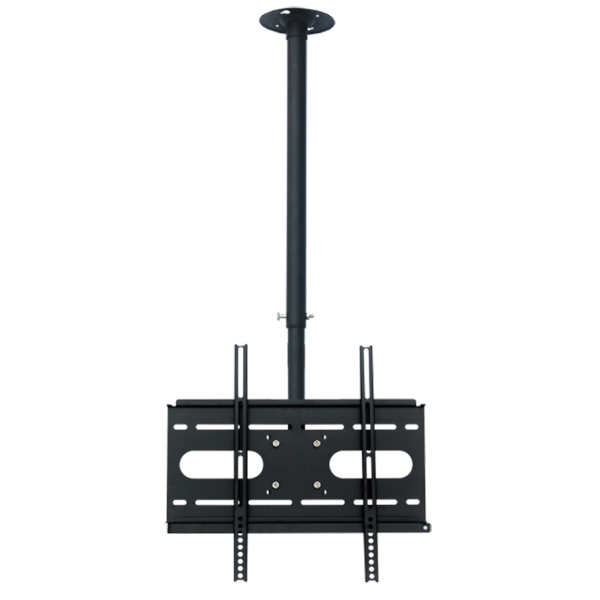

This adjustable ceiling mount is engineered from high-gauge cold-rolled steel to provide a secure and stable installation for flat panel displays. It features a telescopic pole for height adjustment and tool-less tilt functionality, making it ideal for both commercial and residential environments where wall mounting is not an option. With support for various VESA patterns and a 360-degree pivot for leveling, it ensures optimal viewing angles in any space.
Key Performance Metrics
Key Performance Metrics
56 kg
Max Load Capacity
360 °
Leveling Pivot
400 mm
Max VESA
Compatibility
- Supported Screen Sizes
- 23'' - 37'' (Supports up to 55'' depending on VESA)
- VESA Compatibility
- Up to 400x400mm
Physical Adjustments
- Tilt Range
- -10° to +5°
- Adjustable Length Range
- 479mm - 794mm
- Tool-less Adjustment
- Yes
Construction & Finish
Available Finishes
Silver Powder CoatBlack Powder Coat
- Material
- High gauge cold rolled steel
Safety & Accessories
Security Features
- Optional security lock guards against theft
- Universal hardware pack included
Logistics & Packaging
Packaging Specifications
| Metric | Value |
|---|---|
| Quantity per Carton | 2 pcs |
| Carton Dimensions | 56 x 25.5 x 25.5 cm |
| Net Weight (NW) | 7.2 kg |
| Gross Weight (GW) | 9.6 kg |
Container Loading Capacity
- 20' Container: 1538 pcs / 769 ctns
- 40' Container: 3078 pcs / 1539 ctns
