AC Hipot Tester

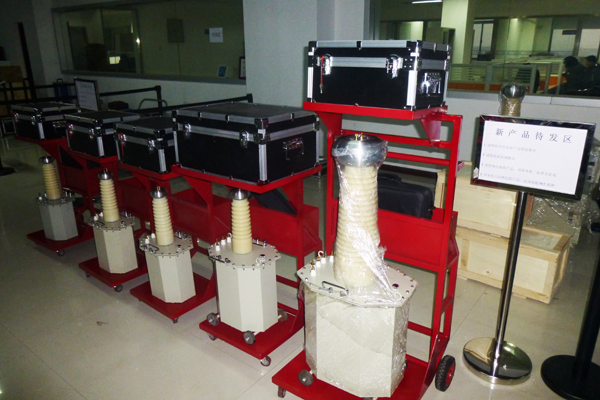

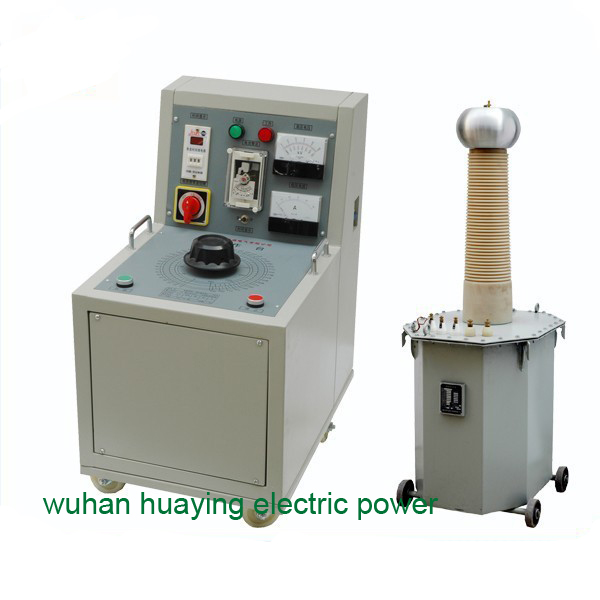

This AC Hipot Tester is a professional-grade testing solution designed for power systems, specifically for insulation testing of high-voltage equipment. It provides reliable performance for withstand testing on power transformers, circuit breakers, high-voltage motors, and voltage/current transformers. Additionally, it serves as a high-voltage power source for the calibration of high-voltage meters.
Applications
Typical Applications
- Power Transformer AC high voltage withstand test
- Circuit Breaker AC high voltage withstand test
- High voltage motors high voltage withstand test
- Voltage/current transformer high voltage withstand test
- High voltage power source for calibration of high voltage meter
Technical Specifications
Model Range
| Model | Capacity (kVA) | Max Output (kV) | HV Current (mA) |
|---|---|---|---|
| YDJ-1.5 | 1.5 | 50 | 30 |
| YDJ-3 | 3 | 50 | 60 |
| YDJ-5 | 5 | 50 | 100 |
| YDJ-10 | 10 | 50 | 200 |
| YDJ-20 | 20 | 50 | 400 |
| YDJ-30 | 30 | 50 | 600 |
| YDJ-40 | 40 | 50 | 800 |
| YDJ-50 | 50 | 50 | 1,000 |
| YDJ-100 | 100 | 100 | 100 |
How to Read Model Names
The model name YDJ denotes an AC Hipot tester, while YDJZ denotes an AC/DC Hipot tester. The nomenclature follows the format YDJ-maximum output capacity/maximum output voltage. For example, YDJ-3KVA/50KV indicates a maximum output capacity of 3kVA and a maximum output voltage of 50kV.
