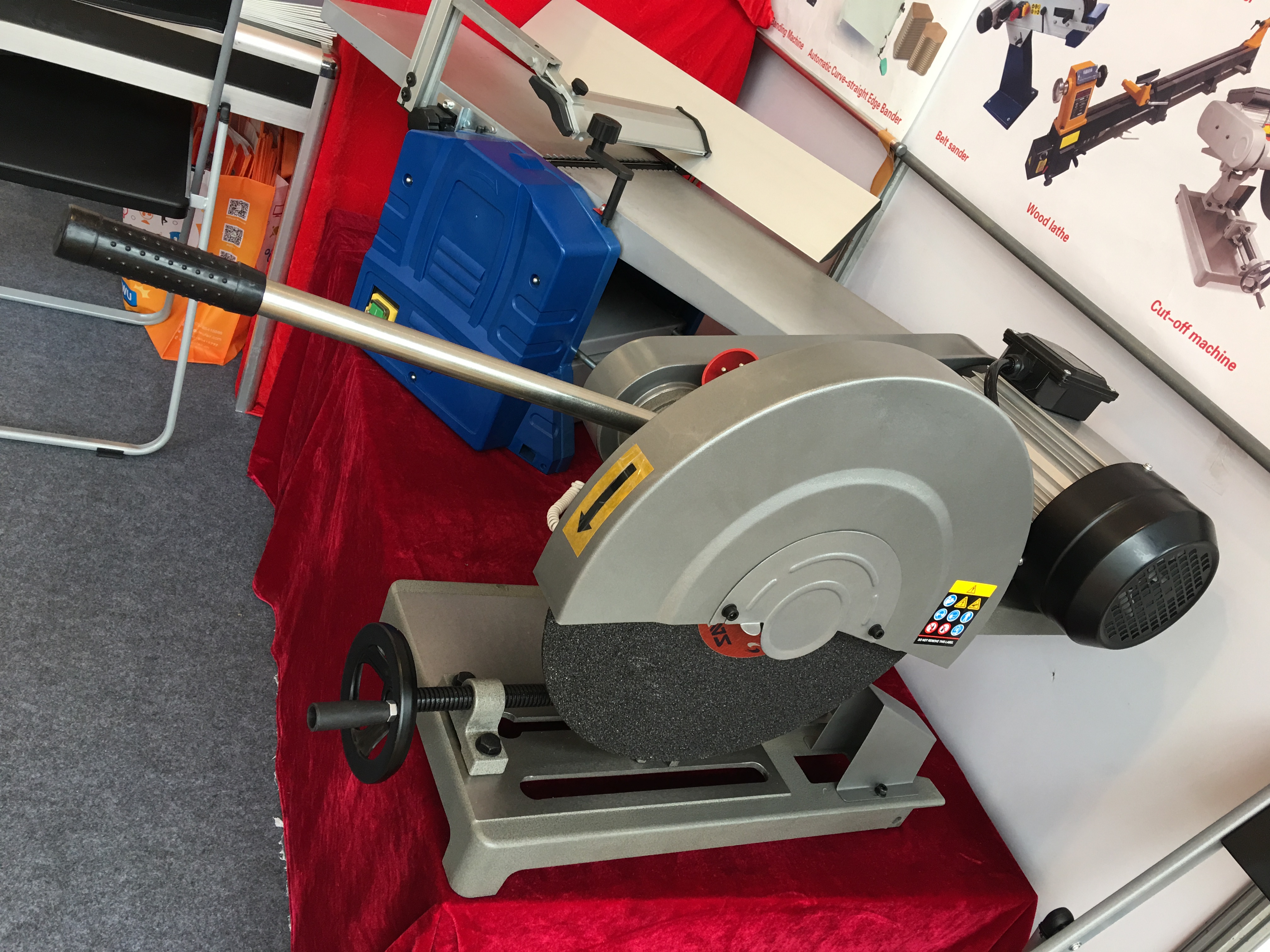

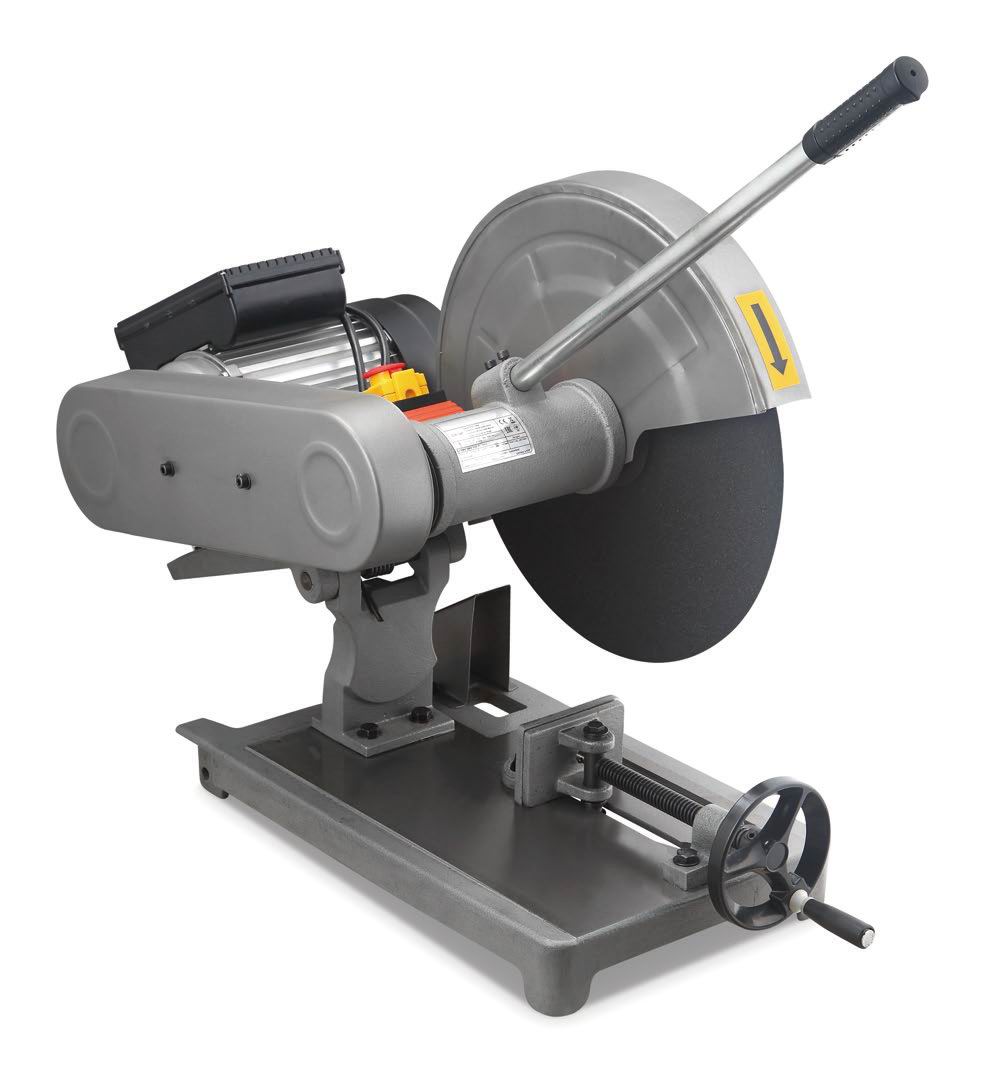

Abrasive Wheel Cut-Off Machine
This cut-off machine is designed for accurately cutting materials using a high-speed abrasive wheel. It delivers clean and burr-free cuts on metal, plastic, and other materials.
Technical Specifications
Overview
High-Performance Abrasive Cut-Off Machine
This robust and precise cut-off machine is designed for industrial and workshop applications, delivering clean and burr-free cuts on metal, plastic, and other materials. It features a high-speed abrasive wheel and a powerful 3-phase induction motor to ensure consistent performance during heavy-duty operations. Safety and stability are prioritized with a sturdy metal frame, integrated spark guard, and an easily accessible emergency stop button.
Key Performance Metrics
Performance Highlights
2.2 kW
Power Output
2,880 RPM
Rotational Speed
3 HP
Horsepower
Motor Specifications
- Motor Type
- 3-Phase Induction Motor (YE2-90L-2)
- Operating Voltage
- 3-400V
- Frequency
- 50 Hz
- Rated Current
- 4.6 A
- Efficiency Rating
- 83.2 %
Technical Standards
Ingress Protection
IP44
- Insulation Class
- Class B
- Compliance
- CEIEC 60034-1
Construction & Safety
Safety Equipment
- Abrasive wheel safety guard
- Prominent emergency stop button
- Spark guard for operator protection
- Separate on/off switch
Mechanical Components
- Sturdy metal frame and base
- Adjustable workpiece clamp/vise
- Control handle for manual operation
- Heavy-duty power connector
Applications
- Suitable Materials
- MetalPlasticComposite Materials
