Abrasive Flap Wheel
Abrasive flap wheels are used for grinding, blending, and finishing various materials. The wheels consist of overlapping abrasive flaps bonded to a central core and can be used on metal, wood, and plastic.
Technical Specifications
Product Overview

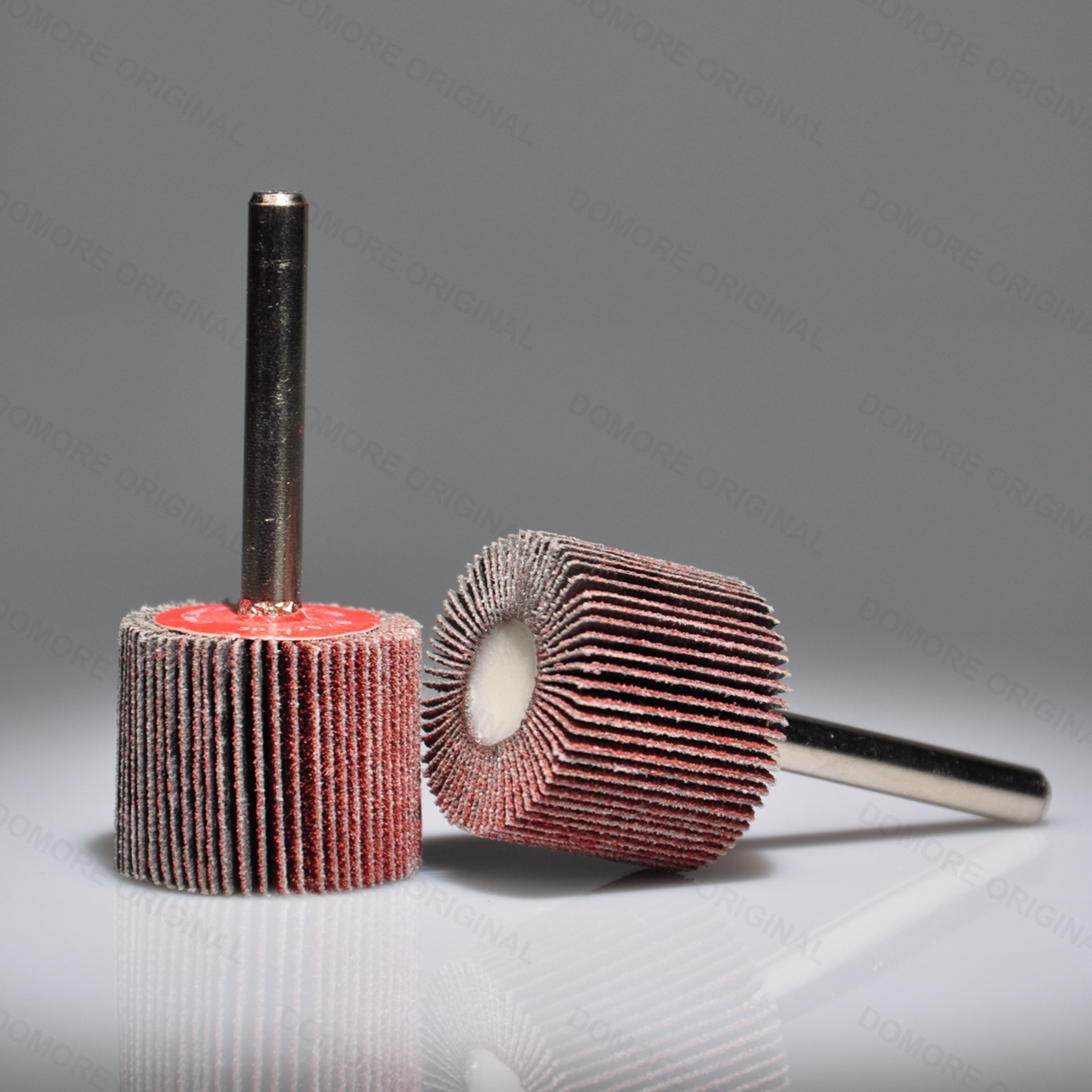

Mounted Abrasive Flap Wheels
Mounted flap wheels feature abrasive lamellas arranged radially around a central shaft, designed to contour effectively to workpieces as they wear. These tools are ideal for finishing, cleaning, deburring, and polishing operations on stainless steel, ferrous and non-ferrous metals, wood, and plastic. Compact in design with diameters of 3 inches or less, they are optimized for use with portable power tools.
Key Features
- Compatible Materials
- Stainless SteelFerrous MetalsNon-Ferrous MetalsWoodPlastic
- Primary Applications
- FinishingCleaningDeburringPolishing
Technical Specifications
Size and Speed Specifications
| Diameter (in) | Width (in) | Max Speed (RPM) |
|---|---|---|
| 1 | 1/2 | 30,000 |
| 1 | 5/8 | 30,000 |
| 1 | 1 | 30,000 |
| 1-1/2 | 1/2 | 25,000 |
| 1-1/2 | 3/4 | 25,000 |
| 1-1/2 | 1 | 25,000 |
| 2 | 1/2 | 25,000 |
| 2 | 3/4 | 25,000 |
| 2 | 1-1/2 | 25,000 |
| 2 | 2 | 25,000 |
| 2-1/2 | 1/2 | 20,000 |
| 2-1/2 | 1 | 20,000 |
| 2-1/2 | 2 | 20,000 |
| 3 | 1/2 | 20,000 |
| 3 | 3/4 | 20,000 |
| 3 | 1 | 20,000 |
| 3 | 1-1/2 | 12,000 |
| 3 | 2 | 12,000 |
- Shank Diameter
- 0.25 in
- Grit Range
- 40# - 320#
