AAAC 150mm2 Aluminum Alloy Conductor
This AAAC conductor is constructed from aluminum alloy 6201, which allows for optimized characteristics in transmission and distribution lines. It is suitable for projects that require both mechanical strength and electrical conductivity.
Technical Specifications
Overview
High-Performance Aluminum Alloy Conductor

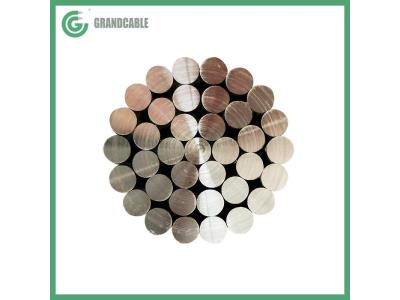

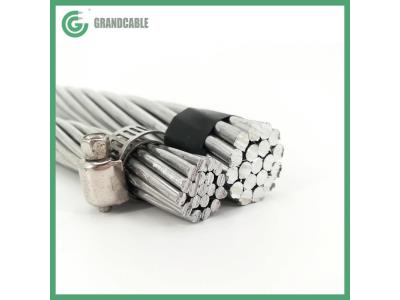

The AAAC 150mm2 conductor utilizes 6201 aluminum alloy to provide an optimized balance of mechanical strength and electrical conductivity. Specifically engineered for overhead transmission and distribution lines, this conductor offers a superior strength-to-weight ratio and enhanced corrosion resistance compared to standard aluminum options. Constructed as a homogeneous concentrically stranded wire, it meets rigorous BS 3242 standards for reliable utility-grade performance.
Technical Specifications
- Conductor Type
- AAAC (All Aluminum Alloy Conductor)
- Alloy Grade
- 6201
- Nominal Cross Section
- 150 mm2
- Number of Strands
- 19
- Individual Wire Diameter
- 3.18 mm
Compliance
Management System Certifications
ISO 9001ISO 14001OHSAS 18001
- Standards Compliance
- BS 3242
Logistics
- Minimum Order Quantity
- 1000 meters
