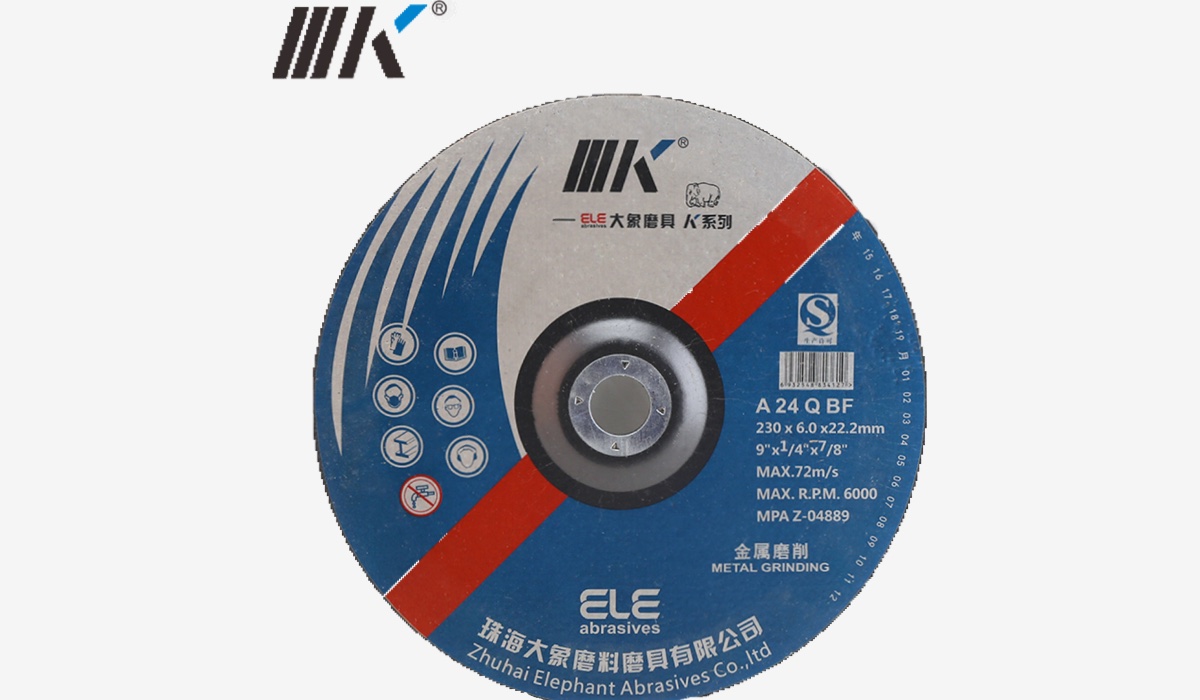

9 inch A24QBF Metal Grinding Wheel

This 9-inch grinding wheel is designed for metal grinding applications. It offers efficient material removal and smooth finishing on various types of steel.

Request a Quote Download PDFPDF

Technical Specifications

Product Overview

High-Performance Metal Grinding

This 9-inch depressed-center grinding wheel is engineered for efficient material removal and finishing on various metal types. Designed for durability, the wheel features a reinforced structure to ensure safety and consistent performance during demanding grinding tasks. It serves as a cost-effective solution for industrial fabrication, automotive work, and general manufacturing applications.

Technical Specifications

Dimensions

230 mm

Diameter

6 mm

Thickness

22.2 mm

Bore Diameter

Performance Ratings

72 m/s

Max Speed

6,000 rpm

Max RPM

Specification Code: A 24 Q BF
Standards Compliance: MPA Z-04889

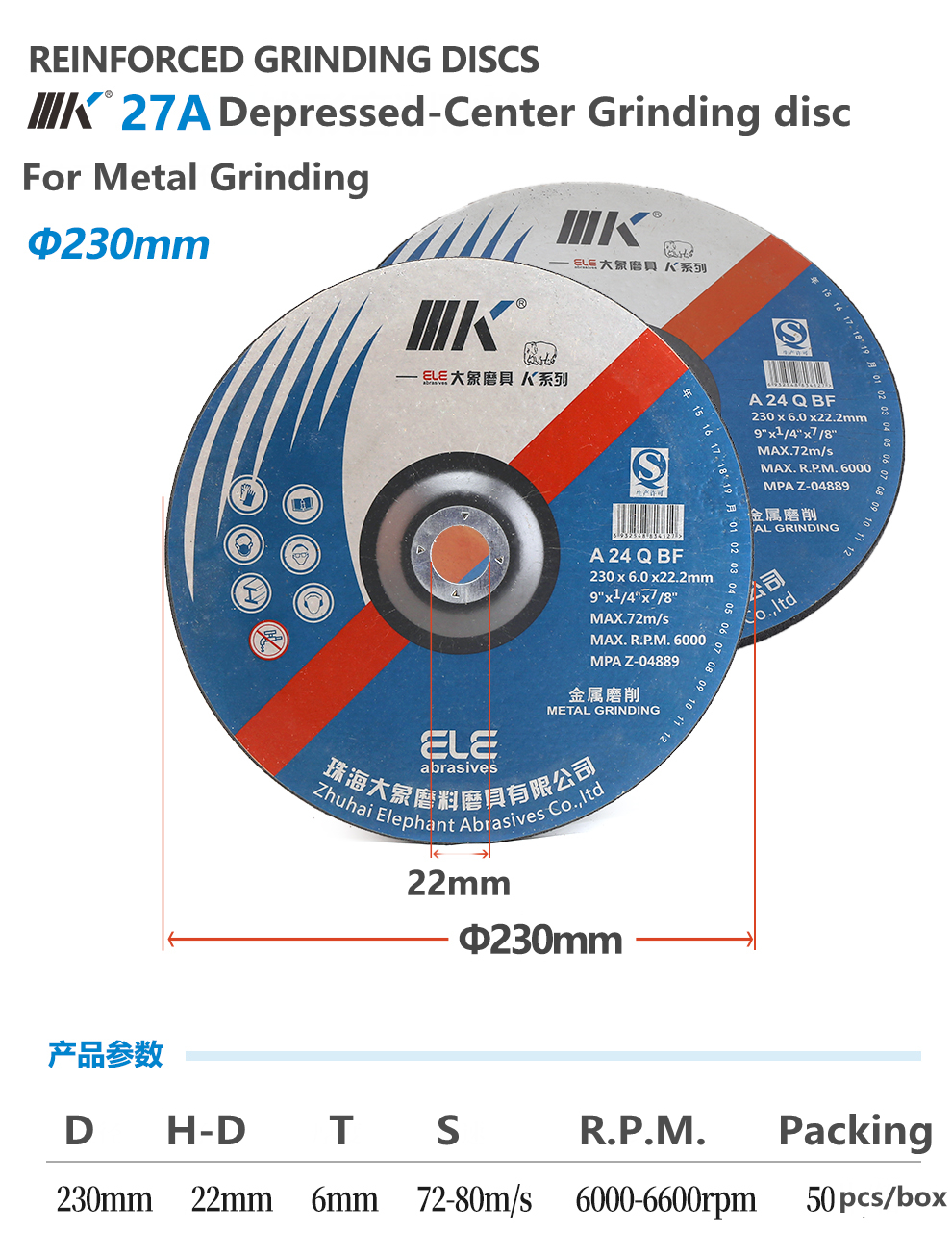

Technical diagram showing the 230mm diameter, 6mm thickness, and reinforcement details.

Application & Usage

Compatible Materials

Stainless Steel
Carbon Steel
Iron
Alloy Steel

Industry Applications

Metal ProcessingFoundryGeneral ManufacturingAutomotiveMold ProcessingSteel Industry

Versatile applications across various sectors including steel, automotive, and metal processing industries.

Suitable for diverse metal types including stainless steel, carbon steel, and iron.

Packaging & Structure

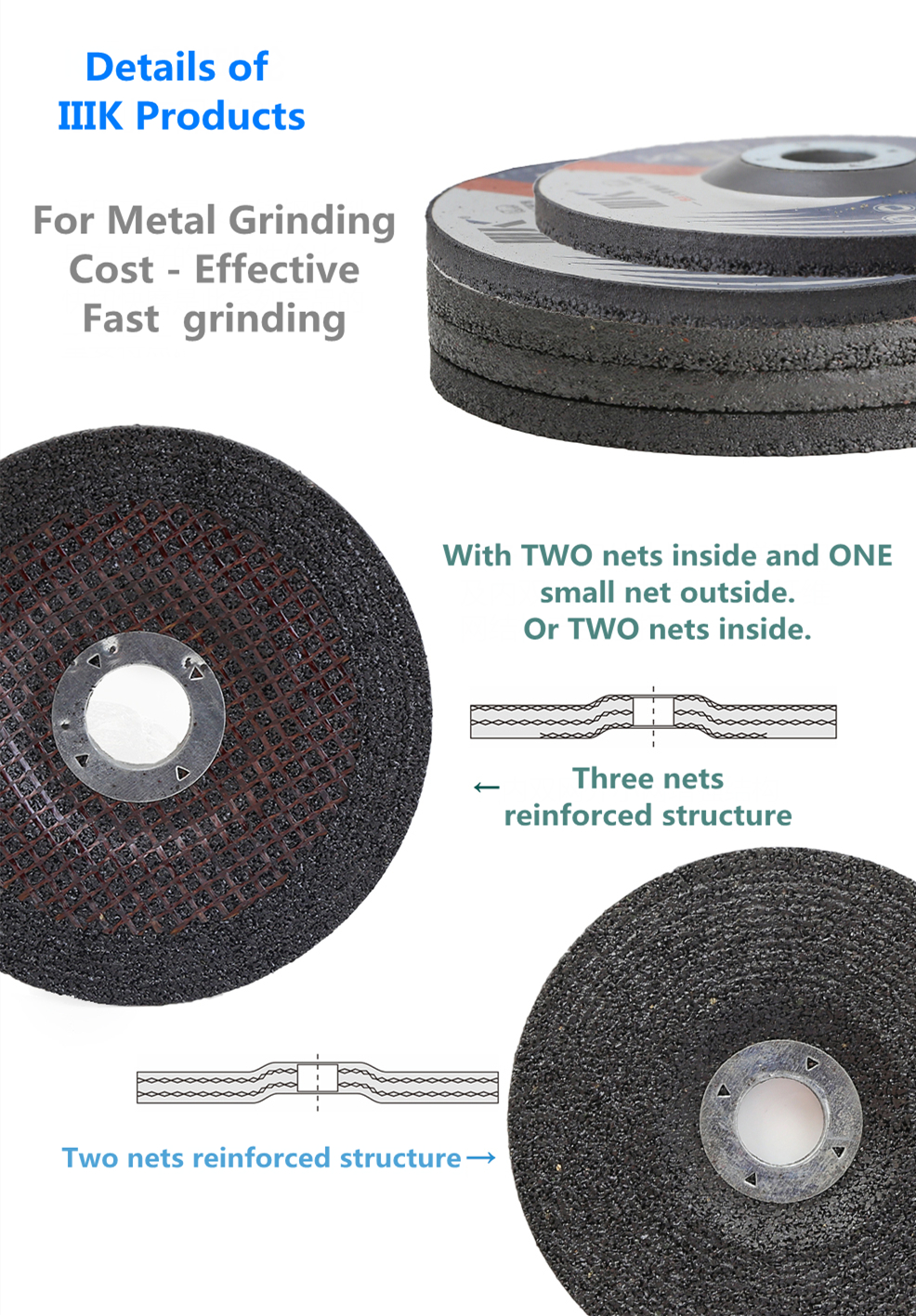

Reinforcement Structure: Available with two internal nets or a combination of two internal nets and one external net.
Packaging: 50 pieces per box
