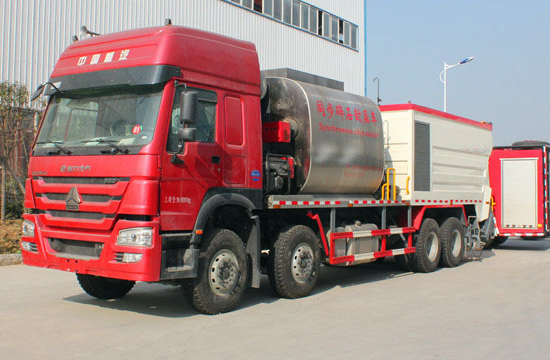

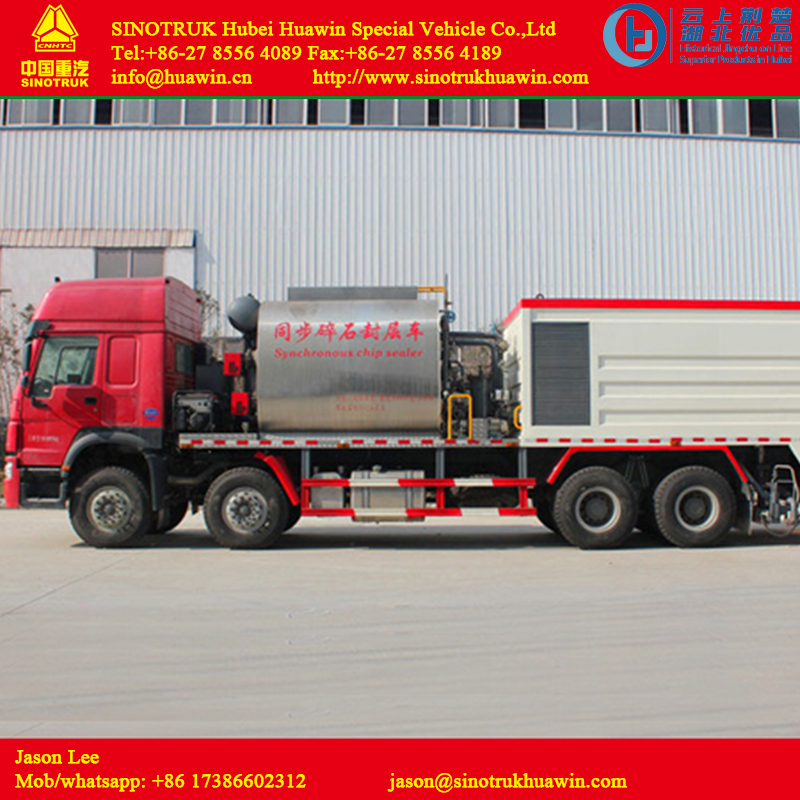

8x4 Synchronous Chip Sealer Truck
The 8x4 synchronous chip sealer truck is a specialized vehicle for road maintenance, applying asphalt and aggregates simultaneously. This process ensures uniform material distribution and optimal bonding for durable pavement sealing.
Technical Specifications
Overview
High-Efficiency Road Maintenance Solution
This 8x4 synchronous chip sealer truck is engineered for heavy-duty road maintenance and construction. By simultaneously applying asphalt binder and aggregates, it creates a durable, skid-resistant surface treatment for highways, rural roads, and airport runways. Equipped with advanced computer-controlled systems, this vehicle ensures precise material distribution and optimal bonding, effectively extending the lifespan of pavement infrastructure.
Vehicle Dimensions & Weights
- Overall Dimensions (L x W x H)
- 10800 × 2500 × 3600 mm
- Wheelbase
- 1800 + 3225 + 1350 mm
- Tare Weight
- 19000 kg
- Payload Capacity
- 28000 kg
Performance & Drivetrain
Engine Specifications
336 HP
Horse Power
1,350 N.m
Max Torque
- Gearbox
- 10-forward & 2-reverse gears
- Max Driving Speed
- 90 km/h
Sprinkler & Sealing System
Tank Capacities
| Component | Capacity |
|---|---|
| Bitumen Tank | 8 cbm |
| Rock Tank | 12 cbm |
Spraying Performance
4 m
Spraying Width
950 L/Min
Bitumen Pump Rate
- Spraying Capacity Range
- 0.25-4 kg/m2
Warranty & Support
Warranty Coverage
- 1 year or 100,000km on engine, transmission, and axle
- Spare parts supplied at cost price
- Regular callback service for vehicle status
