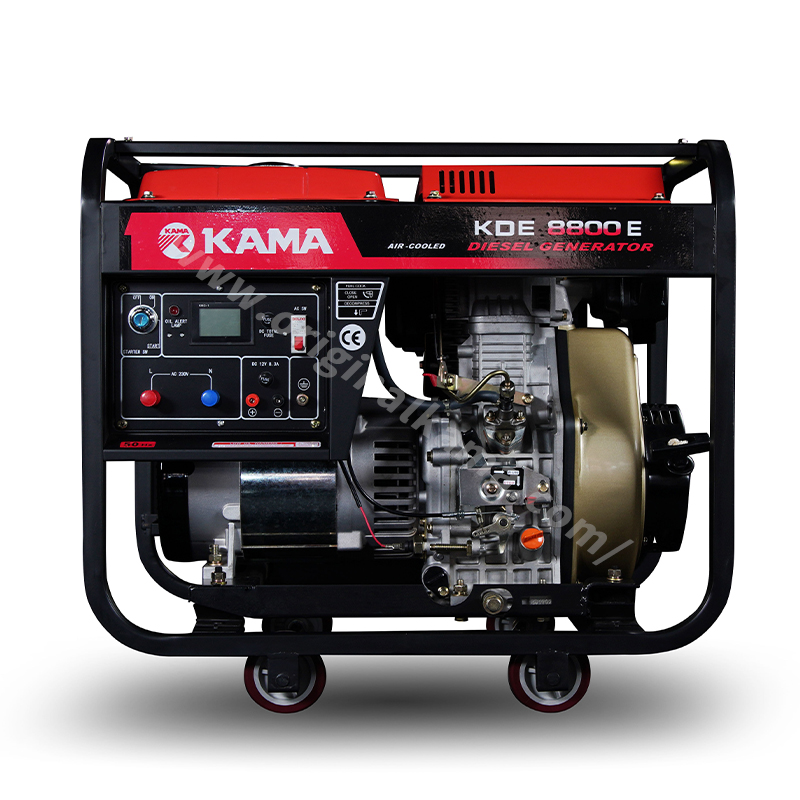

8kW Open Frame Diesel Generator Set
This 8kW diesel generator set features an open frame. It is designed to provide a reliable power source with an air-cooled diesel engine for efficient operation.
Technical Specifications
Overview
High-Performance Diesel Power
This 8kW open frame diesel generator set is engineered for reliability and efficient power generation in demanding environments. Featuring a robust air-cooled four-stroke engine, the unit delivers stable voltage output thanks to an integrated Automatic Voltage Regulator (AVR). Its compact, high-strength steel frame ensures durability while maintaining a lightweight profile for easier transport and deployment.
Technical Specifications
Key Performance Metrics
6 kW
Rated Output Power
6.5 kW
Max Output Power
230 V
Rated Voltage
50 Hz
Rated Frequency
Engine Specifications
| Specification | Value |
|---|---|
| Engine Type | Single-cylinder, Air-cooled, 4-stroke |
| Rotation Speed | 3000 rpm |
| Fuel Capacity | 12.5 L |

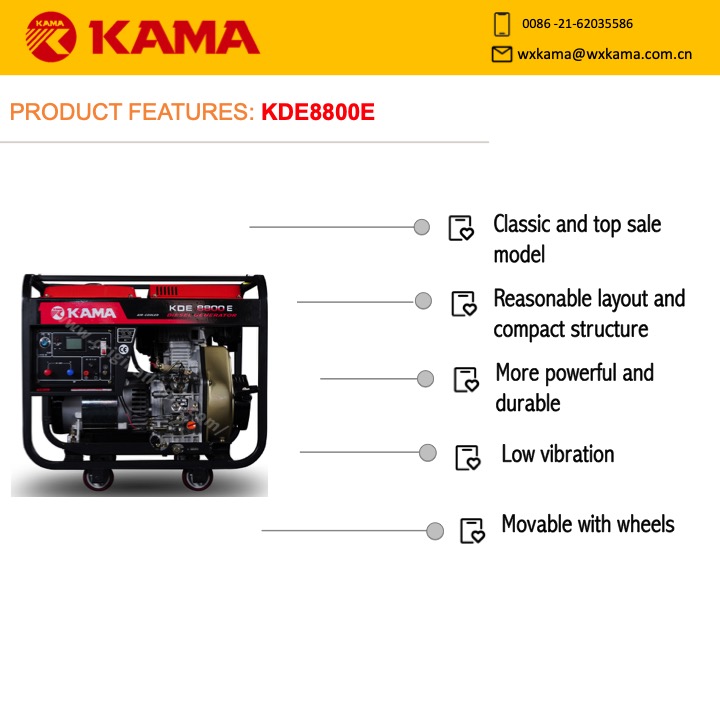

Features & Benefits
Key Advantages
- Integrated Automatic Voltage Regulator (AVR) for stable power output
- Air-cooled design eliminates water usage, ideal for water-scarce regions
- Taper shaft connection for high transmission efficiency and reliability
- High-strength steel frame for deformation resistance
- Compact and lightweight structure for portability
- Compliance & Configuration
- CE CertifiedEuro 5 UpgradeableCustomizable Panel OutputMovable with Wheels
