86 Series Brushless DC Motor
This brushless DC motor provides high torque up to 2.5Nm with power ranging from 200-780W. It offers a wide speed range, high efficiency, and extended operational life.
Technical Specifications
Overview
High-Performance 86 Series BLDC Motor
The 86 Series Brushless DC Motor is engineered for high-torque industrial applications, delivering up to 2.5Nm of torque with power outputs ranging from 200W to 780W. Designed for long-life and high efficiency, this motor offers a wide speed range and smooth operation, making it ideal for robotics, automation, and precision machinery. Its robust construction ensures reliable performance in demanding professional environments.
Performance Highlights
Key Performance Metrics
780 W
Max Power
2.5 Nm
Max Rated Torque
3,500 RPM
No Load Speed
8
Number of Poles
General Specifications
Insulation Class
Class B
- Winding Type
- Star
- Hall Effect Angle
- 120 ° electrical
- Shaft Run Out
- 0.025 mm
- Dielectric Strength
- 500VDC for one minute
- Operating Temperature
- -20 to +40℃
Electrical Data
Model Comparison Table
| Model | Rated Power (W) | Rated Torque (Nm) | Rated Current (A) | Resistance (ohm) |
|---|---|---|---|---|
| 86DMW70-4830 | 200 | 0.67 | 5.5 | 0.43 |
| 86DMW80-4830 | 300 | 1 | 8.6 | 0.32 |
| 86DMW90-4830 | 400 | 1.3 | 11 | 0.21 |
| 86DMW105-4830 | 550 | 1.8 | 14.8 | 0.15 |
| 86DMW130-4830 | 780 | 2.5 | 20 | 0.1 |
Wiring & Connectivity
Lead Wire Configuration
| Function | Color | Gauge |
|---|---|---|
| Phase U | Red | 14AWG UL1569 |
| Phase V | Yellow | 14AWG UL1569 |
| Phase W | Black | 14AWG UL1569 |
| Hall +5V | Red | 26AWG UL1569 |
| Hall A | Blue | 26AWG UL1569 |
| Hall B | Green | 26AWG UL1569 |
| Hall C | White | 26AWG UL1569 |
| Hall GND | Black | 26AWG UL1569 |
Physical Dimensions

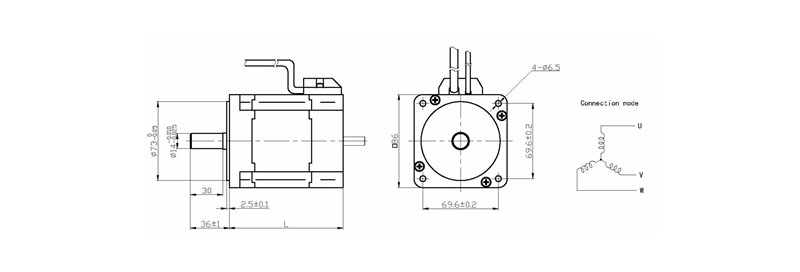

Mechanical Dimensions
- Flange Size: 69.6 ± 0.2 mm square
- Mounting Holes: 4 x 6.5 mm diameter
- Shaft Diameter: 14 mm (-0.009 to -0.025 mm)
- Shaft Length: 30 mm
- Pilot Diameter: 73 mm (-0.005 to -0.02 mm)
