80mm Brushless DC Motor
This brushless DC motor provides high torque up to 1.45Nm. It features a wide speed range, high efficiency, and long service life.
Technical Specifications
Overview
High-Performance 80mm Brushless DC Motor
This 80mm round series brushless DC motor is designed for demanding industrial applications requiring high torque and precise motion control. It features a robust star winding configuration and high-efficiency operation, making it ideal for robotics, automation, and precision machinery. With a long service life and a wide speed range, this motor provides reliable performance in diverse environmental conditions.
Key Performance
Key Performance Metrics
1.45 Nm
Max Rated Torque
450 W
Max Rated Power
3,000 rpm
Rated Speed
72 V
Voltage
Technical Specifications

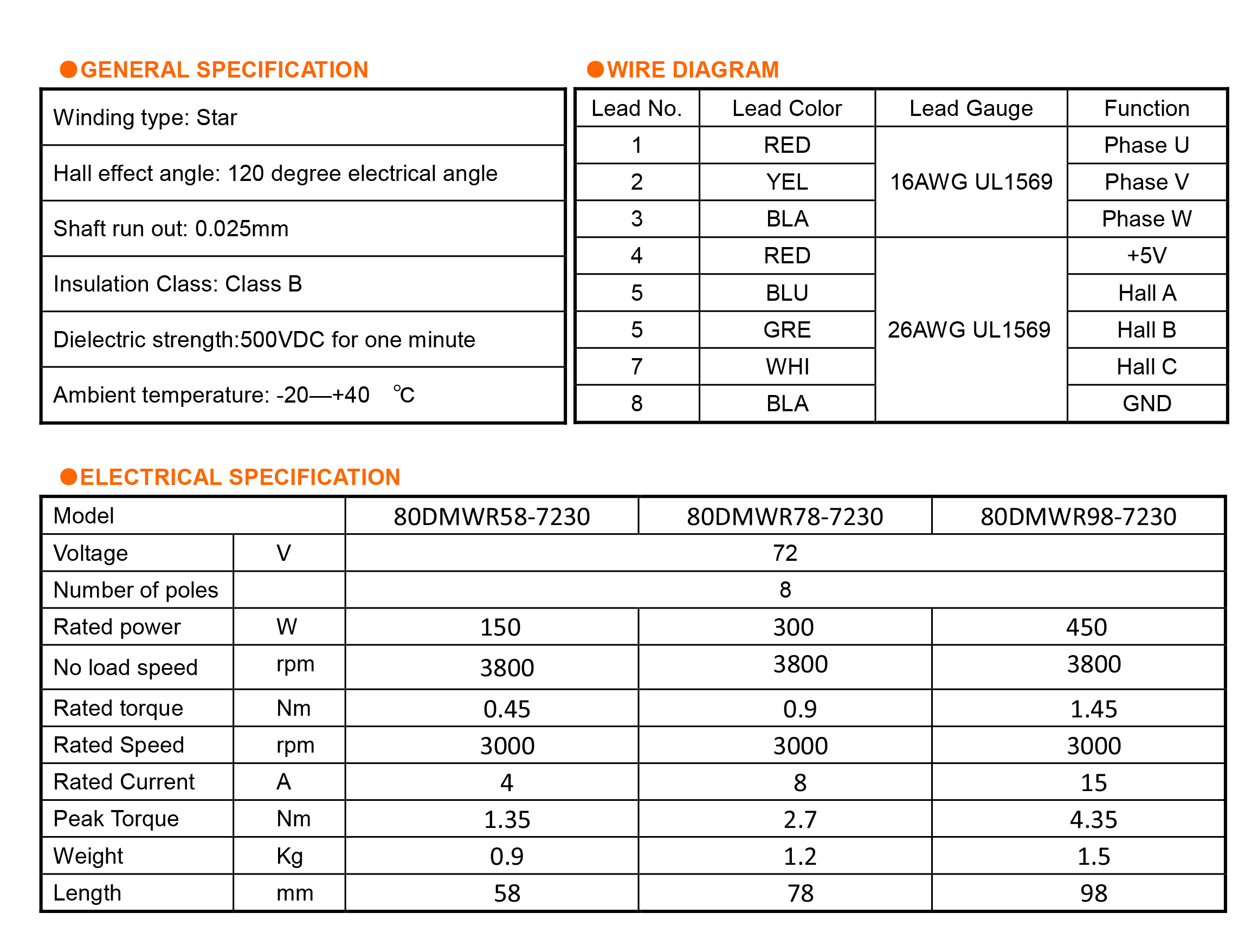

Model Specifications Table
| Model | Rated Power (W) | Rated Torque (Nm) | Rated Current (A) | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 80DMWR58-7230 | 150 | 0.45 | 4 | 58 | 0.9 |
| 80DMWR78-7230 | 300 | 0.9 | 8 | 78 | 1.2 |
| 80DMWR98-7230 | 450 | 1.45 | 15 | 98 | 1.5 |
General Characteristics
Insulation Class
Class B
- Winding Type
- Star
- Hall Effect Angle
- 120 degree electrical angle
- Shaft Run Out
- 0.025 mm

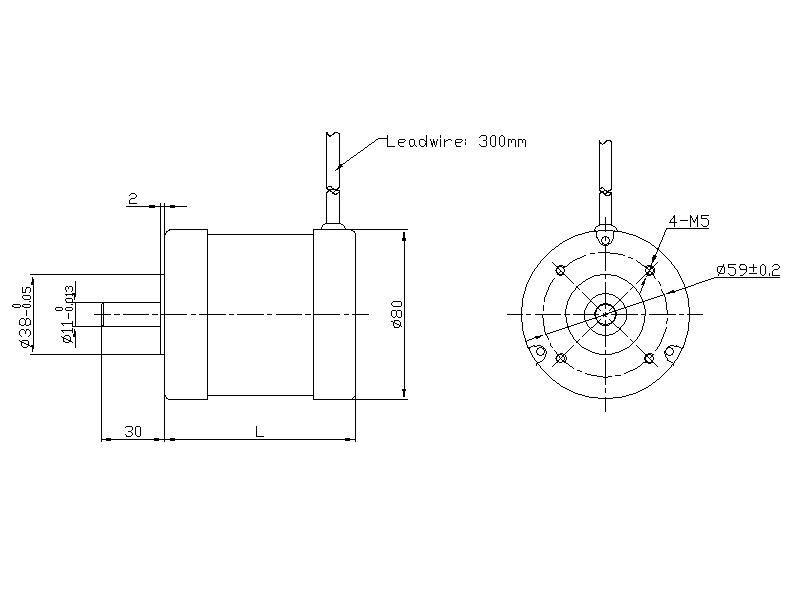

Physical Dimensions
- Housing Diameter
- 80 mm
- Shaft Diameter
- 11mm (-0.013mm tolerance)
- Lead Wire Length
- 300 mm
Electrical & Wiring
Wiring Configuration
- Phase U: Red (16AWG)
- Phase V: Yellow (16AWG)
- Phase W: Black (16AWG)
- Hall +5V: Red (26AWG)
- Hall A: Blue (26AWG)
- Hall B: Green (26AWG)
- Hall C: White (26AWG)
- Hall GND: Black (26AWG)
Environmental
- Ambient Temperature Range
- -20°C to +40°C
- Dielectric Strength
- 500VDC for one minute
