Technical Specifications
Product Overview

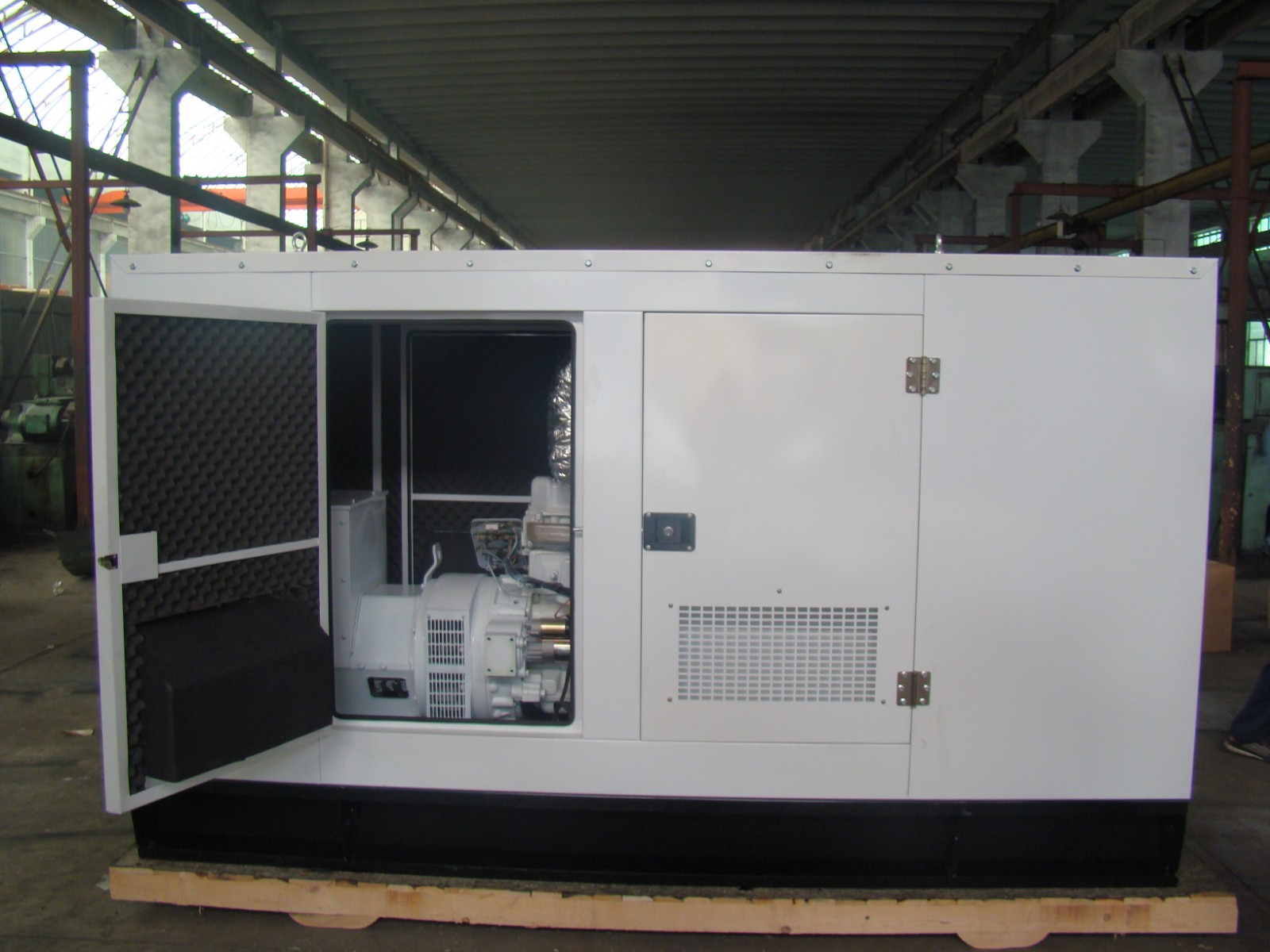

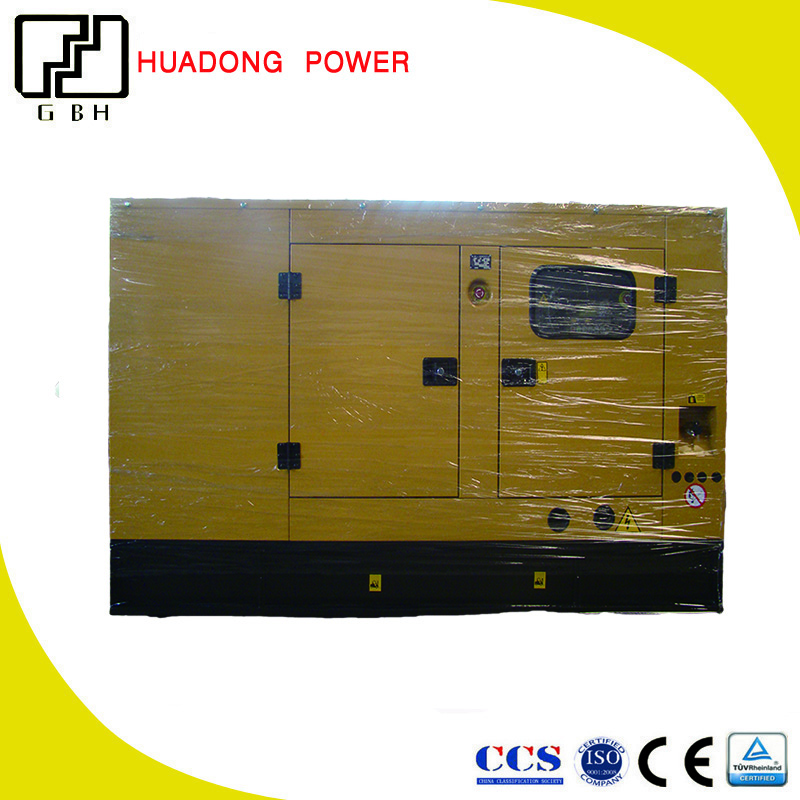

Reliable 80KW Silent Power Solution
This 80KW silent diesel generator is engineered for high-performance power generation in noise-sensitive environments. Encased in a robust soundproof enclosure, it provides a dependable electricity source for residential, commercial, and industrial applications. Designed for both prime and standby use, it features a heavy-duty steel base frame and integrated vibration dampers to ensure long-term durability and smooth operation.
Key Performance Metrics
Performance Highlights
80 KW
Rated Power
400 V
Rated Voltage
1,500 r/min
Engine Speed
8 Hours
Autonomy
Engine & Alternator
Engine Specifications
- Brand-new engine with CE certificate
- Brushless alternator, single bearing
- IP21/22 Protection rating
- Class H insulation
- Air, oil, and fuel filtration system included
Construction & Cooling
Cooling & Build
| Component | Specification |
|---|---|
| Radiator (Open Type) | 40℃ Standard |
| Radiator (Soundproof) | 50℃ Standard |
| Base Frame | Heavy duty steel |
| Vibration Control | Dampers between engine/alternator and frame |
| Exhaust System | Industrial silencer with flexible bellow |
Electrical & Control
Electrical System
- Electric start system
- 24V Battery charger
- 12/24V Storage batteries included
- Brushless exciting method
Optional Features
- Customizable Options
- Automatic Transfer Switch (ATS)ABB/Schneider BreakersWater HeaterLub-oil Heater55℃ RadiatorFuel Level SensorWater-Fuel SeparatorDeepsea/DEIF/ComAP Controllers
Compliance & Quality
Certifications
CEISO 9001:2015ISO 12100:2010Machinery Directive 2006/42/ECCCS Certified
Applications
Versatile Applications
- Telecom Infrastructure
- Residential Buildings
- Hospitals & Banks
- Construction Sites
- Remote Industrial Operations
