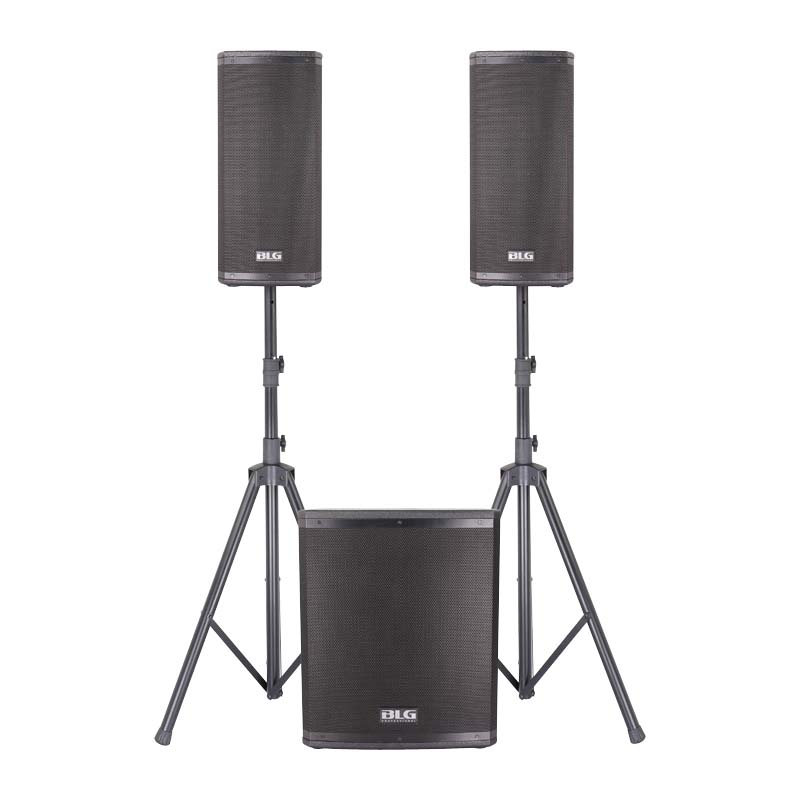

800W 3-Way Active Speaker System with Bluetooth
This 3-way active speaker system features an 800W Class-D amplifier for efficient power. Bluetooth connectivity allows wireless audio streaming from compatible devices.
Technical Specifications
Overview
Professional 3-Way Active Audio System
This 800W active speaker system is engineered for professional sound reinforcement, delivering a comprehensive audio experience through a dedicated subwoofer and dual satellite configuration. Equipped with a high-efficiency Class D amplifier and Bluetooth connectivity, it offers both powerful performance and versatile wireless streaming capabilities. The system is designed for demanding applications such as live performances and DJ setups, ensuring clarity and impact across the full frequency spectrum.
Performance Metrics
Total System Power
800 W
Total Power
125 dB
Max SPL
134 dB
Peak SPL
Frequency Response
- System: 40Hz - 18KHz (+/-3dB)
- Subwoofer: 40Hz - 180Hz (+/-3dB)
- Satellite: 180Hz - 18KHz (+/-3dB)
Technical Specifications
Amplifier Class
Class D
- Connectivity
- BluetoothXLR Input1/4" Jack InputRCA InputXLR Output
- Supported Voltage
- AC115V & AC230V
Component Details
System Components
| Component | Power | Driver Specs |
|---|---|---|
| Subwoofer | 500W | 15" Woofer, 3" VC |
| Satellite (x2) | 150W each | 8"x12" Woofer (1.8" VC), 3.2" Driver (1" throat/VC) |
Physical Dimensions
Physical Specs
| Unit | Dimensions (WxDxH) | Net Weight |
|---|---|---|
| Subwoofer | 450x545x545mm | 29 kg |
| Satellite | 260x310x545mm | 11 kg |
Logistics
Container Capacity
65 units
20' Container
140 units
40' Container
165 units
40' HC Container
