80 Series Brushless DC Motor
This brushless DC motor provides high torque up to 1.0Nm. It features a wide speed range, high efficiency, and long service life.
Technical Specifications
Overview
High-Performance 80 Series BLDC Motor
The 80 Series Brushless DC Motor is engineered for high-torque applications, delivering up to 1.0Nm of torque with exceptional efficiency and a long service life. Designed for versatility, it features a wide speed range and robust construction, making it ideal for robotics, automation, and precision motion control. This motor offers reliable performance with minimal maintenance requirements in demanding industrial environments.
Key Performance Metrics
Performance Highlights
24 V
Rated Voltage
3,000 rpm
Rated Speed
1 Nm
Max Rated Torque
4 P
Number of Poles
Electrical Specification
Model Comparison
| Model | Rated Power (W) | Rated Torque (Nm) | Rated Current (A) | Weight (kg) | Length (mm) |
|---|---|---|---|---|---|
| 80DMW85-2430 | 100 | 0.32 | 5.2 | 1.6 | 85 |
| 80DMW105-2430 | 200 | 0.65 | 10.5 | 2.2 | 105 |
| 80DMW125-2430 | 300 | 1 | 15 | 3 | 125 |
General Specification
Insulation Class
Class B
- Winding Type
- Star
- Hall Effect Angle
- 120 degree
- Shaft Run Out
- 0.025 mm
- Dielectric Strength
- 500VDC for one minute
- Ambient Temperature
- -20 to +40℃
Wire Diagram
Phase Wiring (18AWG)
- Phase U: Red
- Phase V: Yellow
- Phase W: Black
Hall Sensor Wiring (26AWG)
- +5V: Red
- Hall A: Blue
- Hall B: Green
- Hall C: White
- GND: Black

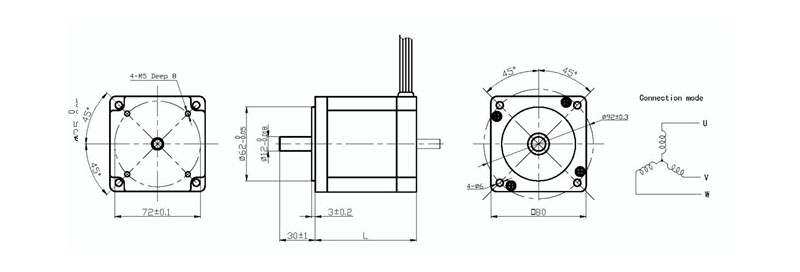

Physical Dimensions
Mechanical Constants
- Flange Size: 72±0.1 mm
- Body Diameter: Ø62 mm
- Shaft Diameter: Ø12 mm
- Mounting: 4-M5 Holes (8mm depth)
