Technical Specifications
Product Overview
High-Performance Well Screen Technology

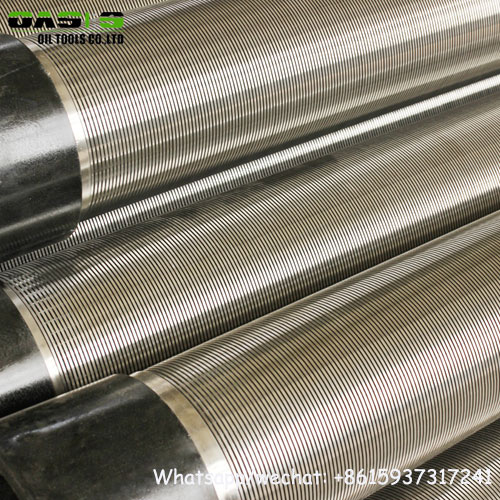

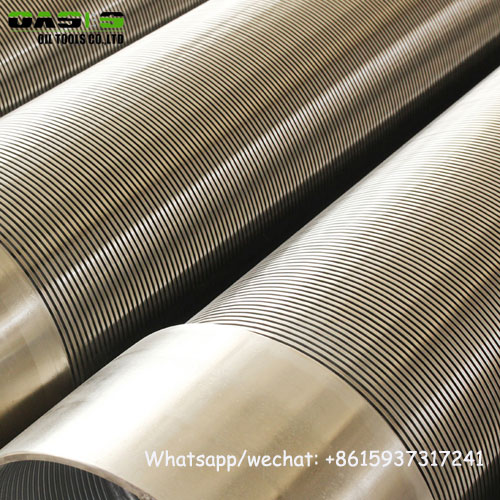

This 8 5/8 inch Johnson-type water well screen pipe is engineered for superior filtration efficiency and well development. Featuring a continuous slot, v-shaped wire design, it maximizes open area to allow water or oil to enter freely while effectively blocking sand and gravel. Constructed from high-grade stainless steel, this screen offers exceptional corrosion resistance and durability in demanding industrial and environmental applications.
Technical Specifications
Dimensions
8.625 inch
Nominal Diameter
6 meters
Max Length
End Connections
- Plain beveled ends for butt welding
- Threaded couplings
- Flanged
- Material Options
- Stainless Steel 304Stainless Steel 316Galvanized Low Carbon (LCG)
- Available Slot Sizes
- 0.10mm to 6.00mm (customizable on request)
Construction Details
Wedge Wire Specifications
| Dimension | Available Sizes (mm) |
|---|---|
| Width | 1.50, 1.80, 2.30, 3.00, 3.30, 3.70 |
| Height | 2.20, 2.50, 2.70, 3.60, 4.30, 4.70, 5.60, 6.30, 7.00 |
Support Rod Specifications
| Dimension | Available Sizes (mm) |
|---|---|
| Width | 2.30, 3.00, 3.30, 3.70 |
| Height | 2.70, 3.60, 4.70, 5.60, 6.30 |
| Round | 2.50 to 6.00 |
Logistics
Packaging Details
- Individually wrapped in bubble bags
- Secured in wooden cases
- Labeled with batch number, manufacture date, and handling instructions
