Technical Specifications
Overview
Reliable Power Solution

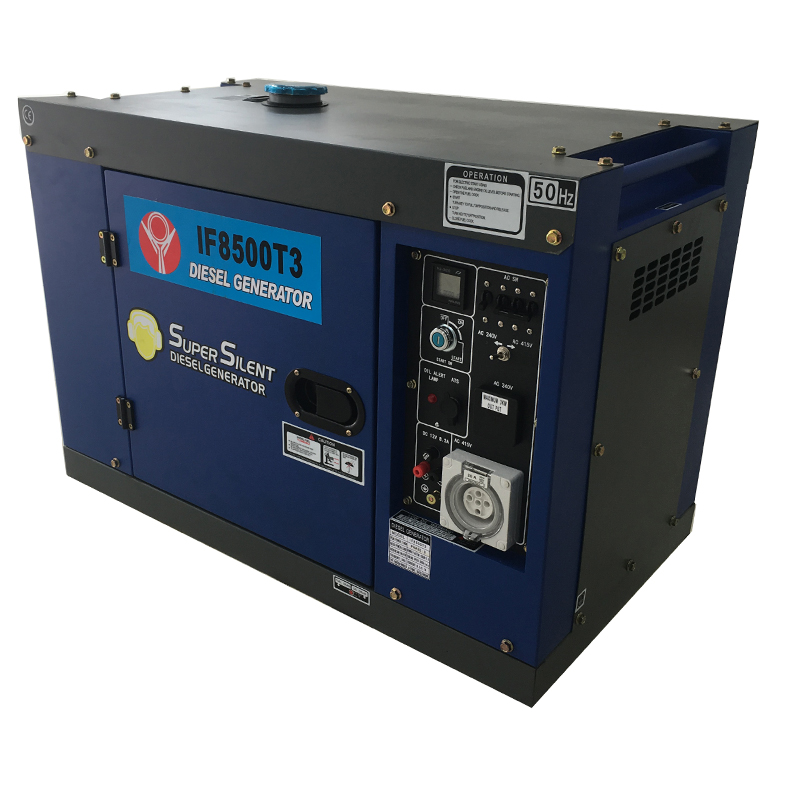

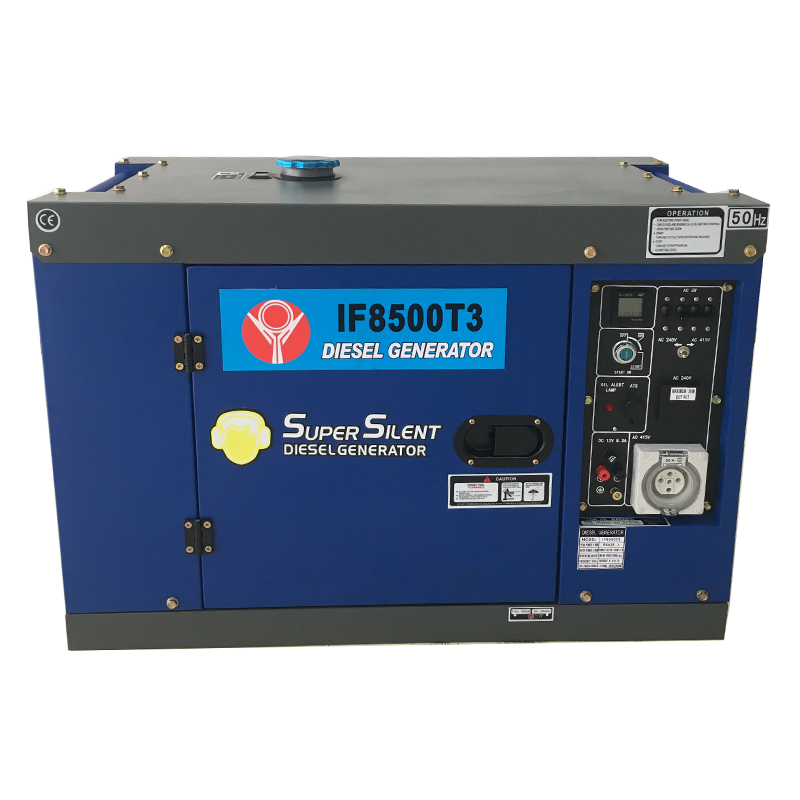

This 7kW silent diesel generator is designed for consistent and dependable power generation in residential, commercial, or industrial settings. Encased in a soundproof enclosure to minimize noise, it features a durable single-cylinder, 4-stroke air-cooled engine. With integrated safety features like air breaker protection and overload monitoring, it provides a safe and efficient backup power solution for essential tools and appliances.
Performance Metrics
Rated Output Power
7 kW
Rated Output (kW)
32 A
Rated Current
68 dB(A)
Noise Level (@7m)
Technical Specifications
Engine Specifications
| Feature | Specification |
|---|---|
| Engine Type | Single cylinder, 4-stroke, air-cooled |
| Displacement | 499 ml |
| Bore x Stroke | 92 x 75 mm |
| Rotation Speed | 3000/3600 rpm |
Electrical Characteristics
- Rated Voltage: 220V
- Rated Frequency: 50/60 Hz
- Phase: 1 Phase
- Power Factor: 1.0 cosφ
- DC Output: 12V 8.3A
Compliance & Safety
Safety Features
Air Breaker ProtectionDirect InjectionSoundproof Enclosure
- Certifications & Standards
- Australian StandardSAA Certified Switch
Operational Data
- Fuel System
- Diesel 0#, 10#, or 35#
- Fuel Tank Capacity
- 15 L
- Net Weight
- 170 kg
