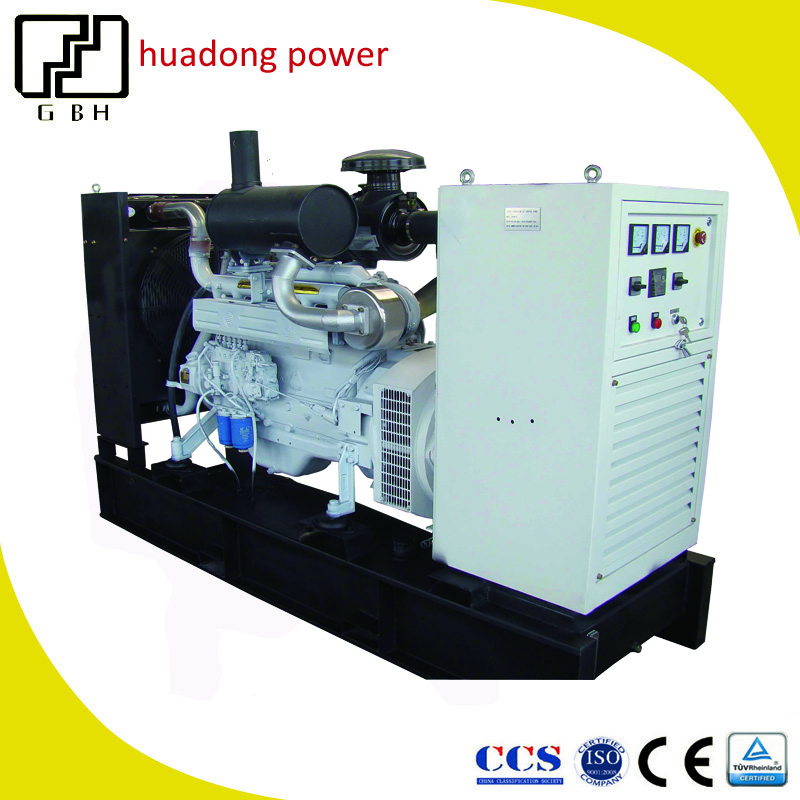

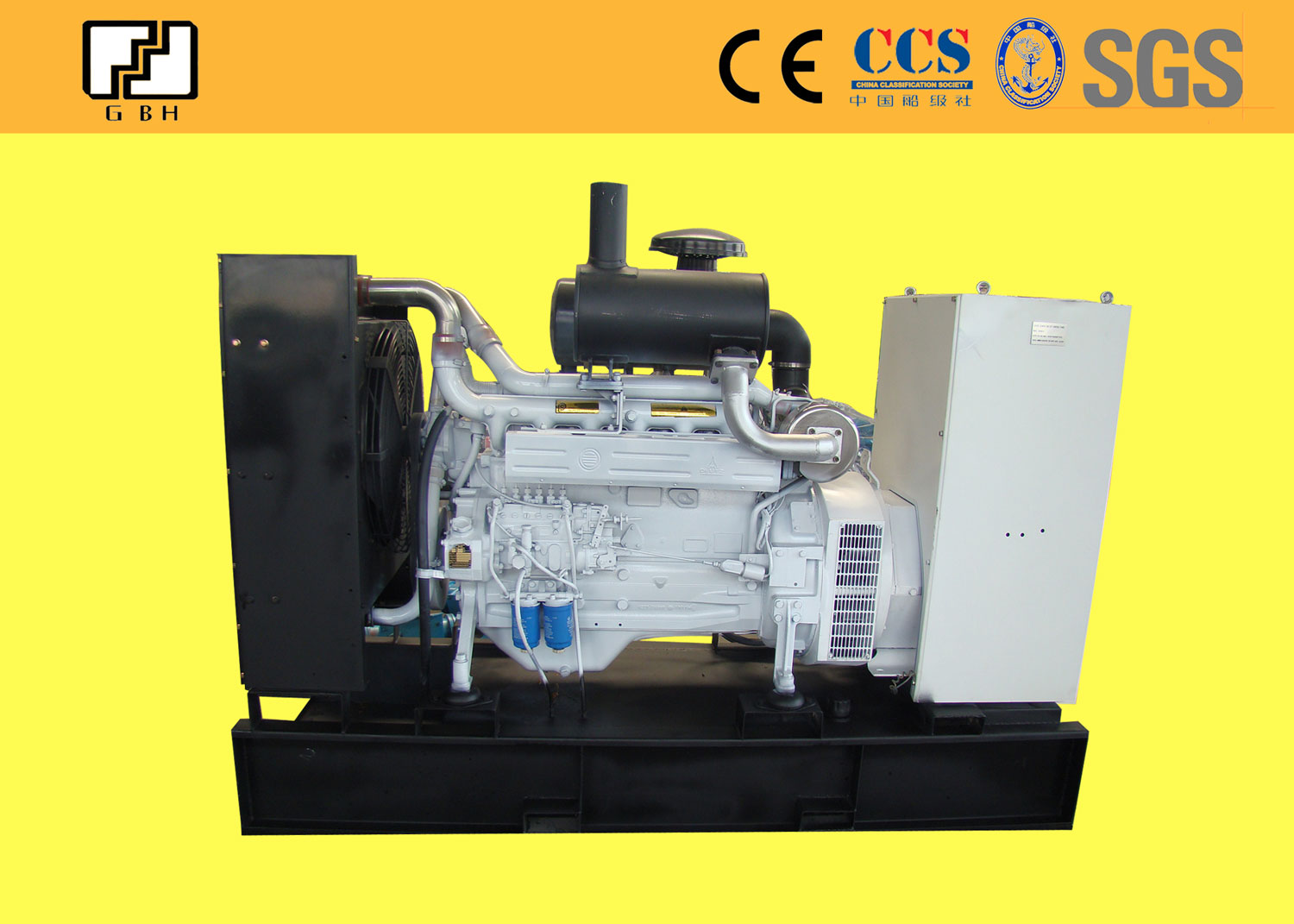

75kW Diesel Generator with Brushless Alternator
This diesel generator provides 75kW of power. It features a brand new brushless alternator with IP21/22 protection and H insulation class.
Technical Specifications
Overview
Reliable 75kW Diesel Power Solution
This 75kW diesel generator set is engineered for high-performance power generation in industrial, commercial, and emergency backup applications. Featuring a robust brushless alternator and a heavy-duty steel base frame, it ensures stable electricity supply even in demanding environments. The system is designed for durability with integrated vibration dampers and a comprehensive cooling radiator suitable for both open and soundproof configurations.
Key Performance Metrics
Performance Highlights
75 kW
Rated Power
1,500 r/min
Engine Speed
8 hours
Fuel Autonomy
400 V
Rated Voltage
Engine Specifications
Engine Details
| Feature | Specification |
|---|---|
| Engine Type | Brand-new with CE certificate |
| Starting Method | Electric start (12V/24V options) |
| Filtration System | Air, Oil, and Fuel filters included |
| Cooling | Radiator (40°C for open / 50°C for soundproof) |
| Exhaust | Industrial silencer with flexible bellow |
Alternator & Electrical
Alternator & Electrical
- Brushless alternator technology
- Single bearing design
- IP21/22 Protection rating
- Class H insulation
- 24V Battery charger included
Model Comparison
Genset Series Specifications
| Model | Standby (kVA) | Rated Current (A) | Dimensions (LxWxH mm) |
|---|---|---|---|
| HRC-20CF | 27.5 | 36 | 1800*840*1250 |
| HRC-30CF | 41.25 | 54 | 1800*840*1280 |
| HRC-40CF | 55 | 72 | 1850*750*1350 |
| HRC-50CF | 68.75 | 90 | 1850*750*1350 |
Optional Features
- Customization Options
- Automatic Transfer Switch (ATS)ABB/Schneider BreakersWater/Lub-oil HeatersFuel Level SensorDeepsea/ComAP ControllersWater-Fuel Separator
Quality & Compliance
Certifications
CE CertifiedISO 9001:2015CCS Type ApprovalMachinery Directive 2006/42/EC
Applications
Typical Applications
- Telecommunications base stations
- Residential and commercial buildings
- Hospitals and medical facilities
- Construction sites and stone crushers
- Banking and financial institutions
