Technical Specifications
Overview
High-Capacity Solar Pumping Solution

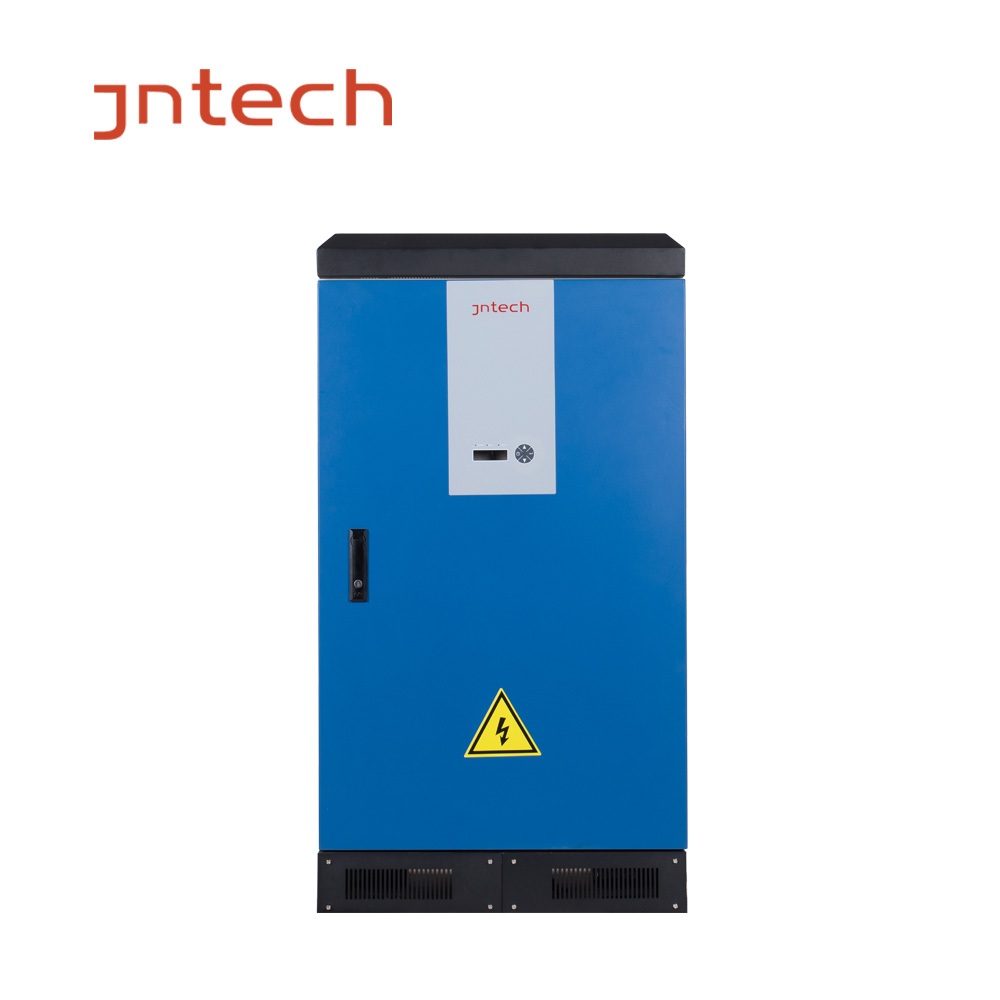

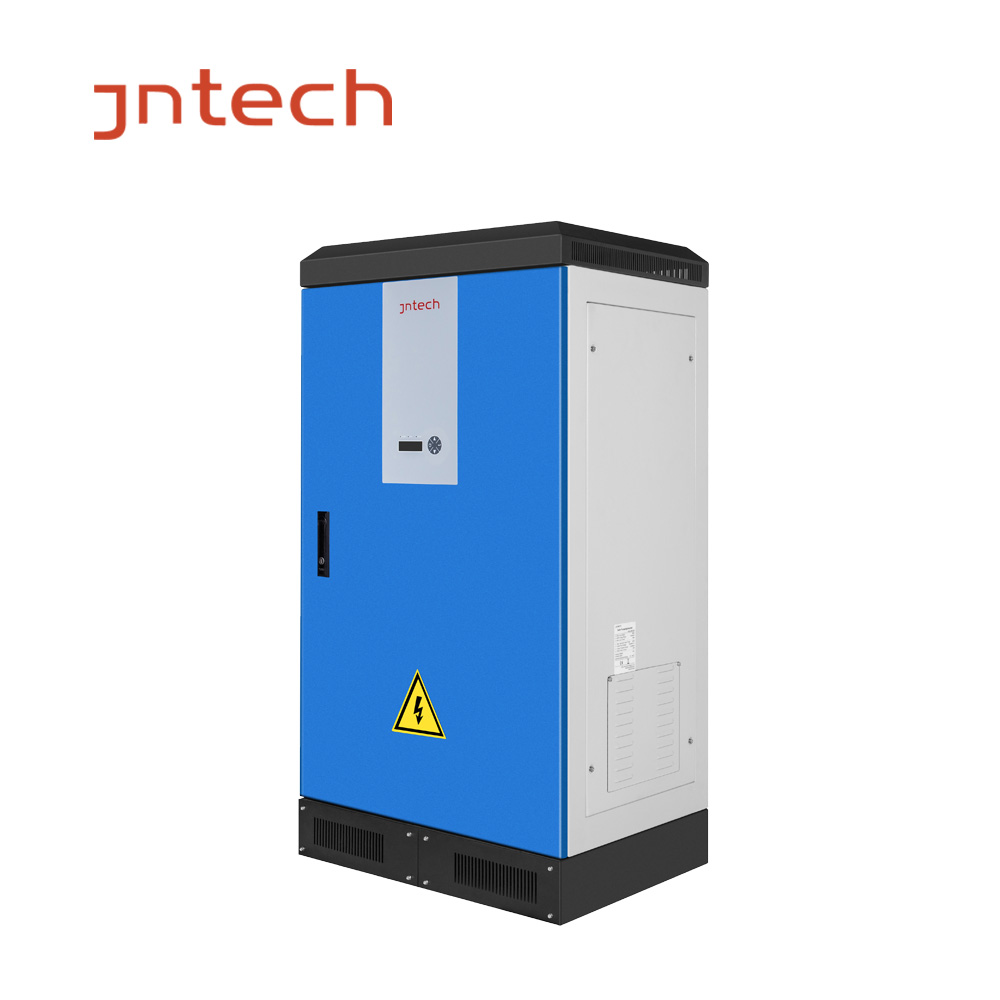

This 3-phase solar water pump inverter is engineered for large-scale agricultural irrigation and municipal water supply systems. It features advanced dynamic MPPT technology with over 99% efficiency and a hybrid design that allows for seamless integration with utility grids or diesel generators. Designed for reliability, it offers comprehensive system protection and fully automatic operation to ensure a consistent 24-hour water supply.
Performance Metrics
Key Performance Metrics
99 %
MPPT Efficiency
880 V
Max PV Input
132 kW
Max Output Power
Technical Specifications
Model Comparison
| Model | Output Power | Output Current |
|---|---|---|
| JNP75KH | 75kW | 142A |
| JNP90KH | 90kW | 171A |
| JNP110KH | 110kW | 209A |
| JNP132KH | 132kW | 251A |
- MPPT Voltage Range
- 460-850V
- Output Voltage
- 380-460V, Three Phase
Features & Operation
Core Features
- Advanced dynamic MPPT function (>99% efficiency)
- Hybrid input support (Solar + Utility/Diesel Generator)
- Automatic energy switching and solar priority
- Soft start and soft stop control
- One-key start operation
- Advanced IGBT power module with integrated AC filter
Protection & Environment
IP Rating
IP21
- System Protections
- UndervoltageOverloadOvervoltageOvercurrentGrid Phase LossPump Dry RunShort CircuitOverheating
- Operating Temperature
- -25 to +50℃ (derating required above 50℃)
Connectivity & Interface
- Communication Interfaces
- RS485GPRSApp Remote Monitoring
- Display Interface
- LCD
Compliance
- Management Standards
- ISO 9001 (Quality)ISO 14001 (Environmental)ISO 45001 (Health & Safety)TÜV Rheinland Certified
