75KVA Diesel Generator
This 75KVA diesel generator delivers reliable power for various applications. It features a sturdy enclosure, intuitive control panel, and compliance with industry standards.
Technical Specifications
Overview
Reliable 75KVA Power Solution
This 75KVA diesel generator is a robust power solution designed for high-performance reliability across industrial, commercial, and emergency backup applications. Featuring a water-cooled multi-cylinder engine, it provides stable and consistent power delivery even under demanding load conditions. The unit is built with a focus on durability, ease of maintenance, and compliance with international quality standards.
Performance Metrics
Key Performance Metrics
75 KVA
Rated Power
4
Engine Cylinders
50 Hz
Frequency Options
Engine Specifications
Displacement Range
- 2.5L
- 2.7L
- 3.6L
- 3.8L
- 4.8L

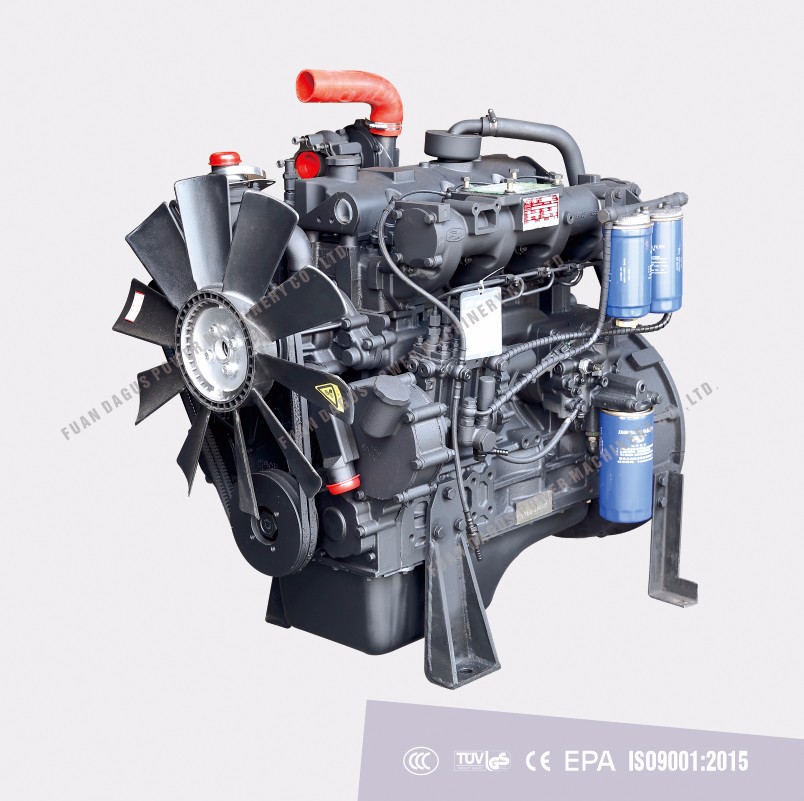

- Engine Type
- Multi-cylinder small diameter water-cooled diesel engine
Electrical Configuration
- Available Voltages
- 240/415V220/380V127/220V
- Frequency Support
- 50Hz60Hz
Physical Characteristics

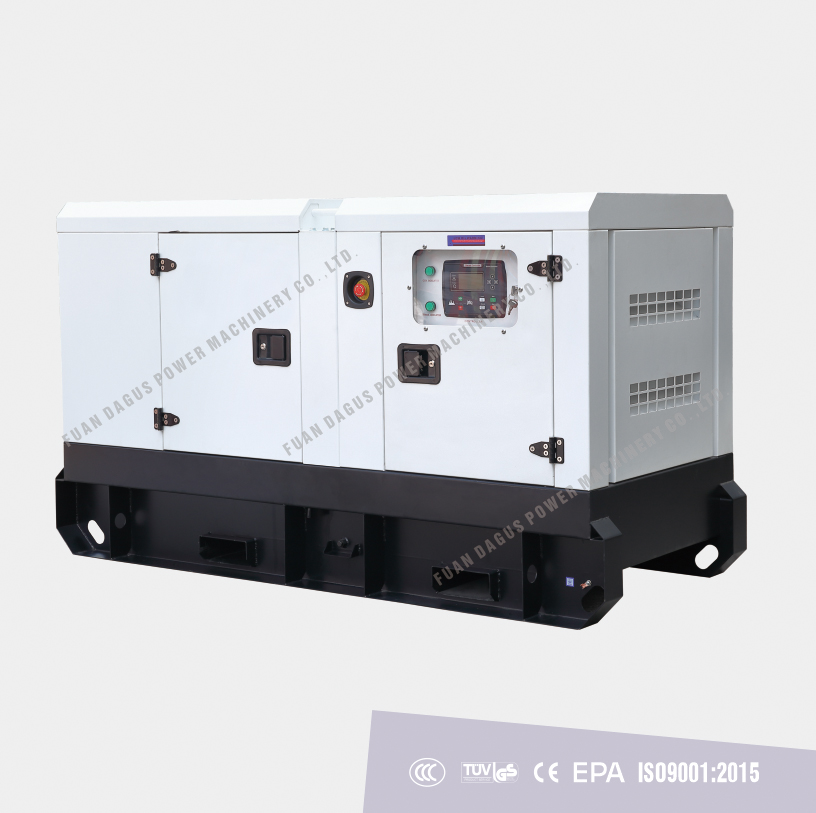

Enclosure Features
- Noise reduction technology
- Weather protection
- Sturdy canopy design
- Efficient cooling system
- Max Canopy Dimensions (L*W*H)
- 2730 x 1130 x 1550 mm
- Maximum Canopy Weight
- 1540 kg
Compliance & Standards
Certifications
TUVGSCEEPAISO9001:2015
- Regulatory Standards
- GB/T2820ISO3046ISO8528
Operational Conditions
Reference Conditions
- Pressure: 1,000mbar
- Temperature: 40°C
- Relative Humidity: 30%
Control & Monitoring
- Control Interface
- Intuitive control panel for monitoring and operation
