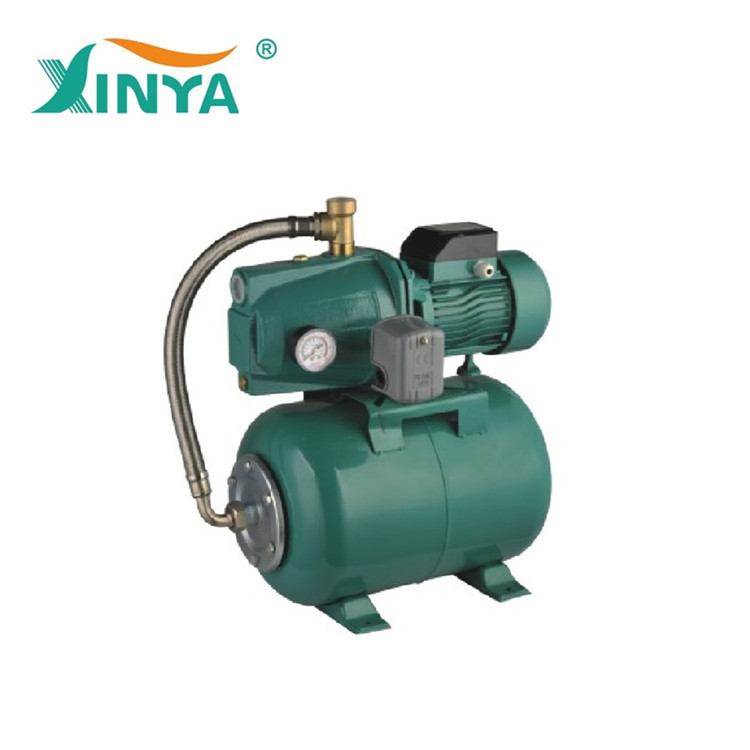

750W Automatic Water Booster System with Tank
This automatic booster system features a water pump, membrane tank, pressure gauge, and pressure switch. It provides suitable mains water pressure for modern domestic appliances and industrial applications, ensuring enough water to supply all user outlets.
Technical Specifications
Product Overview
High-Efficiency Automatic Booster System
This 750W automatic water booster system provides reliable, consistent water pressure for a variety of domestic and light industrial applications. Featuring a robust jet pump, a pre-charged membrane tank, a pressure gauge, and an automated pressure switch, the unit is engineered for seamless operation. Designed for durability, the system includes a non-toxic rubber membrane and is ideal for maintaining steady flow at all user outlets.
Technical Specifications
Motor Power
750 W
Power
1 HP
Horsepower
Performance Metrics
60 L/min
Max Flow Rate
40 m
Max Head
8 bar
Max Working Pressure
Construction Materials
- Pump Body: Aluminium
- Impeller: Aluminium
- Pressure Vessel Membrane: Non-toxic rubber
- Voltage Options
- 220V/50HZ110V/60HZ
Operational Limits
Temperature and Environment
- Max Fluid Temperature: 40°C
- Max Environment Temperature: 40°C
- Protection Class: IP43
- Conveying Medium: Clean water
Compliance and Standards
- Certifications
- CETUVRoHSGSISO 9001
