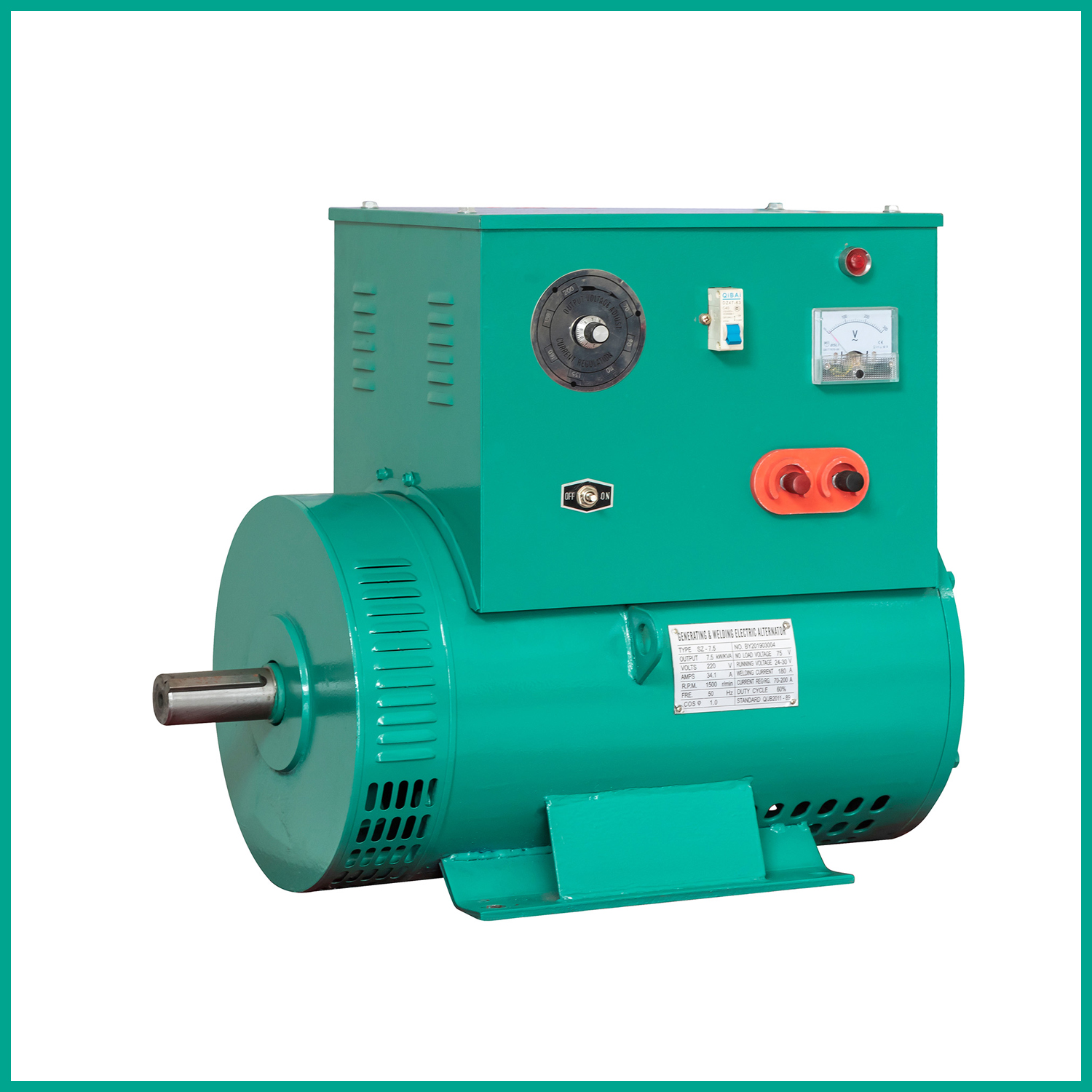

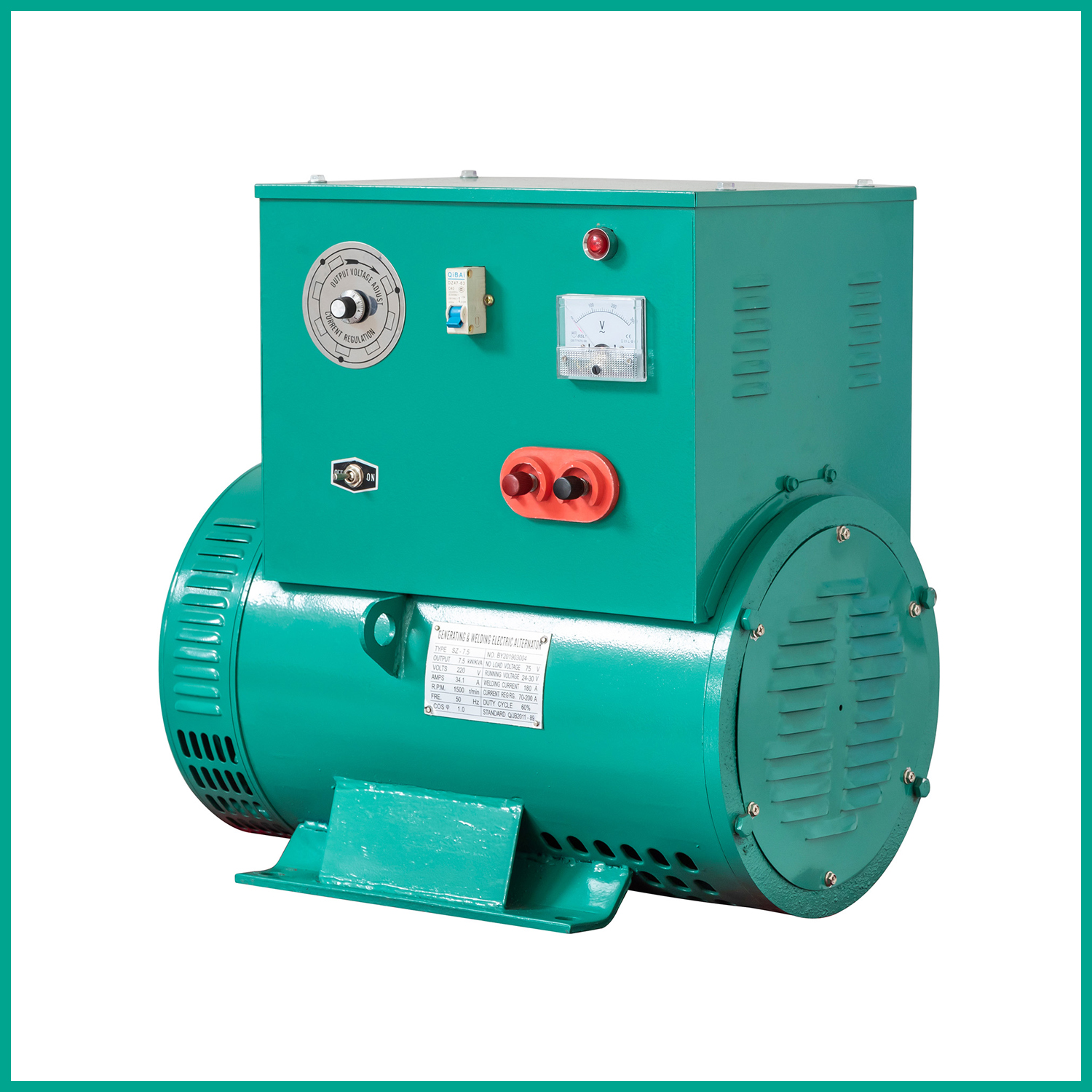

7.5 kW Electric Alternator for Power Generation and Welding
This electric alternator provides a 7.5 kW output for power generation and welding tasks. It operates at 220V and 1500 RPM, delivering 34.1A for generating and 180A for welding.
Technical Specifications
Product Overview
Versatile Power and Welding Solution
The SZ-7.5 series is a dual-function electric alternator designed to provide both reliable electrical power and high-performance welding capabilities. Built for industrial and construction environments, this unit delivers a stable output of 7.5 kW/kVA. It features advanced current regulation and a robust design, making it an ideal choice for on-site power needs requiring consistent performance and durability.
General Specifications
- Model
- SZ-7.5
- Standard
- Q/JB2011-80
Electrical Output
Performance Metrics
7.5 kW/kVA
Power Output
1,500 RPM
Speed
60 %
Duty Cycle
1 COSφ
Power Factor
Generating Mode
| Parameter | Value |
|---|---|
| Voltage | 220 V |
| Current | 34.1 A |
| No-load Voltage | 75 V |
| Frequency | 50 Hz |
Welding Specifications
Welding Performance
| Feature | Specification |
|---|---|
| Welding Current | 180 A |
| Running Voltage | 24-30 V |
| Regulation Range | 70-200 A |
