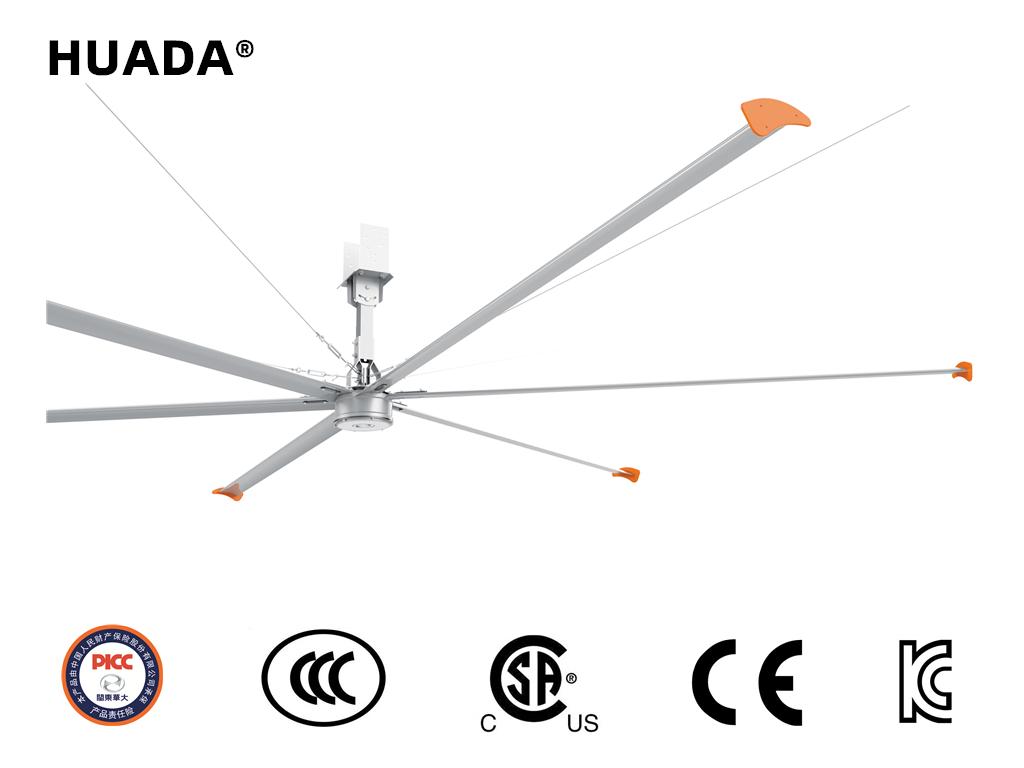

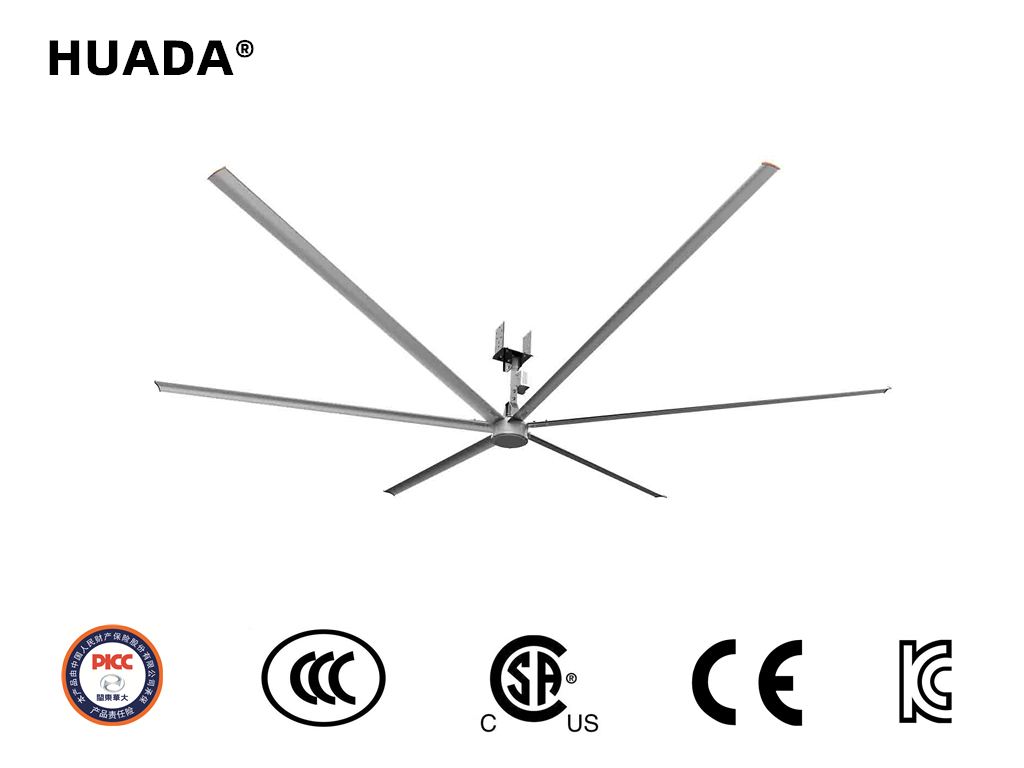

7.3m Industrial HVLS Ceiling Fan for Air Circulation
This 7.3m industrial HVLS ceiling fan provides efficient air circulation in large spaces. Its design ensures consistent temperature distribution and improved air quality for a comfortable environment.
Technical Specifications
Product Overview
High-Efficiency Industrial Air Circulation

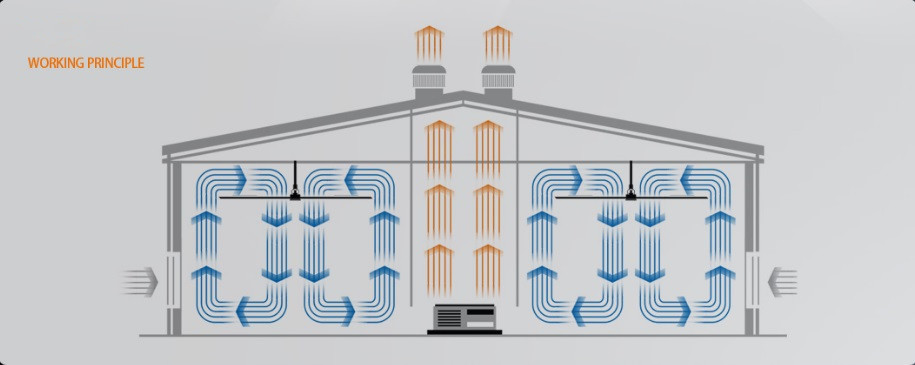

This 7.3m Industrial HVLS Ceiling Fan is a smart permanent magnet solution designed to significantly improve working environment comfort. Utilizing a self-designed variable frequency speed control and a high-efficiency external rotor motor, it delivers large-scale air circulation with low noise and energy consumption. It is ideal for industrial plants, logistics warehousing, and large public spaces, creating a natural breeze effect that contributes to overall personnel cooling and air mixing.
Technical Performance
Key Performance Metrics
7.3 m
Maximum Diameter
15,000 m3/min
Max Air Volume
38 dB
Noise Level
1.5 kW
Max Power
HDS Series Model Comparison
| Model | Diameter (m) | Power (kW) | Air Volume (m3/min) | Speed (rpm) |
|---|---|---|---|---|
| HDS-3 | 3 | 0.37 | 4,000 | 120 |
| HDS-4.3 | 4.3 | 0.75 | 7,000 | 90 |
| HDS-5.5 | 5.5 | 1.1 | 11,000 | 70 |
| HDS-6.7 | 6.7 | 1.1 | 12,000 | 55 |
| HDS-7.3 | 7.3 | 1.5 | 15,000 | 50 |
Electrical Specifications
- Operating Voltage
- 220-240V / 380-460V
- Frequency
- 50/60 Hz
Design & Construction
Ingress Protection
IP66

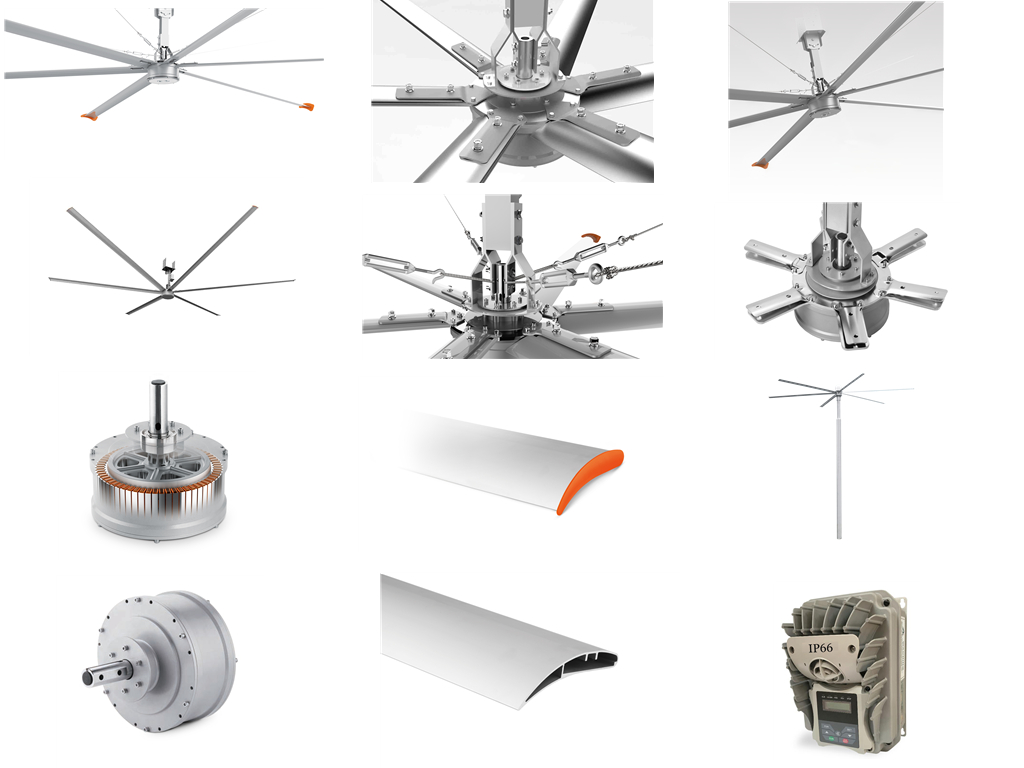

- Motor Technology
- Permanent magnet external rotor motor drive
- Number of Blades
- 5 or 6 pieces
- Integrated Safety Systems
- Overvoltage ProtectionUndervoltage ProtectionOverload ProtectionPhase Loss ProtectionCollision ProtectionOverheating ProtectionLightning Protection

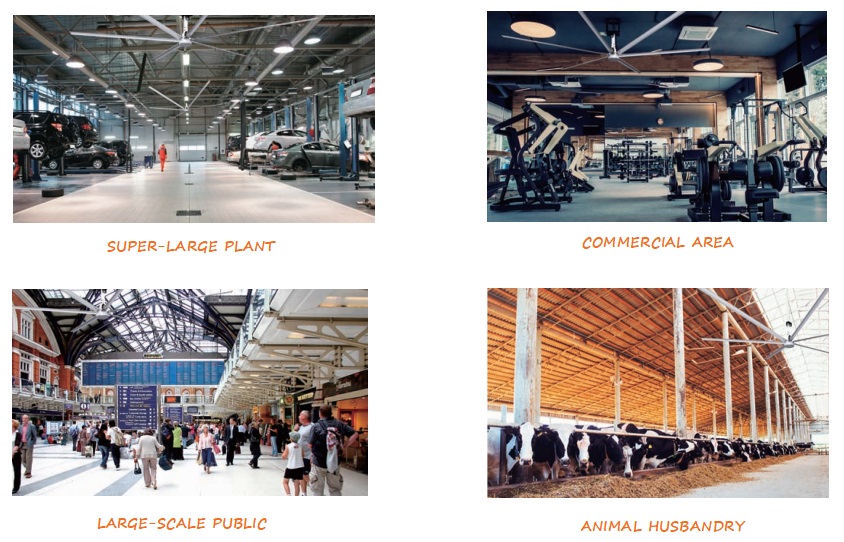

Applications
Recommended Applications
- Industrial Plants & Factories
- Logistics & Warehousing
- Exhibition Halls
- Physical Education Halls & Gyms
- Public Waiting Rooms & Stations
- Animal Husbandry (Cattle Barns)
Compliance & Certification
- Product Certifications
- CECSACCCKCISO 9001
