72V 1300W 4" Submersible Solar Water Pump with PPO Impeller
This 72V 1300W submersible pump is designed for use in solar energy systems. It features a 4-inch diameter and a PPO plastic impeller.
Technical Specifications
Product Overview
High-Efficiency Submersible Solar Pump
This 4-inch submersible solar pump is engineered for reliable, pollution-free water extraction in off-grid environments. Equipped with a durable PPO impeller and a 72V 1300W motor, it achieves efficiency levels exceeding 85%. The integrated controller provides advanced protection against common operational hazards like over-voltage, overload, and dry-running, ensuring long-term performance and easy maintenance.
Technical Specifications

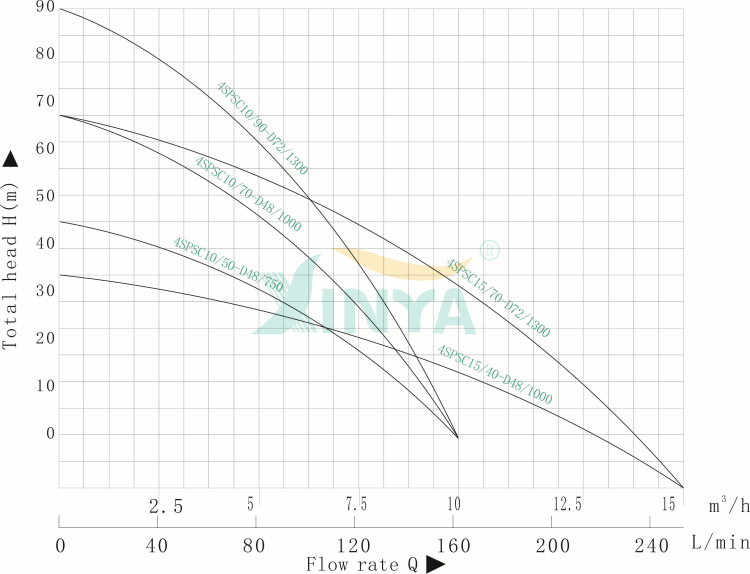

Performance Metrics
15 m³/h
Max Flow Rate
70 m
Max Head
1,300 W
Power Rating
72 V
Voltage
Technical Data
| Property | Specification |
|---|---|
| Pump Diameter | 4 inch |
| Impeller Material | PPO |
| Outlet Size | 2 inch |
| Weight | 13.5 kg |
| Integrated Controller | Yes (MPPT) |
Features & Safety
Key Advantages
- Maintenance-free design
- Automatic water level recovery
- High-efficiency motor
- Corrosion-resistant construction
- Suitable for renewable energy integration
- System Protections
- Under-voltage ProtectionOver-voltage ProtectionOverload ProtectionOverflow ProtectionDry-running Protection

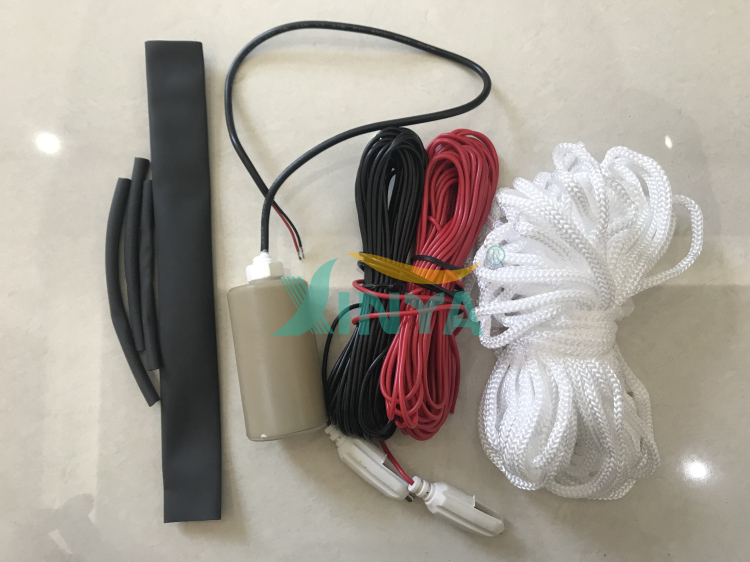

Included Accessories
Set Accessories
- MPPT Controller
- Water level sensor
- Rope
- Cable connectors
- Weatherproofing heat-shrink
