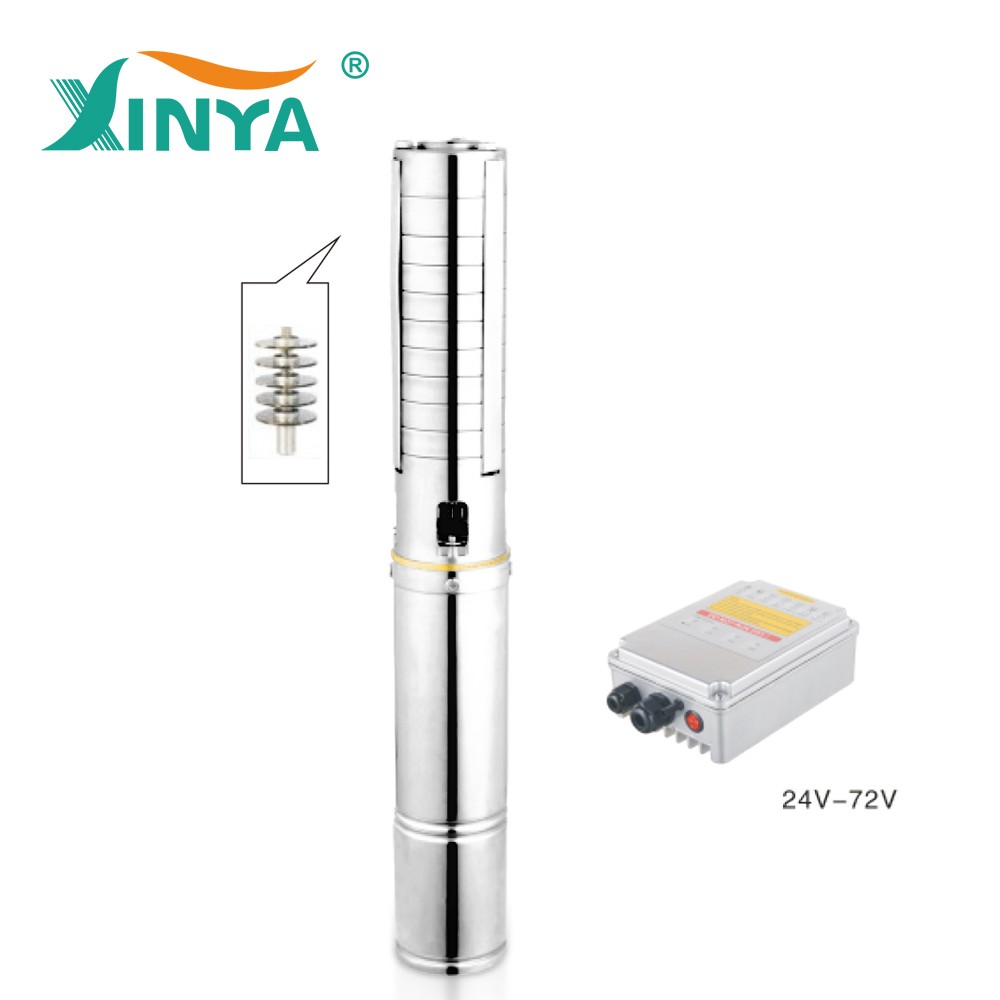

72V 1300W 4" Stainless Steel Solar Water Pump
This 72V 1300W solar pump features a stainless steel impeller and a 4-inch diameter. It is designed for applications requiring solar-powered water pumping.
Technical Specifications
Product Overview
High-Efficiency Solar Water Pump
This 4-inch submersible solar water pump is engineered for high-lift, noiseless, and pollution-free water extraction. It features a durable stainless steel impeller and robust casing to ensure long-term reliability and resistance to corrosion. Equipped with an advanced intelligent controller, the system provides comprehensive protection against over-voltage, under-voltage, overload, and waterless conditions, ensuring safe, maintenance-free operation for irrigation and domestic needs.
Technical Specifications
Rated Power
1,300 W
Power
- Model
- 4SPSC15/70-D72/1300
- Operating Voltage
- 72 V
- Pump Diameter
- 4 inch
- Maximum Flow
- 15 m³/h
- Maximum Head
- 70 m
- Outlet Diameter
- 2 inch
- Weight
- 14 kg
Features
Material Composition
- Stainless steel pump casing
- Stainless steel impeller
- Stainless steel shaft core
- Stainless steel coupling
- Copper alloy connecting base
- Protection Systems
- Under-voltage protectionOver-voltage protectionOverflow protectionOverload protectionWaterless protection
- MPPT Controller Included
- Yes
Operating Conditions
Operating Environment
| Parameter | Specification |
|---|---|
| Max Fluid Temperature | +40°C |
| PH Value | 5 - 10 |
| Max Particle Size | 1 mm |
| Max Sand Content | 3‰ |
