Technical Specifications
Product Overview

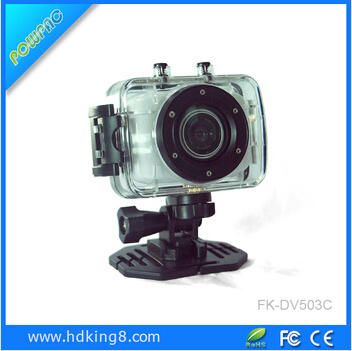

Versatile 720p HD Action Camera
This compact and rugged action camera is designed for high-definition video recording in diverse environments, from motocross tracks to underwater depths. Featuring a 2.0-inch touch screen for intuitive navigation, it eliminates the need for complex button sequences. With its IPX8 waterproof rating and a suite of versatile mounts, it is an ideal solution for B2B buyers looking for a reliable, entry-level sports DV for outdoor and aquatic activities.
Imaging & Video
Video Performance
| Mode | Resolution | Frame Rate |
|---|---|---|
| 720P HD | 1280 x 720 | 23-31 fps |
| VGA | 640 x 480 | 49-63 fps |
Optical Specifications
120 °
Wide Angle Lens
4 x
Digital Zoom
1.3 MP
CMOS Sensor
Still Image Resolutions
- 5.0 Mega Pixels (2592 x 1944)
- 3.1 Mega Pixels (2048 x 1536)
- 1.3 Mega Pixels (1280 x 960)
Design & Durability
- Waterproof Rating
- IPX8 (Up to 20 meters underwater with case)
- Display
- 2.0-inch HD Touch Panel
Hardware & Storage
Hardware Components
- DSP: Sunplus / SPCA1628
- Sensor: OV9712 CMOS
- File Formats: JPEG (Image), AVI (Video)
- Connectivity & Storage

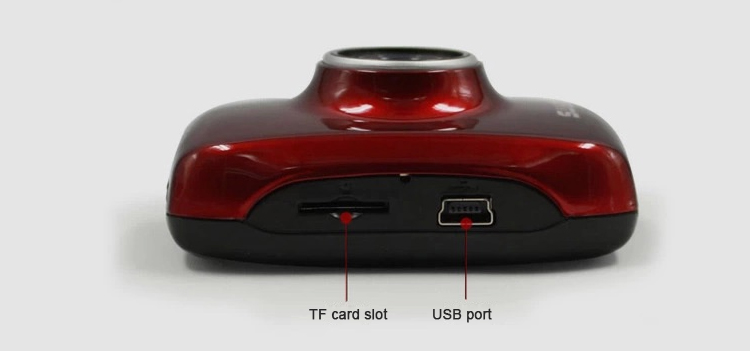

- USB PortTF Card SlotMicrophone Built-in

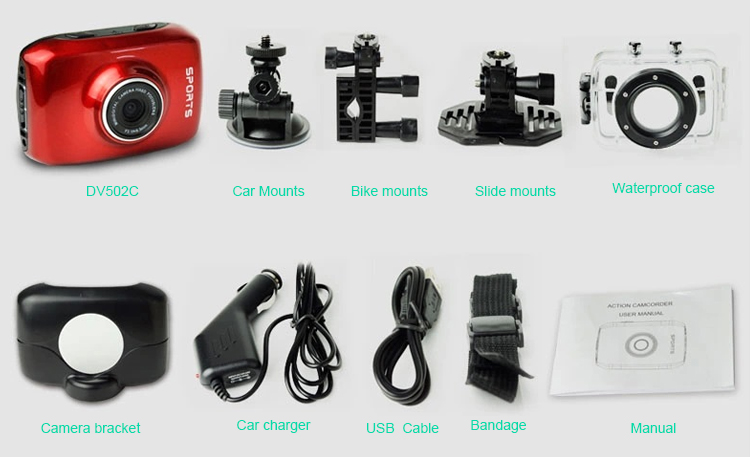

Accessories & Mounting
Standard Accessories
- USB Cable
- User Manual (English)
- Mounting Options
- Waterproof CaseHelmet MountHandlebar Seatpost MountSuction Cup MountShieldCar ChargerHelmet Belt
Certifications
Product Compliance
CEFCCRoHS
