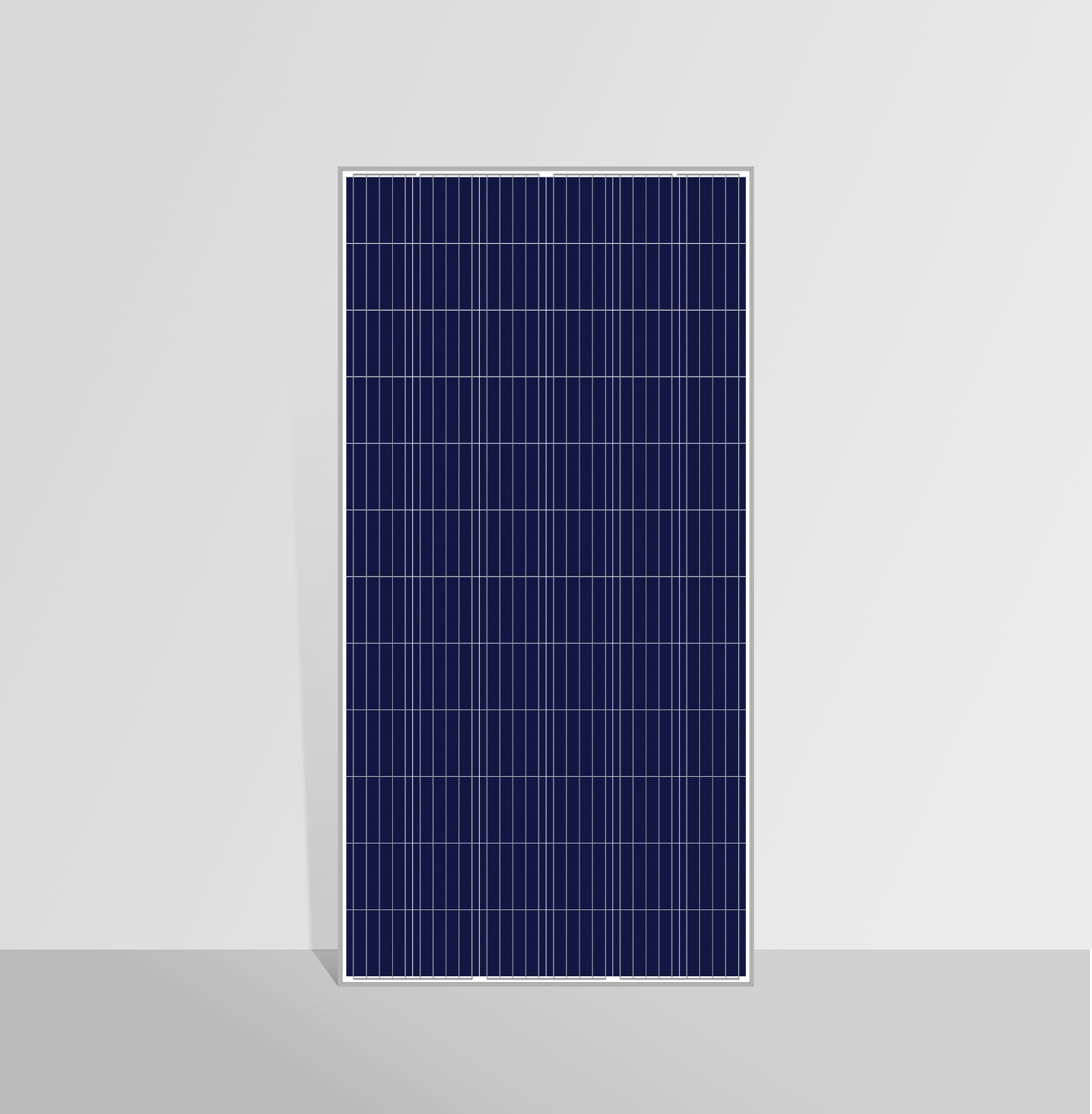

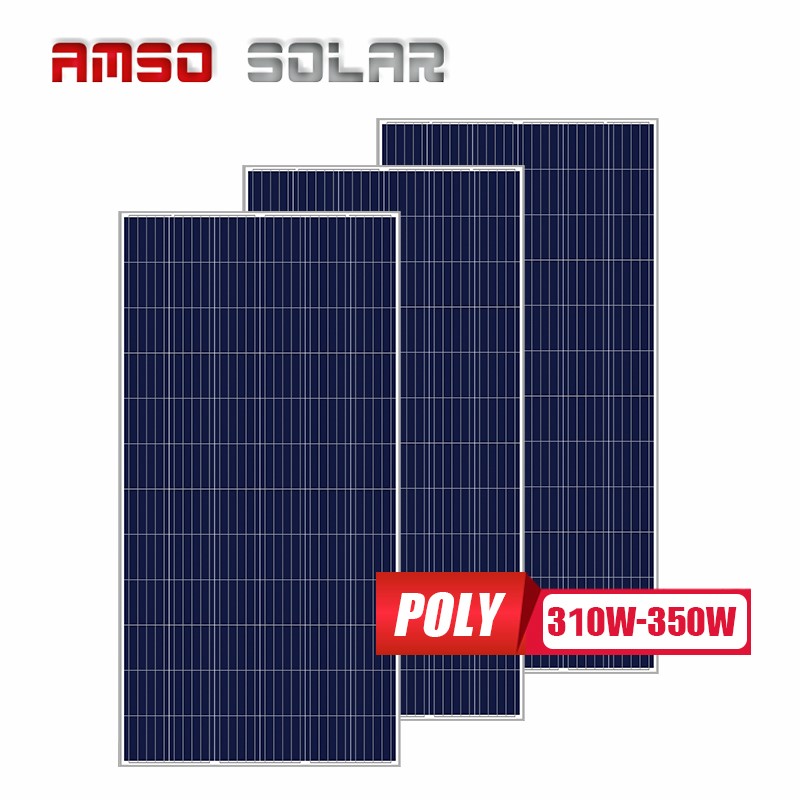

72-Cell Polycrystalline Solar Panel, 310W-350W
This polycrystalline solar panel features 72 solar cells and provides a power output of 310W to 350W. It is designed for durability and optimal performance in various environmental conditions.
Technical Specifications
Overview

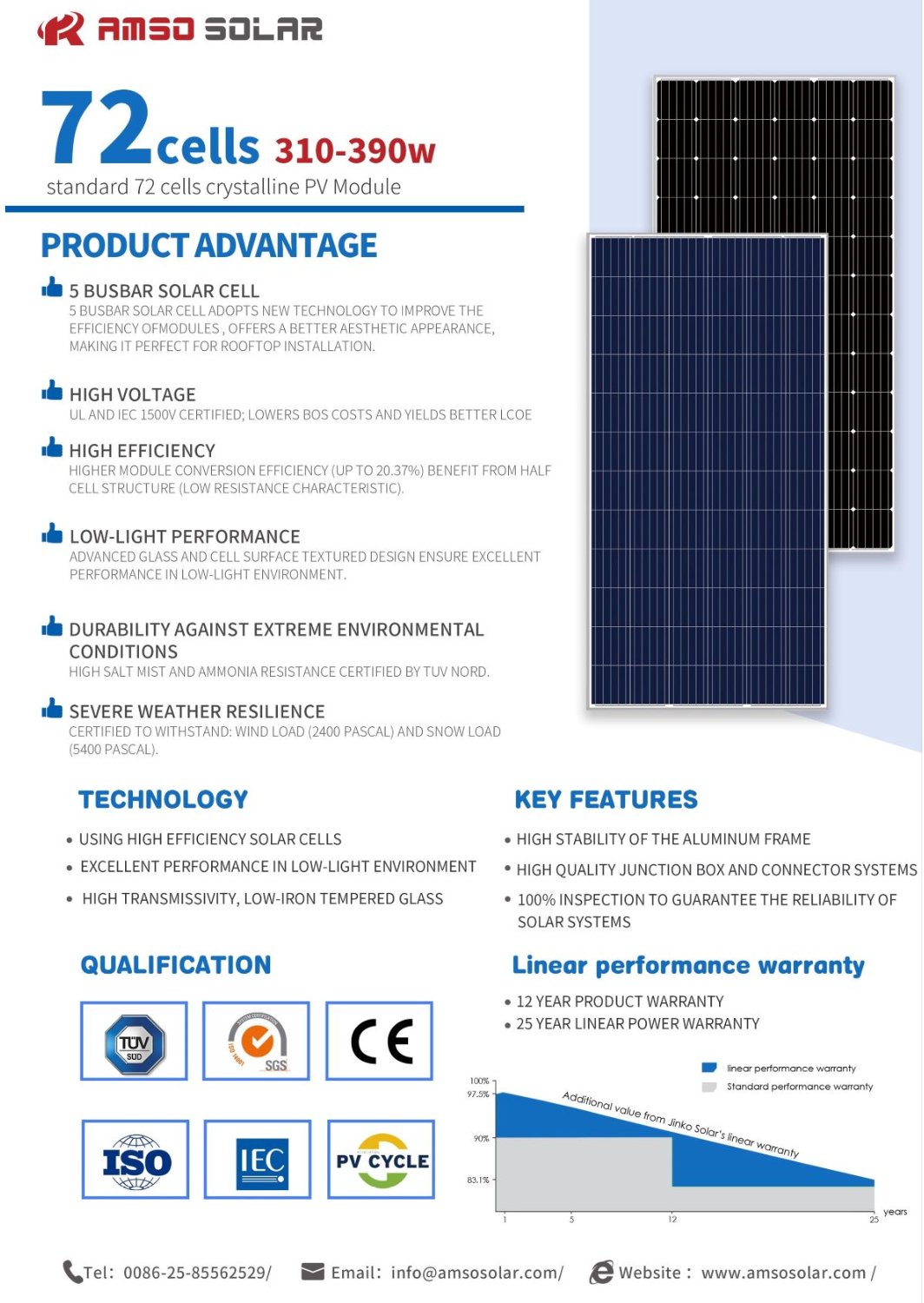

High-Efficiency 72-Cell Polycrystalline Solutions
These standard-sized 72-cell polycrystalline solar panels are designed for reliable energy conversion in residential, commercial, and industrial applications. Utilizing mature production techniques and 5-busbar technology, they offer a balance of high efficiency and aesthetic appeal suitable for rooftop installations. Engineered for durability, these modules are built to withstand extreme weather conditions while maintaining excellent performance in low-light environments.
Performance Highlights
Key Performance Metrics
350 W
Max Power Output
20.37 %
Max Module Efficiency
1,500 VDC
Max System Voltage

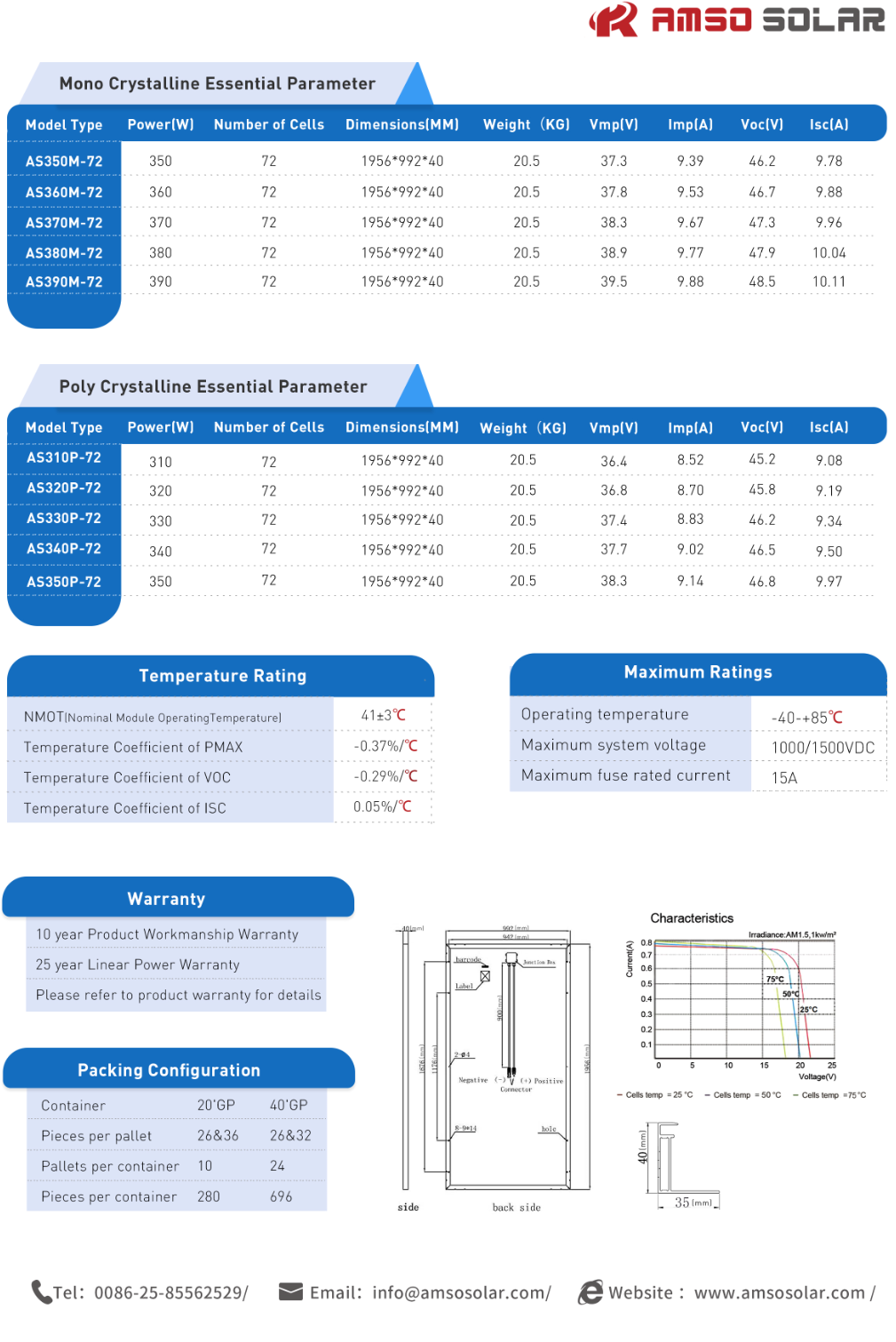

Technical Specifications
Polycrystalline Electrical Data (STC)
| Model | Power (W) | Vmp (V) | Imp (A) | Voc (V) |
|---|---|---|---|---|
| AS310P-72 | 310 | 36.4 | 8.52 | 45.2 |
| AS320P-72 | 320 | 36.8 | 8.7 | 45.8 |
| AS330P-72 | 330 | 37.4 | 8.83 | 46.2 |
| AS340P-72 | 340 | 37.7 | 9.02 | 46.5 |
| AS350P-72 | 350 | 38.3 | 9.14 | 46.8 |
Physical Characteristics
- Dimensions
- 1956 x 992 x 40 mm
- Weight
- 20.5 kg
- Number of Cells
- 72
Durability & Environment
Mechanical Load Capacity
- Wind Load: 2400 Pascal
- Snow Load: 5400 Pascal
- Operating Temperature Range
- -40 to +85°C
- Environmental Certifications
- Salt Mist ResistantAmmonia ResistanceTUV NORD CertifiedUL CertifiedIEC 1500V
Warranty
Warranty Coverage
- 12-Year Product Workmanship Warranty
- 25-Year Linear Power Warranty
Logistics
- 40'GP Container Configuration
- 696 pieces (24 pallets)
