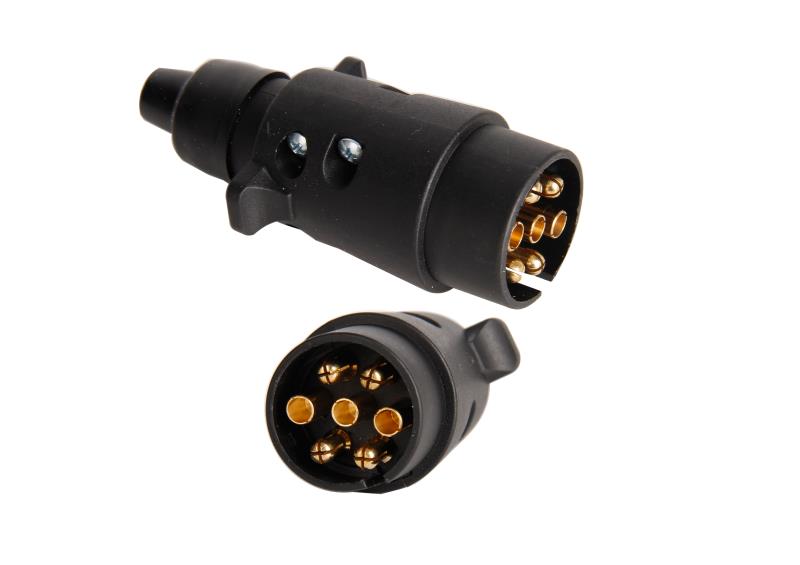

7-Pin Trailer Wiring Connector
This connector provides a dependable electrical connection between a vehicle and trailer. It allows for a wide selection of terminal options and can handle a maximum current of 25A with 2.5mm2 cores.
Technical Specifications
Product Overview
Professional 7-Pin Trailer Connector
This 7-pin trailer wiring connector is designed for reliable electrical connectivity in commercial vehicle applications. It supports standard 24V systems, ensuring consistent performance for essential lighting and auxiliary power functions. Built with durable, weather-resistant materials, this connector is engineered to withstand the rigors of towing and harsh environmental conditions.
Technical Standards
Pin Configuration Details

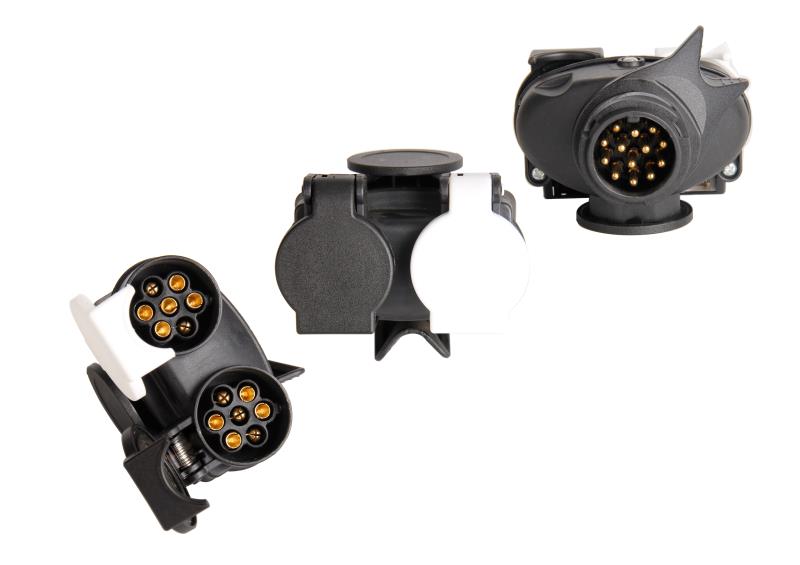

- Standard Type N connector
- Supplementary Type S connector
- White housing/insert for Type S identification
- Non-interchangeable contact layout
- Voltage System
- 24 V
- Compliance Standards
- ISO 1185 (Type N)ISO 3731 (Type S)
Performance & Durability
Supported Functions
Tail LightsBrake LightsTurn SignalsReverse LightsAuxiliary Power
Durability Features
- Weather-resistant construction
- Secure locking mechanism
- Spring-loaded dust cover
- Corrosion protection
