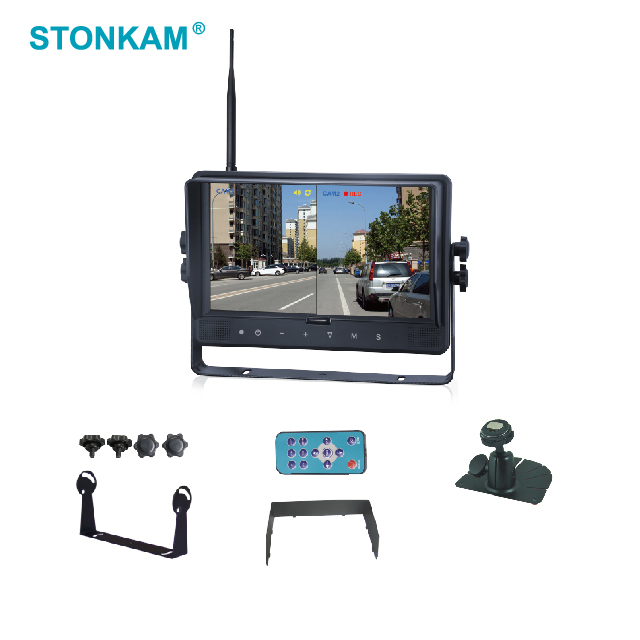

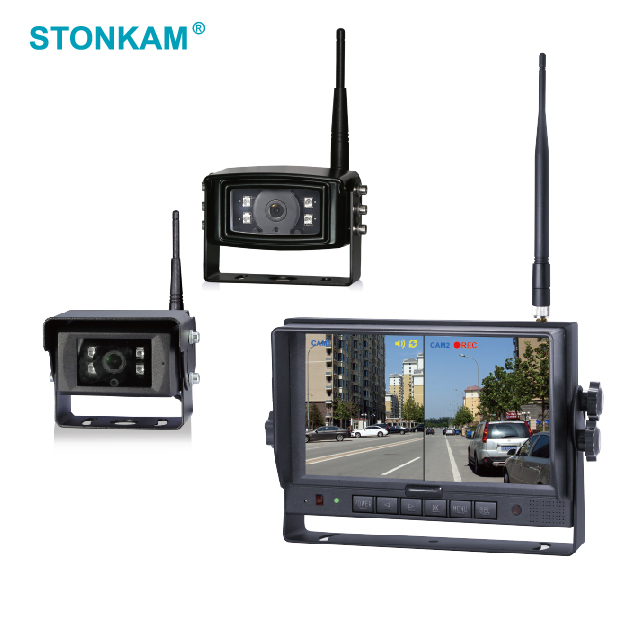

7-Inch 720P Wireless Backup Camera System
This 7-inch digital wireless backup camera system features a split-view monitor and IP69K cameras with IR night vision. It allows for easy viewing around the vehicle without the need for long cables, making it suitable for commercial vehicles like trucks and trailers.
Technical Specifications
Overview
Professional Wireless Monitoring System
This 7-inch digital wireless backup camera system is designed for commercial vehicles like trucks, harvesters, and trailers, providing a clear 720P view without the need for long cables. It features IP69K waterproof cameras with IR night vision and a split-view monitor that supports simultaneous recording on two channels. The system offers a reliable 984ft (300m) transmission range and flexible mounting options, including a magnetic base for easy installation.
Display Performance
Display Metrics
7 inch
Screen Size
600 cd/m²
Brightness
800 :1
Contrast Ratio
Monitor Technical Specifications
| Feature | Details |
|---|---|
| Resolution | 1024 x 3 (RGB) x 600 |
| Aspect Ratio | 16:9 |
| Viewing Angle | U:80/D:85, R/L:85 |
| System Format | PAL / NTSC |
| Storage | MicroSD Max 128G |
Camera & Imaging
Camera Sensor Details
| Specification | Value |
|---|---|
| Image Device | 1/4" CMOS |
| Effective Pixels | 1280 (H) x 720 (V) |
| Minimum Illumination | 0 Lux (IR Night Vision) |
| Scan Mode | Progressive Scanning |
| S/N Ratio | 101.6dB (a-weighted) |
Wireless Transmission
Wireless Technology
- Operating Frequency: 2401MHz - 2483MHz
- Spread Spectrum: DSSS
- Decompression Form: H.264
- Transmitting Speed: 12Mbps
- Latency: 200ms
- Wireless Range
- 300 m
Durability & Environment
Protection Rating
IP69K WaterproofDustproof
- Operating Temperature
- -20°C to +70°C
Operational Features
- Key Features
- Split ViewAuto PairingBuilt-in RecorderIR Night VisionAuto DimmingMagnetic Base SupportAudio Support
Power Requirements
- Operating Voltage
- DC 10-32V
- Monitor Power Consumption
- 8 W
