6x4E-GHR Rubber Lined Slurry Pump
This centrifugal slurry pump has a 4-inch discharge diameter and a 6-inch suction diameter. Its rubber liner makes it suitable for use in conditions such as mining, power plants, and dredging.
Technical Specifications
Overview
Heavy Duty Slurry Pump

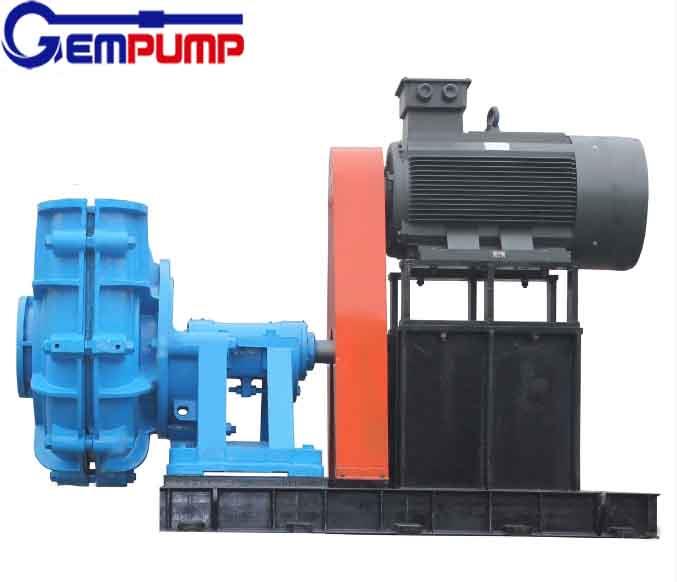

The 6x4E-GHR is a cantilever, horizontal centrifugal slurry pump engineered for demanding mining and industrial applications. It features excellent hydraulic performance, high efficiency, and a low wear rate, making it ideal for transporting abrasive and high-density slurries. With a versatile design that allows for multi-stage series operation and adjustable discharge positions, this pump ensures reliability and ease of maintenance in varied installations.
Technical Specifications
- Maximum Working Pressure
- 3.6 Mpa
- Available Seal Options
- Centrifugal SealMechanical SealPacking Seal
- Liner Material Options
- 27% Chrome White IronRubberUrethane
- Discharge Orientation
- Adjustable at 45-degree intervals (8 positions)
Performance Features
Performance Highlights
45 degrees
Discharge Interval
3.6 Mpa
Max Pressure
Design Advantages
- Cantilever horizontal design
- Impeller pumpout vanes to prevent recirculation
- External impeller adjustment bolt
- Expeller fitted as standard to reduce seal pressure
Ordering Information
Standard Lead Times
| Product Type | Lead Time (Working Days) |
|---|---|
| Slurry Pump | 7 |
| Water Pump | 15 |
- Minimum Order Quantity
- 1
- Supported Payment Methods
- T/TL/CWestern UnionPaypalTrade Assurance
