Technical Specifications
Overview
Intelligent Multi-Stage Charging

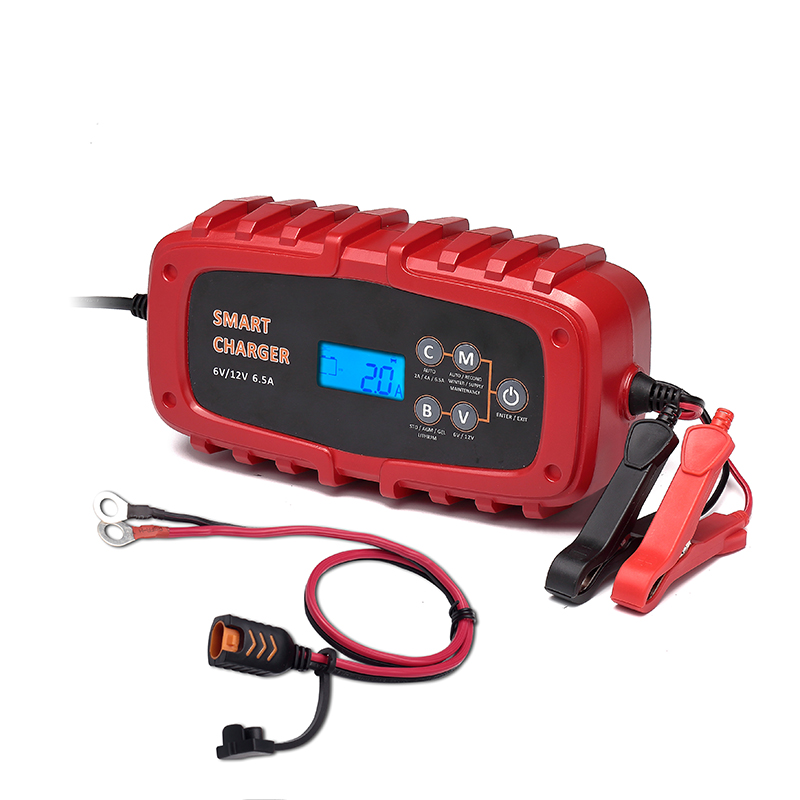

This microprocessor-controlled smart battery charger offers a comprehensive 9-step charging cycle designed to optimize battery health and longevity. It supports both 6V and 12V batteries, including lead-acid, AGM, GEL, and LiFePO4 types, with automatic voltage detection and adjustable current settings. Featuring a robust safety suite and a backlit LCD interface, it serves as an efficient tool for both charging and long-term maintenance of vehicles ranging from motorcycles to heavy-duty trucks.
Technical Specifications
Input Voltage
- AC 110V 60Hz
- AC 220V 50Hz
Charging Current
- Auto
- 2A
- 4A
- 6.5A
- Model
- RK6500
- Low Voltage Start-up
- 1.5 V
Performance Metrics
Maximum Charging Current
6.5 A
Max Current
Battery Compatibility & Safety
Safety Features
- Reverse Polarity
- Short Circuit
- Overcharge
- Overvoltage
- Over Temperature
- Spark Proof
Certifications
CEGSROHS
- Compatible Battery Types
- Lead-acidAGMGELLiFePO4
Operating Environment
Storage Environment
| Parameter | Range |
|---|---|
| Temperature | -30°C to +70°C |
| Humidity | 10% to 95% RH |
- Operating Temperature Range
- -15°C to +35°C
