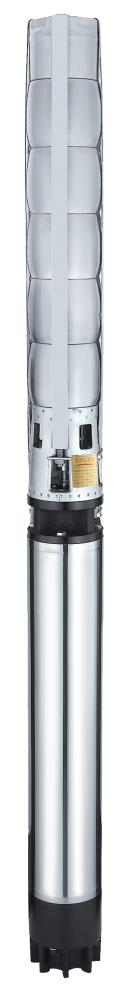

6SP Series Submersible Water Pump
This submersible pump is designed for underwater operation with a compact structure. Its small size and light weight make installation and maintenance easy, while providing safe and energy-saving operation.
Technical Specifications
Overview
6SP Series Submersible Water Pump
The 6SP series is a high-performance submersible pump engineered for demanding water processing applications, including industrial, civil, and domestic water supply. Constructed with durable stainless steel components, these pumps offer exceptional rust and wear resistance, making them ideal for environments with high sand content. Featuring a multi-stage design, they deliver efficient operation, high head capabilities, and long-lasting reliability.
Technical Specifications
- Maximum Fluid Temperature
- 150 °C
- Maximum Sand Content
- 0.25 %
- Minimum Well Diameter
- 6 inch
- Voltage
- 380-415V / 50Hz
- Motor Type
- Three-phaseRewindableFull oil-saturated
Construction Materials
Component Materials
| Component | Material |
|---|---|
| Delivery Casing / Check Valve | AISI 304 / AISI 316 |
| Suction Lantern / Stage Casing | AISI 304 / AISI 316 |
| Impeller | AISI 304 / AISI 316 |
| Shaft | AISI 304 / AISI 316 / C1045 |
| Motor External Casing | AISI 304 |
| Top Cover / Bottom Support | Cast Iron D20 UNI5007 / AISI 304 |
| Seal | NBR / CARBON-SIC / TC |
| Wear Ring | Rubber |
Compliance & Warranty
Standards and Compliance
NEMA DimensionsISO 2548 Curve Tolerance
- Warranty
- 1 Year
