Technical Specifications

Overview

Professional 6m Asphalt Paver

This full hydraulic road paver is engineered for high-precision asphalt construction and municipal maintenance. It features a Cummins turbocharged diesel engine for exceptional power, alongside micro-computer controls that provide an intuitive and efficient operation. With advanced digital automatic leveling technology, it ensures superior surface evenness suitable for high-grade road projects.

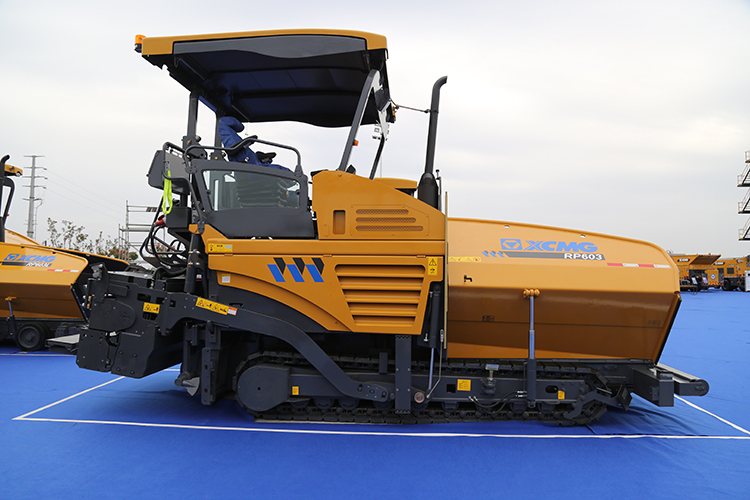

Full hydraulic road paver in operation, showing the screed and hopper system.

Performance Metrics

Operational Efficiency

6 m

Maximum Pave Width

400 t/h

Max Laydown Rate

14 t

Hopper Capacity

Technical Specifications

Feature	Value
Basic Paving Width	2.5 ~ 4.75 m
Max Layer Thickness	350 mm
Max Paving Speed	20 m/min
Max Travel Speed	3 km/h

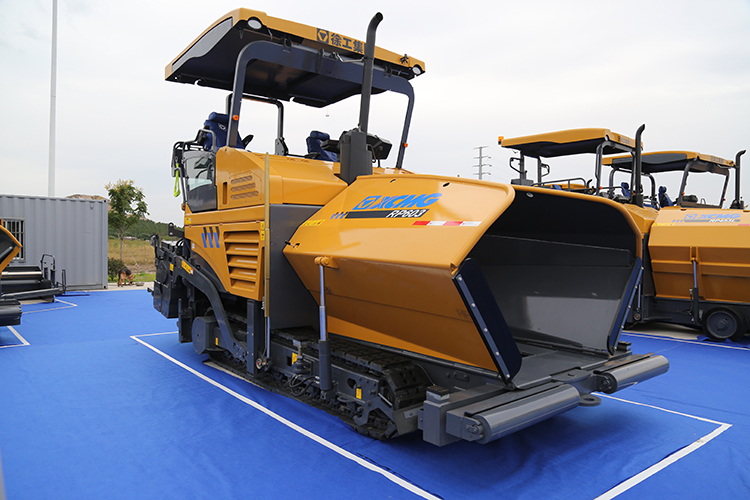

Front view of the paver machine on site — The paver is designed for high-efficiency laying in urban and municipal road projects.

Engine Details

Engine Specifications

Model: QSB6.7-C170
Rated Power: 129 kW
Rated Speed: 2200 rpm
Type: Turbocharged Diesel

Features

Key Systems: Full Hydraulic DriveMicro-computer ControlConstant Speed Automatic ControlDigital Automatic LevelingAutomatic Fault Diagnosis

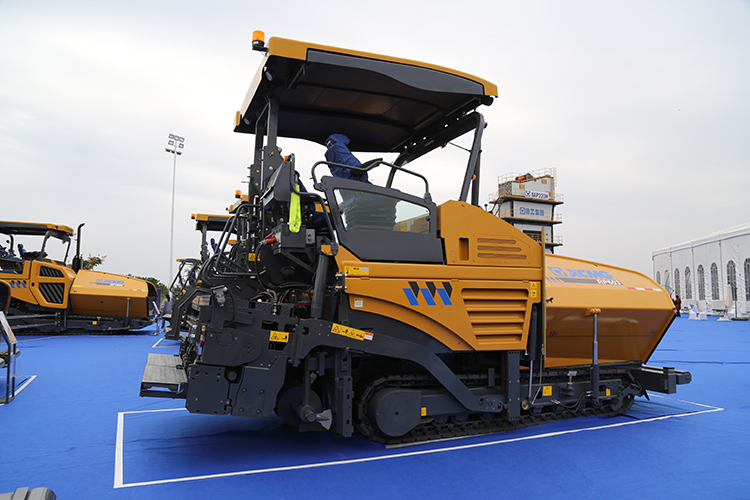

Rear view of the paving machine — Close-up of the paving screed and control console for precise adjustment.
