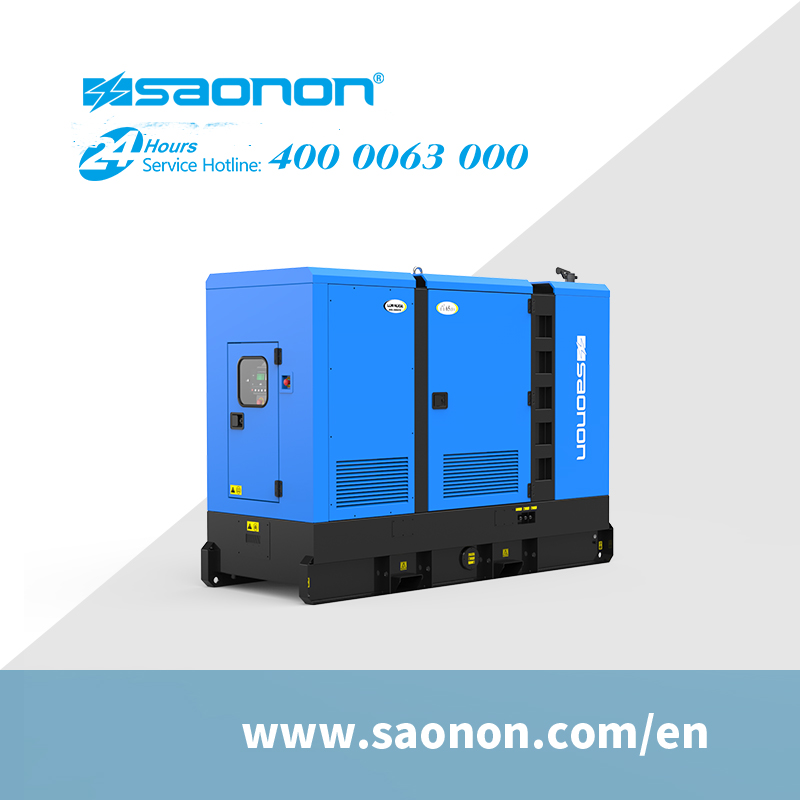

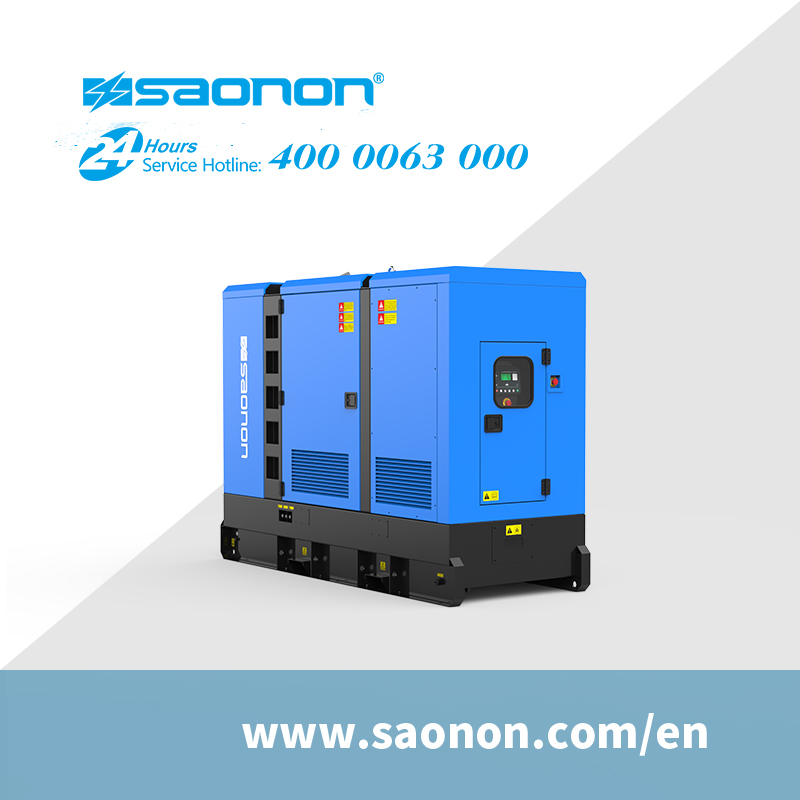

69kVA Standard Silent Diesel Generator
This 69kVA standard silent diesel generator provides a reliable power solution with minimized noise. Enclosed in a sound-attenuating canopy, it features a robust engine and high-efficiency alternator.
Technical Specifications
Overview
Professional Silent Power Solution
This 69kVA standard silent diesel generator is engineered for reliable, high-performance power in noise-sensitive industrial and commercial environments. The unit features an advanced fully-closed noise reduction design with residential silencers and flame-retardant sound-absorbing materials. Built for durability and ease of maintenance, it includes an external fuel filler, forklift adapters, and a weather-proof enclosure.
Performance Metrics
Key Performance Metrics
69 kVA
Standby Power (ESP)
62.5 kVA
Prime Power (PRP)
50 Hz
Frequency
1,500 r/min
Speed
Technical Specifications
Core Components
| Component | Specification |
|---|---|
| Engine Model | YUCHAI/YC4D90-D34 |
| Alternator | STAMFORD/UCI224F |
| Rated Voltage | 400 V |
Physical Properties
Physical Dimensions
- Dimensions: 2900 x 1200 x 1600 mm
- Weight: 1895 kg
Features
- Product Highlights
- Silent OperationRain-proofDust-proofForklift AccessibleExternal Fuel FillFlame-Retardant Lining
