60mm Brushless DC Gear Motor
This 60mm brushless DC gear motor features high power density, quick reaction, and a long operational life. It is suitable for applications such as CNC machines, industrial controls, and home appliances.
![]Brushless motor 60 mm Series - Image 1](https://cdn.merheinflare.com/public-site/products/brushless-motor-60-mm-series/0.jpg)
Technical Specifications
Overview
High-Performance 60mm Brushless DC Gear Motor
This 60mm series brushless DC motor is engineered for high power density and long-life operation in demanding industrial environments. It features a permanent magnet construction that ensures high efficiency and energy savings compared to traditional DC motors. With its spark-free operation and low noise profile, it is an ideal solution for precision motion control in CNC machinery, medical equipment, and home appliances.
Key Performance Metrics
Key Performance Metrics
24 VDC
Rated Voltage
8
Number of Poles
408 W
Max Rated Power
1.3 N·m
Max Rated Torque
Technical Specifications
Protection Class
IP40 StandardIP65 OptionalWaterproof
Work Duty
- S1 (Continuous)
- S2
- S3
- Motor Type
- Brushless Gear Motor
- Construction
- Permanent Magnet
- Speed Range
- 1000 - 3000 rpm
- Insulation Class
- Class BClass F
Model Variants
Performance by Model
| Model Number | Power (W) | Speed (rpm) | Torque (N·m) | Length (mm) |
|---|---|---|---|---|
| 60BLB0B003104RN-01 | 33.5 | 1,000 | 0.32 | 72 |
| 60BLB0B010304RN-01 | 100 | 3,000 | 0.32 | 72 |
| 60BLB1B006104RN-01 | 68 | 1,000 | 0.65 | 92 |
| 60BLB1B020304RN-01 | 204 | 3,000 | 0.65 | 92 |
| 60BLB2B010104RN-01 | 105 | 1,000 | 1 | 114 |
| 60BLB2B031304RN-01 | 314 | 3,000 | 1 | 114 |
| 60BLB3B013104RN-01 | 136 | 1,000 | 1.3 | 134 |
| 60BLB3B040304RN-01 | 408 | 3,000 | 1.3 | 134 |

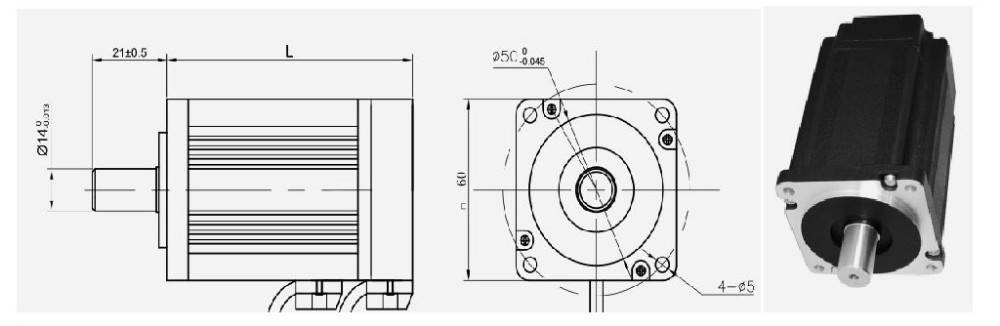

Physical Dimensions
- Frame Size
- 60 mm
- Shaft Diameter
- 14 mm
Applications
- Common Applications
- CNC Machine ToolsElectric BicyclesHome AppliancesIndustrial ControlMedical FieldRobotics
Compliance
Certifications
CECCC
