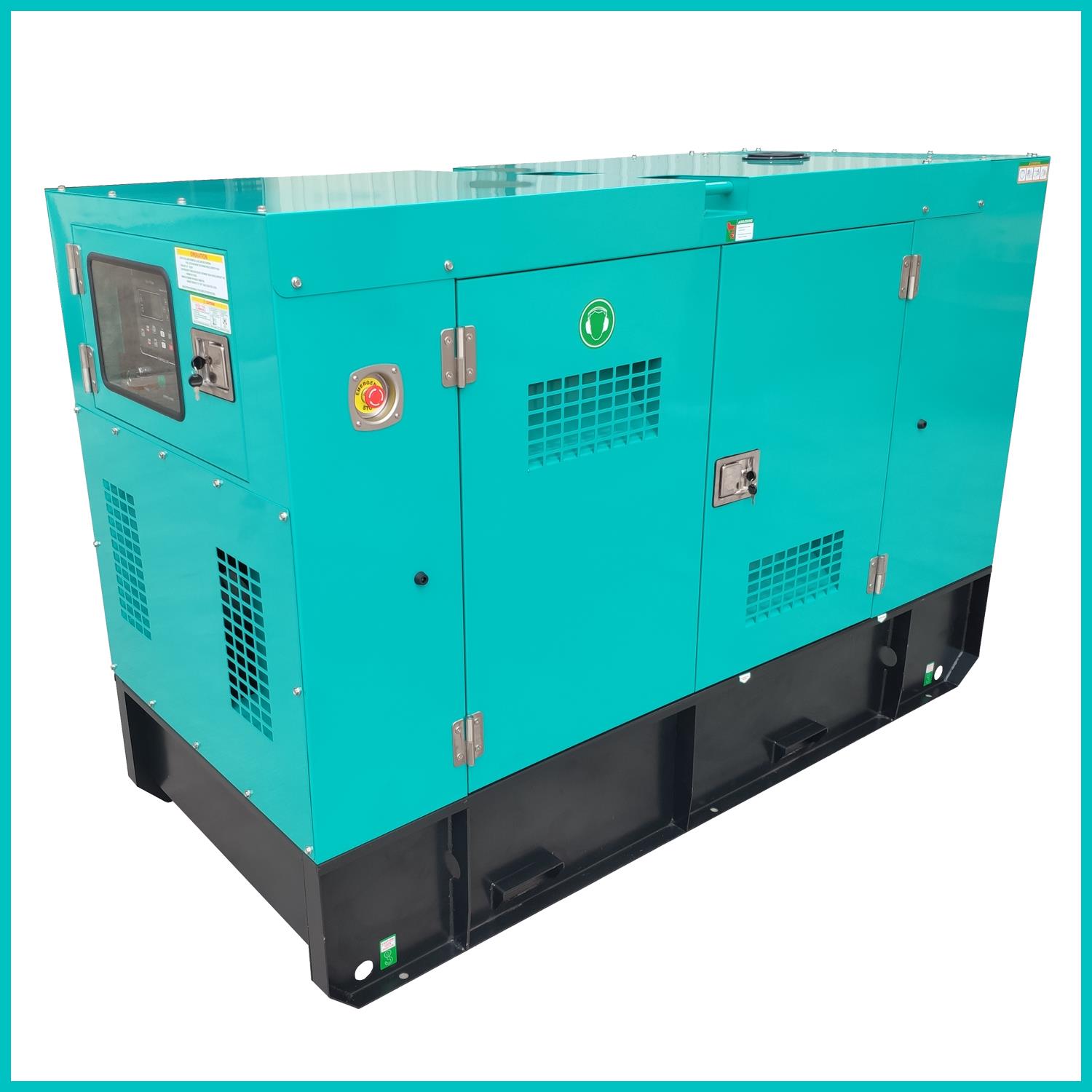

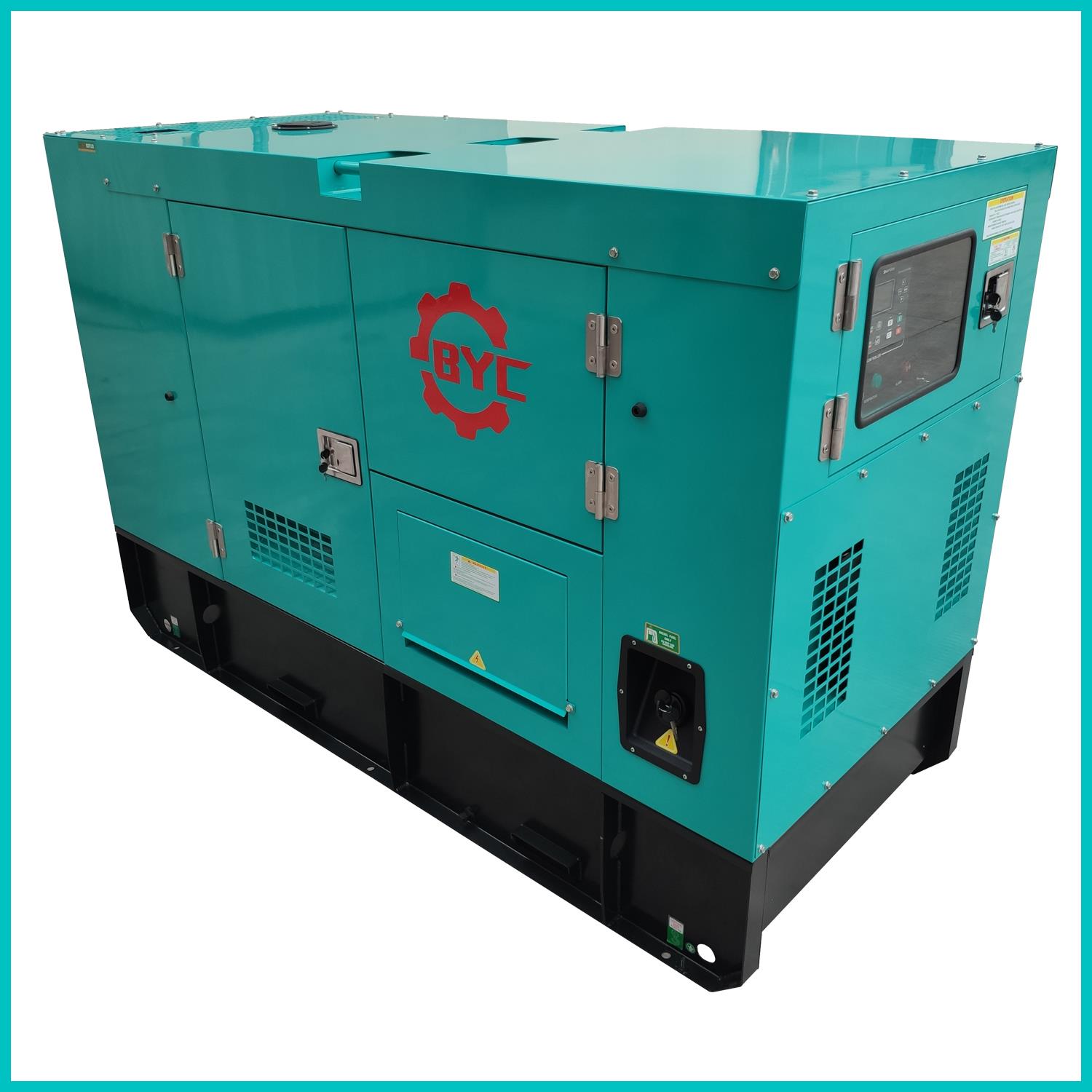

60kVA 48kW Silent Diesel Generator
This silent-type diesel generator provides 60kVA (48kW) of power. It features a robust diesel engine enclosed in a soundproof canopy for quiet operation.
Technical Specifications
Overview
High-Performance Silent Power Solution
This 60kVA silent diesel generator is designed to provide reliable, continuous electrical power with minimal noise impact. Featuring a robust water-cooled engine and a soundproof canopy, it is ideal for residential, commercial, and industrial environments where quiet operation is essential. The unit includes a comprehensive control system and integrated safety features to ensure stable performance and easy maintenance.
Power Ratings
Core Power Specifications
60 kVA
Prime Power
48 kW
Prime Power
10 %
Overload Capacity
Technical Configuration
Alternator Details
- Single bearing alternator
- Insulation Class H
- IP23 Protection rating
Fuel System
- Steel base fuel tank
- 8-12 hours built-in capacity
- Flexible fuel lines
- Anti-vibration mounting
- Cooling System
- Industrial water-cooled
Control & Safety
Safety & Protection
- 9 dB muffler exhaust system
- Emergency shutdown mechanisms
- Automatic Voltage Regulation (AVR)
- Low oil shutdown
- Overload protection
- Compatible Controllers
- SmartgenDeep SeaComAp
Operating Conditions
- Max Ambient Temperature
- 40 ºC
- Relative Humidity
- 90 %
Quality & Testing
Standard Testing Procedures
- Fuel tank pressure testing
- Bolt tightening torque testing
- Voltage bearing and insulation testing
- Noise level testing
- Load testing (25%, 50%, 75%, 100%, 110%)
Service & Warranty
- Standard Warranty
- 1 year or 1000 running hours (whichever comes first)
- Standard Delivery Time
- 25 working days
