Technical Specifications
Product Overview
Reliable AC Power Disconnect

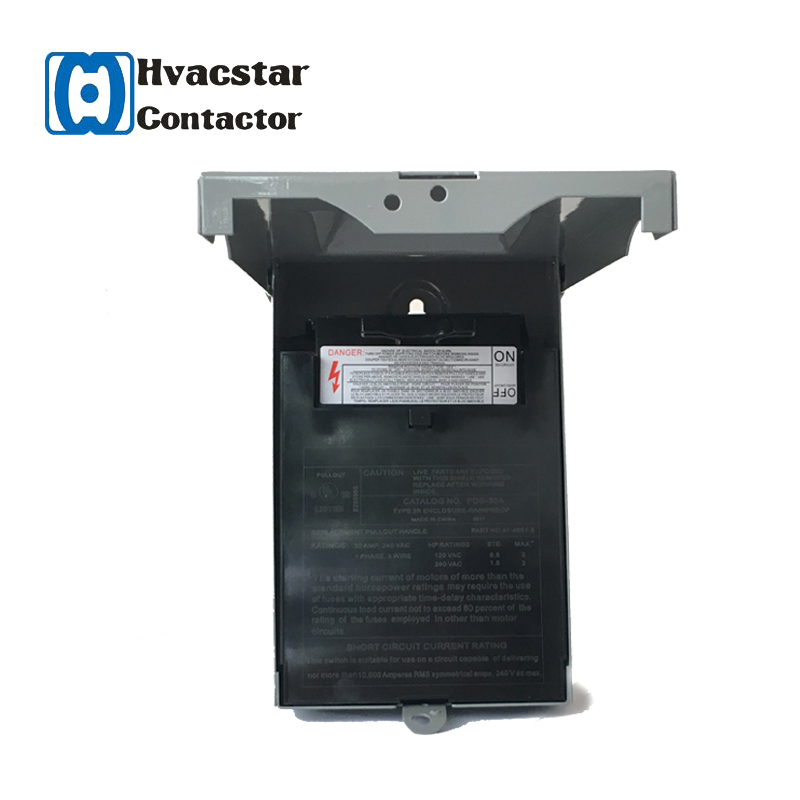

This fused AC disconnect box with a pullout switch is designed for safe and reliable power management in air conditioning systems. It provides a secure method for disconnecting power during maintenance or service, featuring a durable, rainproof enclosure suitable for outdoor installation. The unit is engineered for residential and light commercial HVAC applications, ensuring both equipment protection and operator safety.
Electrical Ratings
- Rated Current
- 30 A
- Voltage Rating
- 240 VAC
- Phase Configuration
- 1 Phase, 3 Wire
- Short Circuit Current Rating
- 10,000 Amperes RMS symmetrical
Performance Metrics
Horsepower Ratings
| Voltage | Standard | Max |
|---|---|---|
| 120 VAC | 0.5 | 2 |
| 240 VAC | 1.5 | 3 |
Physical Specifications
Enclosure Type
Type 3RRainproof
- Operation
- Pullout Switch
Compliance and Services
Quality Control
- 100% self-inspection
- Pre-packing testing
- Customization Services
- OEMODMLogo Printing
