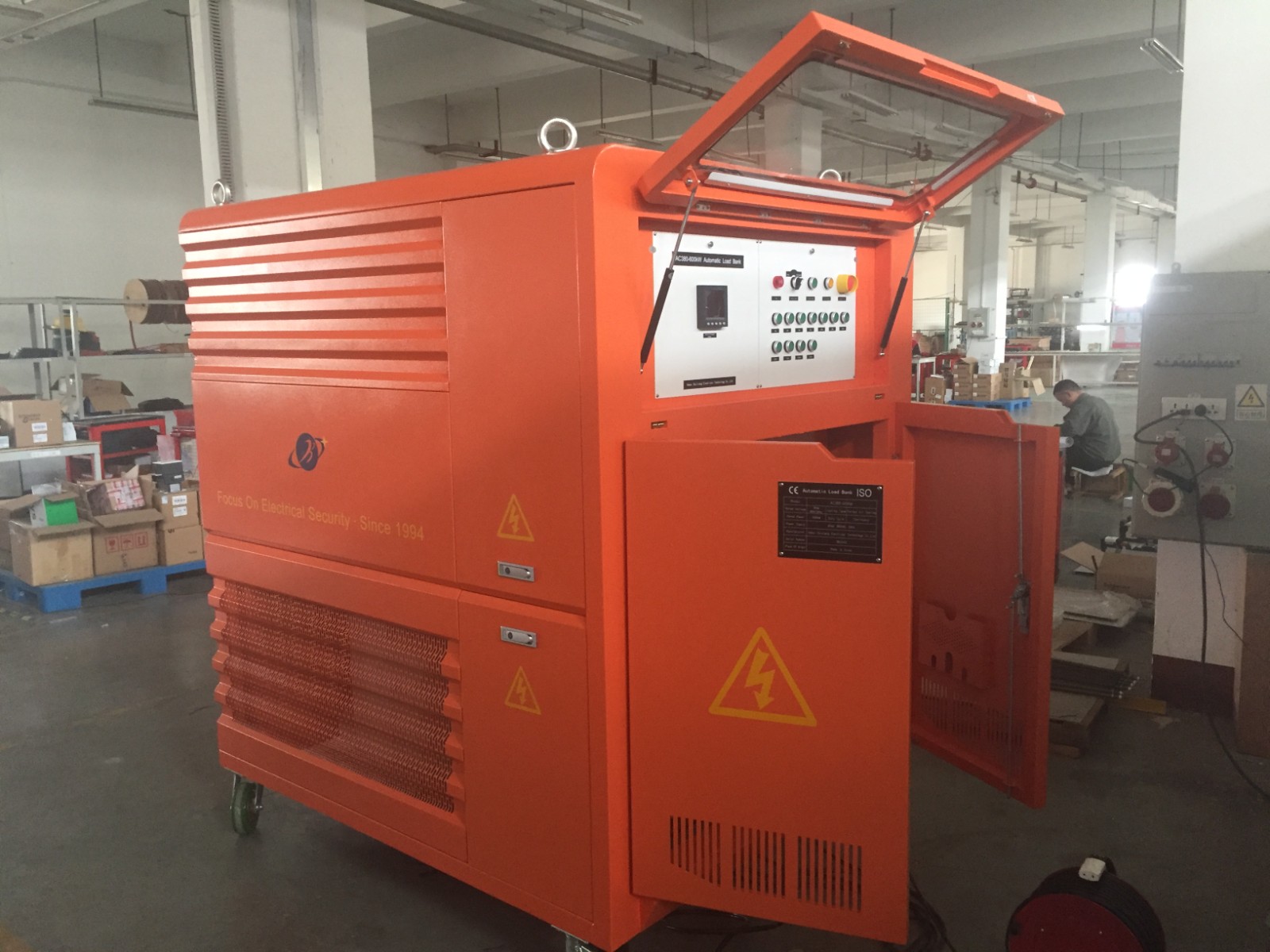

600kW UPS Load Bank for Power System Testing
This load bank is lightweight and compact, making it easy to move within a facility or to different job sites. It provides adjustable load step resolution and intelligent operator controls, making it suitable for maintenance and commissioning of critical power systems.
Technical Specifications
Overview
High-Performance UPS Testing Solution
This 600kW load bank is an ultra-compact and lightweight solution engineered for the rigorous testing of UPS systems and power generators. Designed to withstand harsh environments, it offers both manual and intelligent control modes with high-precision digital metering for comprehensive performance evaluation. Its modular and rugged construction ensures reliability during commissioning and maintenance in critical facilities like data centers.
Key Performance Metrics
Key Performance Metrics
600 kW
Maximum Capacity
380 V
Rated Voltage
50 Hz
Frequency
Technical Specifications
- Load Capacity
- 600 kW
- Voltage Range
- AC380V - AC400V
- Phase Configuration
- 3 Phase and Single Phase

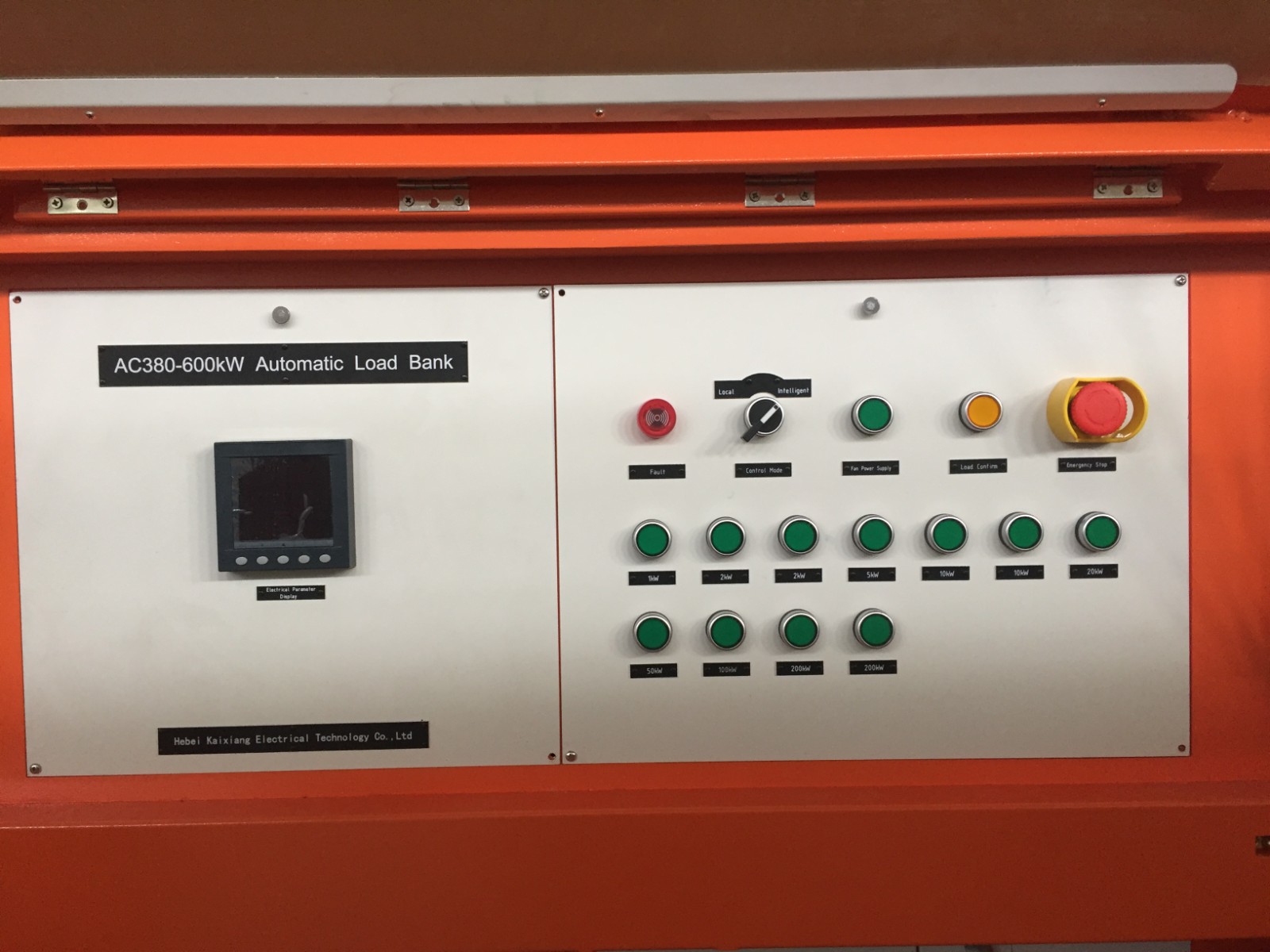

Control & Monitoring
Available Load Steps
- 1kW
- 2kW
- 5kW
- 10kW
- 20kW
- 50kW
- 100kW
- 200kW
- Control Modes
- Local ManualIntelligent RemoteData Logging Software
- Communication Interfaces
- RS232RS485
Safety & Protection
Safety Systems
- Over-temperature protection
- Branch circuit fuse protection
- Emergency Stop
- Air Pressure monitoring
- Over-current protection
Physical Construction
- Enclosure Rating
- Weather proof enclosure
- Mobility & Handling
- CastorsLifting RingsRugged Frame
- Cooling Method
- High velocity cooling fans
Compliance
Certifications
CEISO
