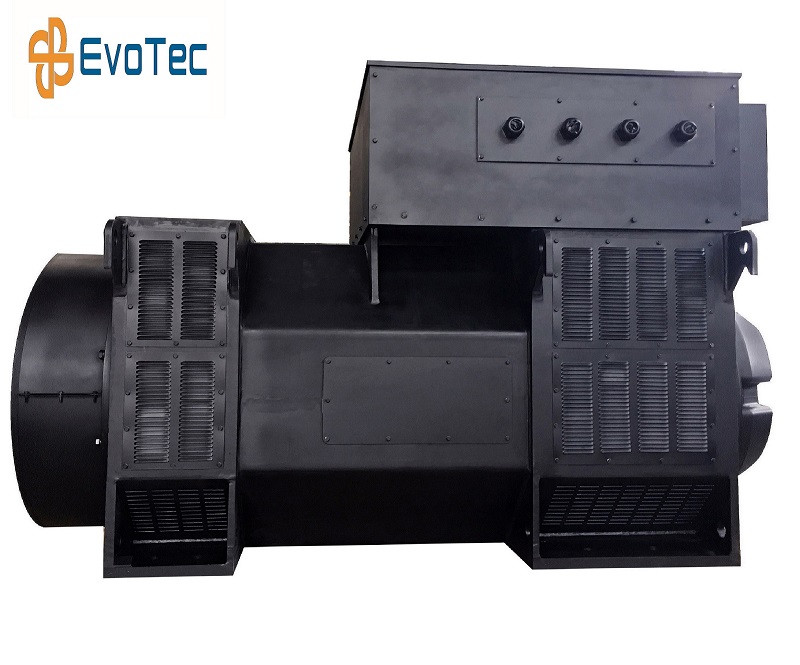

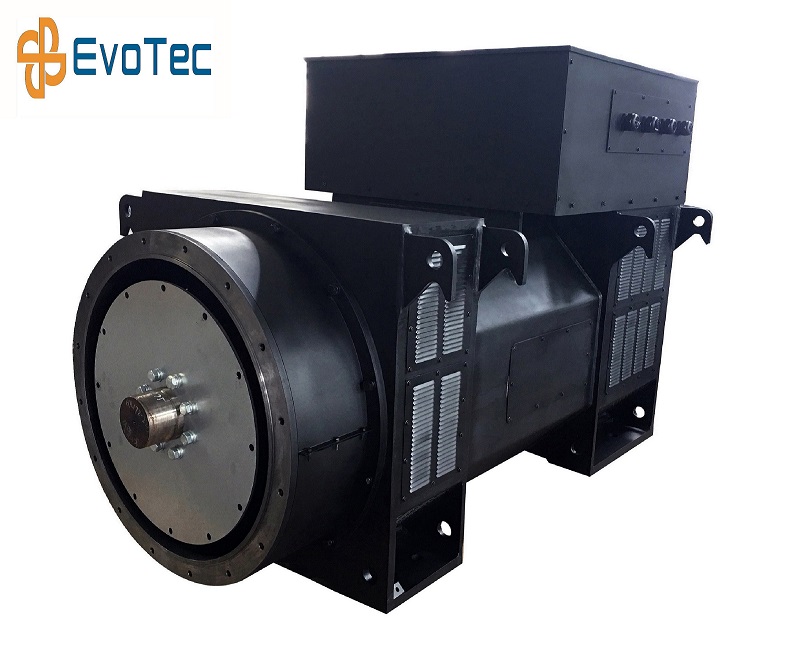

6-Pole Land Use Generator
The 6-pole land use generator is a robust and efficient electrical power generation unit designed for stationary applications. Engineered for reliable power output, it features a rugged construction, efficient cooling system, and stable voltage regulation, making it suitable for continuous operation in demanding environments.
Technical Specifications
Overview
High-Efficiency 6-Pole Generator
This 6-pole land-use generator is engineered for robust performance in industrial and commercial stationary applications. Featuring a patented high-efficiency winding design and advanced voltage regulation, it optimizes fuel consumption while ensuring stable power output. With a compact structure and enhanced thermal management, this unit is built for durability, reliability, and ease of integration into diverse power systems.
Performance Metrics
Rated Power Range
Capacity Range
Technical Specifications
Insulation Class
- Voltage Range
- 110V - 690V
- Operating Speed
- 1000 rpm
- Frequency
- 50Hz60Hz
- Degree of Protection
- IP21 to IP55
Design Features
Design Advantages
- Patented high-efficiency winding design
- Pitch 2/3 winding design for reduced waveform distortion
- Built-in exciter structure for low vibration and low loss
- Compact size for improved ventilation and heat dissipation
Voltage Regulation
AVR Capabilities
| Feature | Description |
|---|---|
| Compatibility | 50/60Hz brushless excitation |
| Protection | Frequency compensation, EMI filtering, fuse protection |
| Voltage | Multi-voltage selection (110V, 220V, 440V) |
| Advanced | Parallel operation with over-excitation protection |
