6-Inch Water-Filled Submersible Motor
This submersible motor features a robust design and quality components for optimal performance. It is easy to install and provides superior reliability.
Technical Specifications
Product Overview

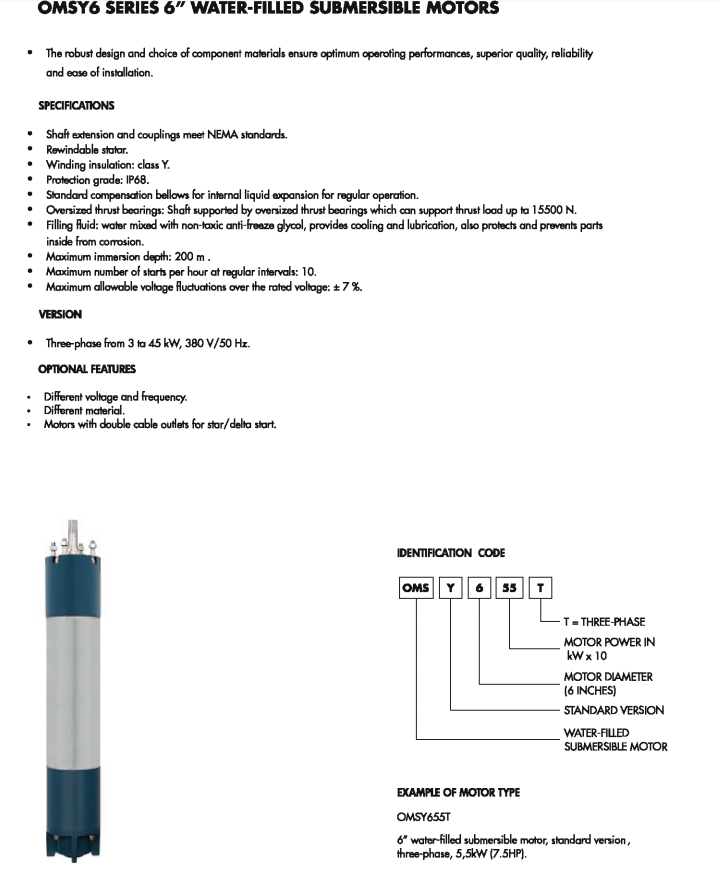

OMSY6 Series Performance
The OMSY6 series 6-inch water-filled submersible motors are engineered for high-performance operation in demanding environments such as wells and boreholes. These motors feature a robust, rewindable stator design with class Y winding insulation and IP68 protection, ensuring superior reliability and longevity. With oversized thrust bearings capable of supporting loads up to 15,500 N and a non-toxic anti-freeze glycol filling for optimal cooling and corrosion protection, this motor is built for professional-grade durability and ease of installation.
Technical Specifications
Protection Grade
IP68
- Winding Insulation
- Class Y
- Maximum Immersion Depth
- 200 m
- Max Starts per Hour
- 10
- Allowable Voltage Fluctuation
- ±7%
Performance Metrics
Thrust Load Capacity
15,500 N
Max Thrust Load
- Power Range
- 3 to 45 kW
- Rated Voltage/Frequency
- 380 V / 50 Hz
Configuration
Optional Features
- Different voltage and frequency options
- Alternative materials
- Double cable outlets for star/delta start
- Compliance
- NEMA Standards
