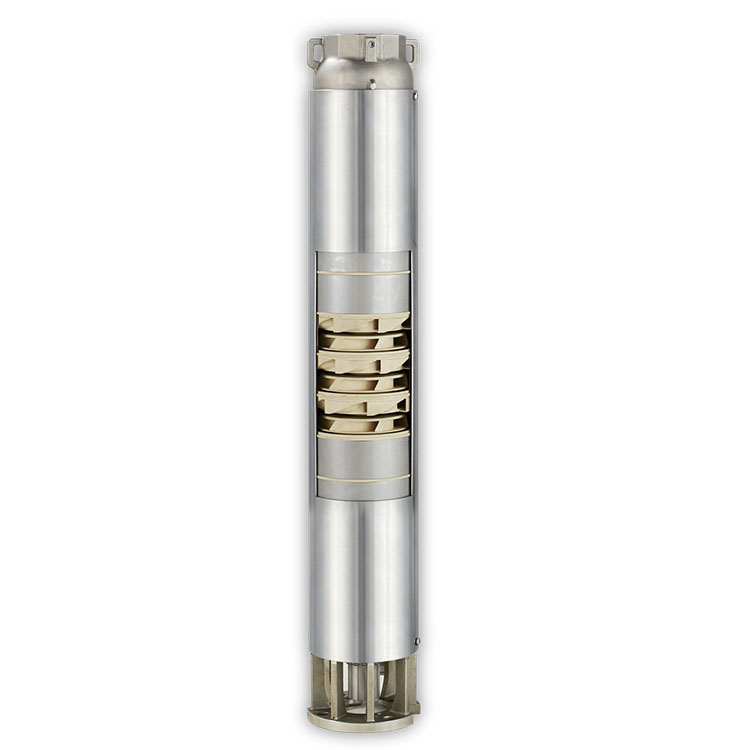

6-Inch Submersible Water Pump
This submersible pump is suitable for deep well pumping, irrigation, and industrial applications. The multi-stage impeller system provides high pressure and flow rates.

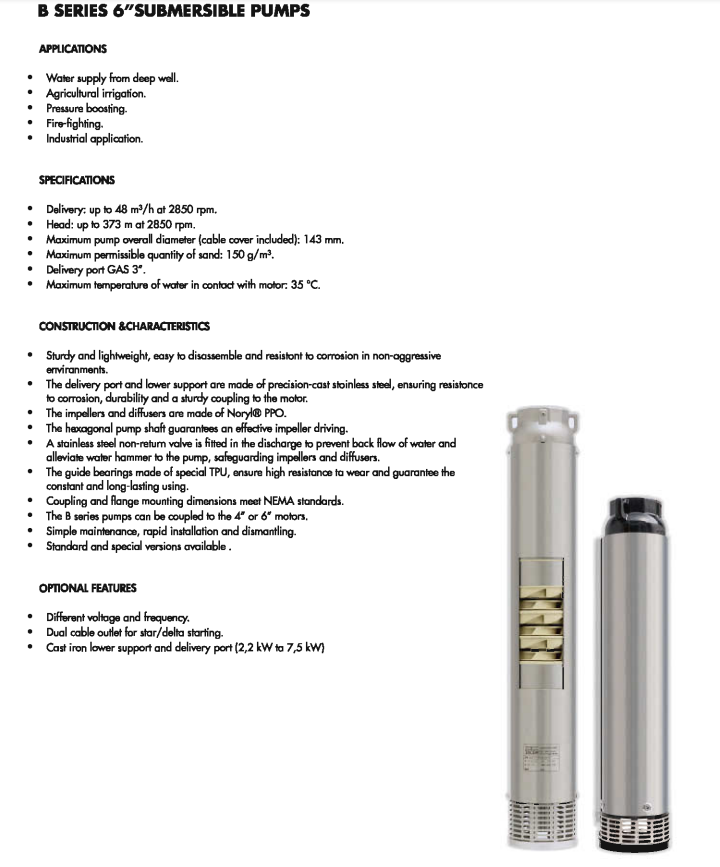

Technical Specifications
Overview
High-Performance 6-Inch Submersible Solution
The B Series 6-inch submersible pump is a robust and efficient solution designed for demanding water supply applications, including deep well extraction and industrial use. Constructed from high-grade stainless steel, it offers exceptional durability and corrosion resistance in non-aggressive environments. Its multi-stage design ensures high pressure and flow rates while maintaining a compact profile for easy installation in narrow boreholes.
Performance Metrics
Performance Highlights
48 m³/h
Max Delivery
373 m
Max Head
2,850 rpm
Rated Speed
Technical Specifications
- Overall Diameter
- 143 mm
- Max Sand Content
- 150 g/m³
- Delivery Port Size
- GAS 3"
- Max Water Temperature
- 35 °C
Applications
- Recommended Uses
- Deep Well Water SupplyAgricultural IrrigationPressure BoostingFire-fightingIndustrial Application
Construction & Materials
Component Materials
| Component | Material |
|---|---|
| Delivery Port & Support | Precision-cast Stainless Steel |
| Impellers & Diffusers | Noryl® PPO |
| Guide Bearings | Special TPU |
| Pump Shaft | Hexagonal Stainless Steel |
Design Features
Design Advantages
- Stainless steel non-return valve to prevent backflow and water hammer
- NEMA standard coupling and flange mounting dimensions
- Compatible with 4" or 6" motors
- Sturdy and lightweight design for easy disassembly
- High wear resistance guide bearings for long-lasting use
Optional Configurations
Available Options
Variable Voltage/FrequencyStar/Delta Starting (Dual Cable)Cast Iron Support (2.2-7.5 kW)
