Technical Specifications
Overview
High-Performance 6-Inch Submersible Pump
This 6-inch submersible deep well water pump is engineered for demanding water supply tasks in domestic, civil, and industrial applications. Featuring a robust 304 stainless steel shaft and a 100% copper wire motor, it ensures long-term durability and efficient power transmission. The oil-filled rewindable motor and PC/POM impellers provide reliable performance for irrigation and garden use even in deep well environments.
Key Features
Key Benefits
100 %
Copper Wire Motor
1 Year
Warranty
6 in
Min. Well Diameter
Technical Specifications
Operating Conditions
- Maximum fluid temperature: +35°C
- Maximum sand content: 0.25%
- pH permissible range: 6.5 - 8.5
- Pump speed: ~2850 1/min
Motor & Pump Construction
Motor & Pump Design
- Rewindable motor filled with edible oil
- 304# Stainless steel shaft
- PC/POM floating impellers
- Casing stressed design with screw thread pump sleeve
- Built-in capacitor & current mode thermal protector
Electrical Data
Voltage Configurations
- Single-phase: 220V - 240V / 50Hz
- Three-phase: 380V - 415V / 50Hz
- Optional: 60Hz or special voltages on request

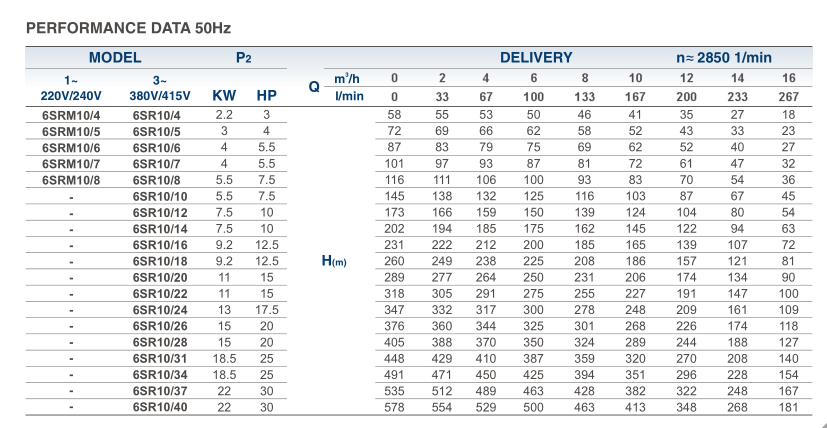

Performance Data
Model Performance Range (50Hz)
| Model | Power (kW) | Power (HP) | Max Head (m) |
|---|---|---|---|
| 6SRM10/4 | 2.2 | 3 | 58 |
| 6SRM10/8 | 5.5 | 7.5 | 116 |
| 6SR10/20 | 11 | 15 | 289 |
| 6SR10/40 | 22 | 30 | 578 |
Compliance & Quality
- Certifications
- CEISO9001:2008ISO 9906 Compliant
Applications
Primary Applications
Deep Well Water SupplyCivil & IndustrialIrrigationDomestic Use
