6-20mm Ballnose End Mill Grinder

This is a specialized grinder for ball end mills. Grinding is accurate, rapid, and easy, requiring no prior skill.

Request a Quote Download PDFPDF

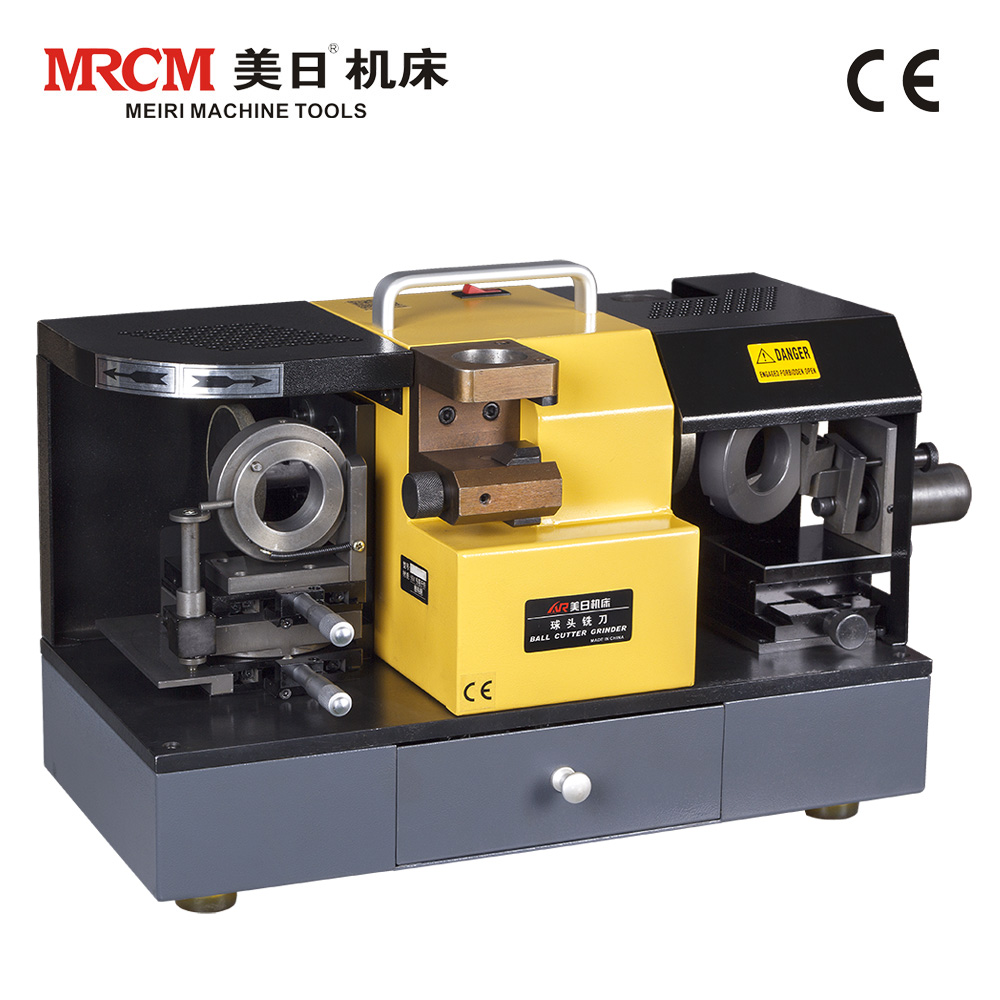

MR-X8 6-20mm End mill Ballnose sharpening/ grinding machines with China factory price - Image 1

Technical Specifications

Product Overview

Precision Ballnose End Mill Grinding

This specialized grinding machine is engineered for the rapid and accurate sharpening of ballnose end mills. Designed for ease of use, it requires minimal operator skill to achieve professional-grade results. With a robust construction and high-performance grinding capabilities, it ensures consistent cutting edge geometry, helping to extend tool life and optimize machining performance in professional workshop environments.

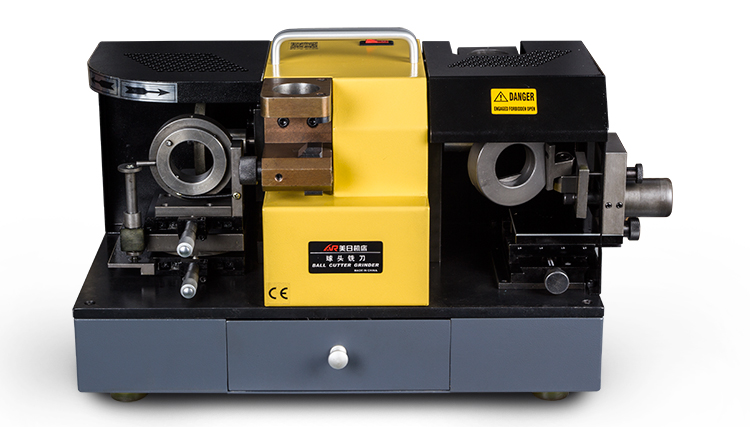

Front view of the ballnose grinding machine — Compact and robust design suitable for tool rooms and manufacturing environments.

Technical Specifications

Machine Specifications

Feature	Detail
Model	MR-X8
Power	220V / 250W
Spindle Speed	4400 rpm
Dimensions	60 x 29 x 37 cm
Weight	40 kg

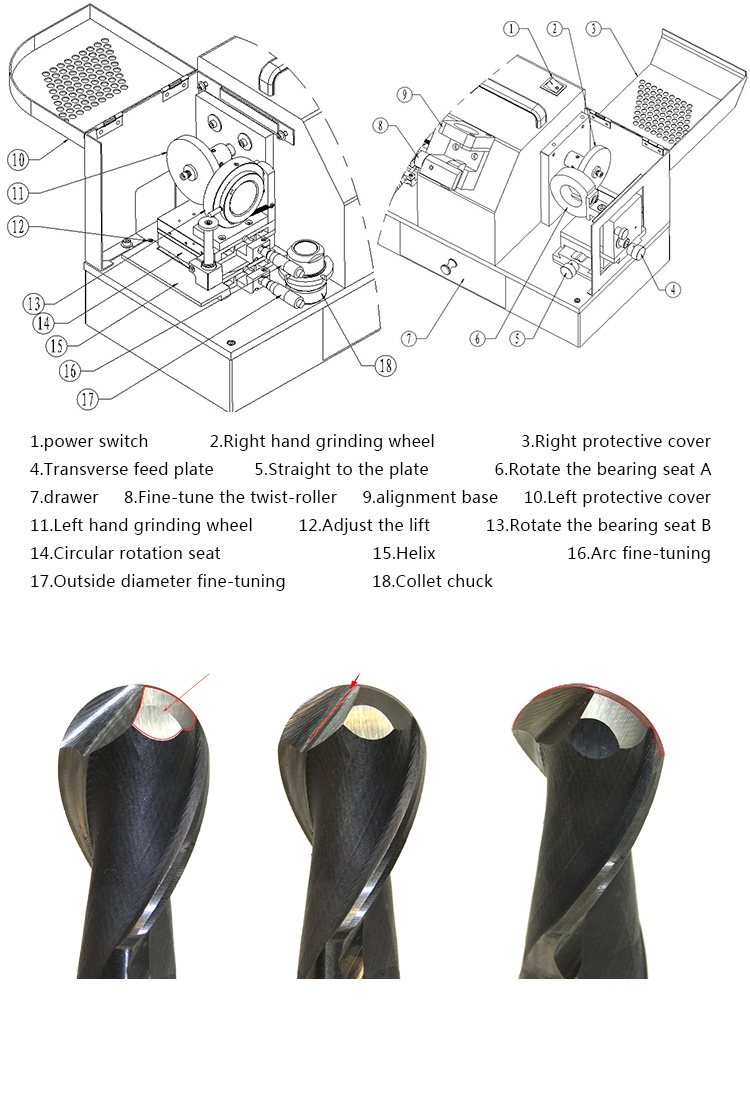

Annotated diagram of the grinding machine showing controls and adjustment points — Detailed view of machine controls, including transverse feed plate and fine-tuning mechanisms for precise geometry adjustment.

Tool Compatibility

Processing Capacity

6 mm

Minimum Diameter

20 mm

Maximum Diameter

Included Collets

6
8
10
12
14
16
18
20

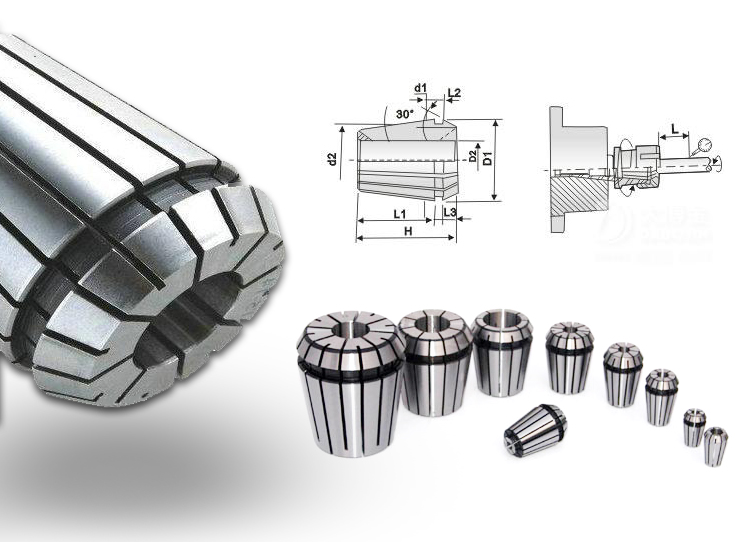

Technical drawing of collet dimensions — Precision collet design for secure tool holding and concentricity during grinding operations.

Grinding & Performance

Grinding Wheel Compatibility: SDC (Standard for Carbide)CBN (Optional for HSS)

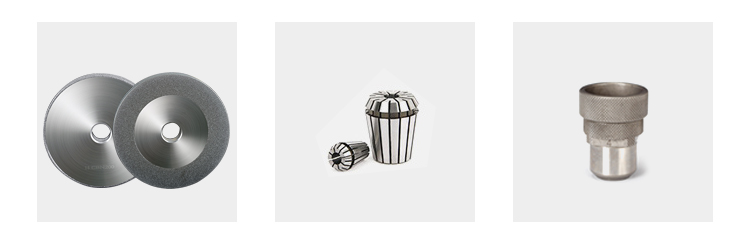

Close up of grinding machine accessories — High-precision accessories including diamond grinding wheels and collet chucks designed for optimal material removal.
