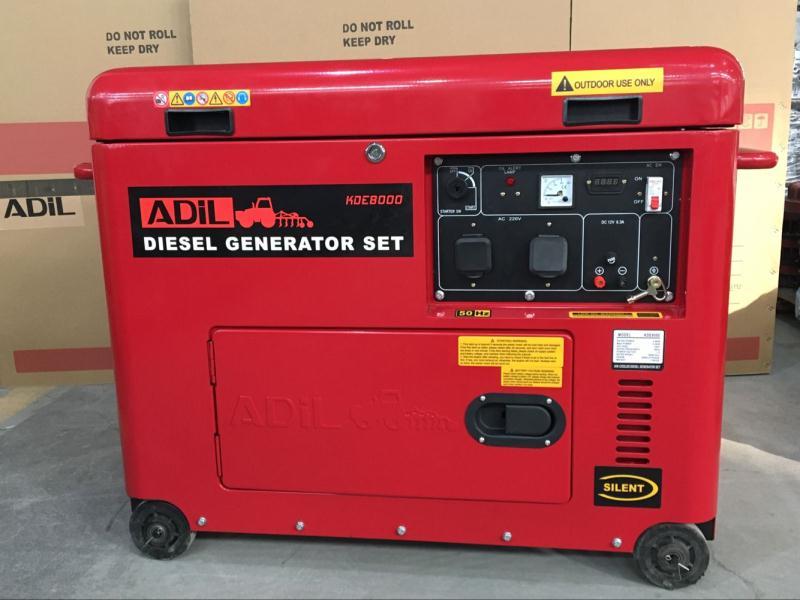

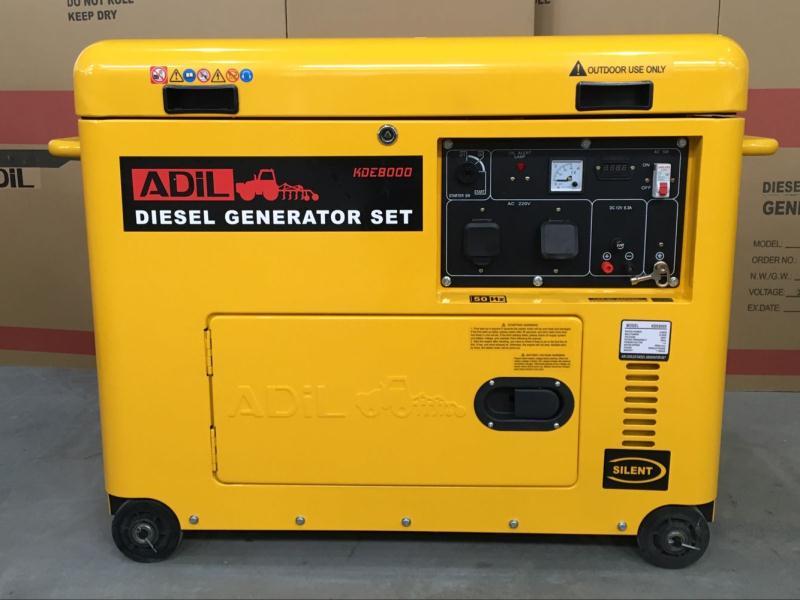

5kW Portable Silent Diesel Generator
This 5kW diesel generator provides a stable power output with reduced operational noise. Its portable design includes a wheel-mounted base and a control panel with multiple outputs.
Technical Specifications
Overview
Reliable Portable Power
This portable silent diesel generator is engineered for consistent and efficient power output in demanding environments. Featuring a robust soundproof enclosure, it ensures low-noise operation suitable for sensitive locations. With versatile voltage options and a wheel-mounted design, it provides a flexible and highly maneuverable power solution for outdoor applications.
Performance
- Rated Output Range
- 5.0kW - 8.0kW
- Frequency
- 50Hz60Hz
- Voltage Options
- 110V220V380V
Technical Details
Compatible Engine Models
- YC186FAE
- YC188FAE
- YC195FE
- Alternator Configuration
- Single-phase / Three-phase
Physical Specifications
- Dimensions (L x W x H)
- 935 x 555 x 760 mm
- Net Weight Range
- 165kg - 225kg
Features
Noise Level
Silent
Key Operational Features
- Portable wheel-mounted design
- Soundproof casing
- AC 220V output
- DC 12V output
- Integrated voltmeter and ammeter
