5kW Hybrid Off-Grid Solar Power System
This hybrid off-grid solar system is designed for residential or commercial use. It integrates solar panels, a solar inverter, battery storage, and AC input to provide a versatile power solution.
Technical Specifications
System Overview
Reliable Hybrid Power Solution
This 5kW hybrid off-grid solar system is designed to provide comprehensive energy independence for residential or commercial applications. By integrating solar panels, a hybrid inverter, and battery storage, the system efficiently manages power generation while offering seamless backup support from the utility grid or a generator. It reliably powers essential appliances, including lighting, laptops, printers, TVs, and air conditioning systems.
Technical Performance
Rated Power Capacity
5 kW
System Capacity
- Compatible Appliances
- LaptopsLightingPrintersTVsAir Conditioning

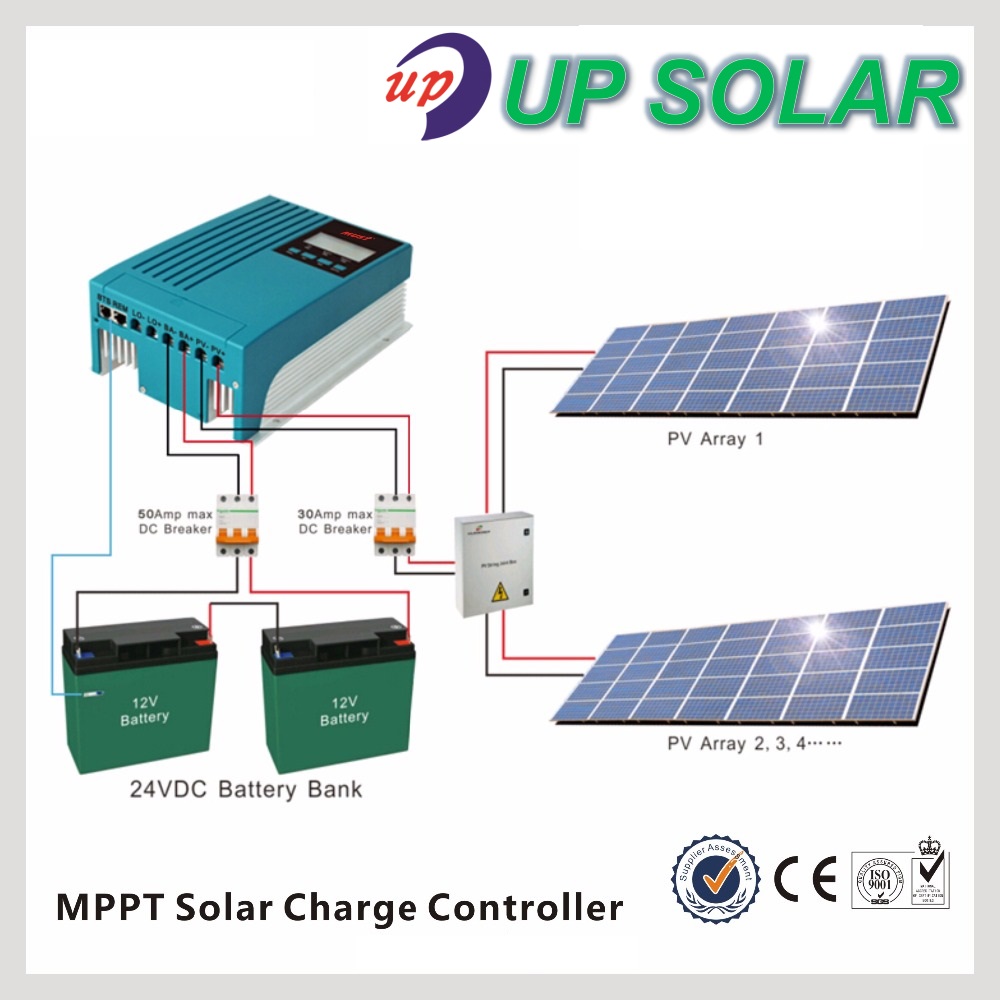

Charge Controller
Battery Bank Compatibility
- 12V Batteries
- 24VDC Battery Bank
DC Breaker Protection
| Component | Rating |
|---|---|
| Primary DC Breaker | 50 Amp |
| Secondary DC Breaker | 30 Amp |
- Controller Technology
- MPPT Solar Charge Controller

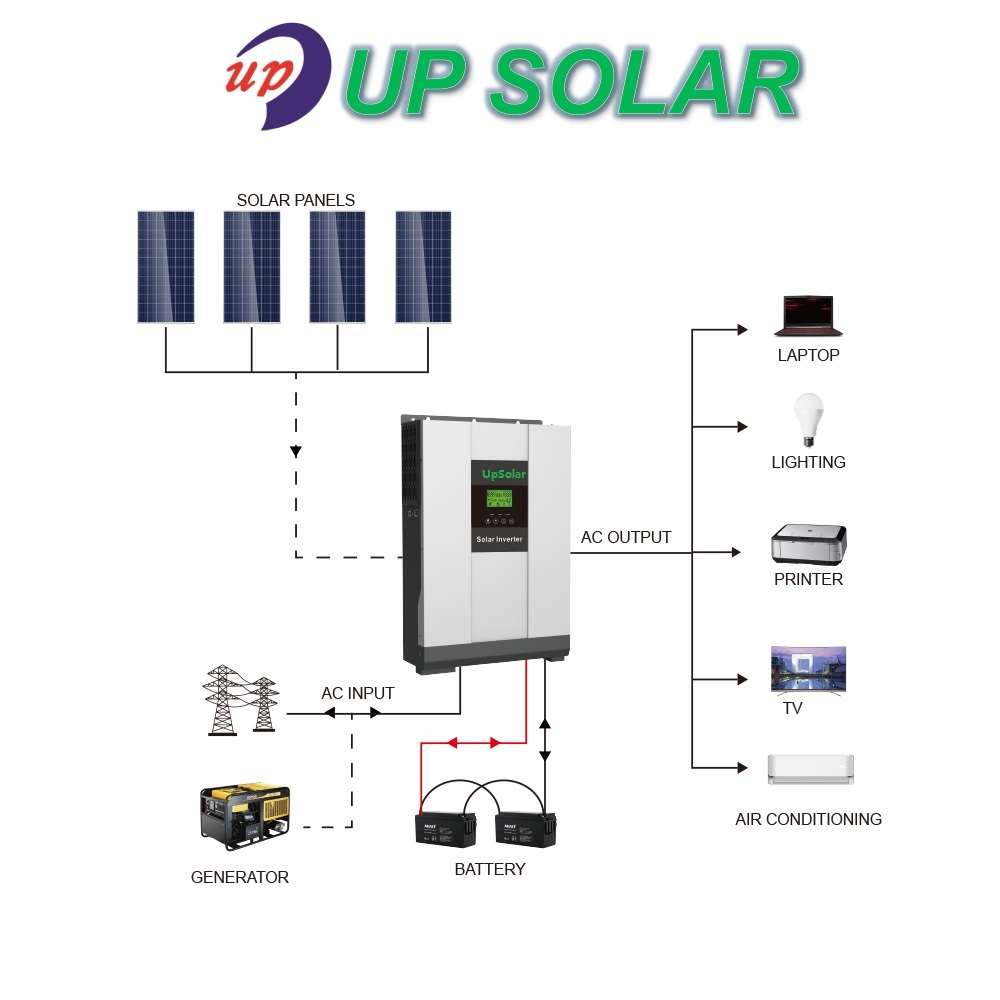

System Integration
Available Input Sources
PV ArrayUtility GridGenerator
