58.8V 3A Lithium-Ion Battery Charger for Electric Scooters
This lithium-ion battery charger is designed for electric motorcycles and scooters. It provides a stable 58.8V output with a 3A charging current, suitable for 14S 48V battery packs.
Technical Specifications
Overview
High-Performance Charging Solution

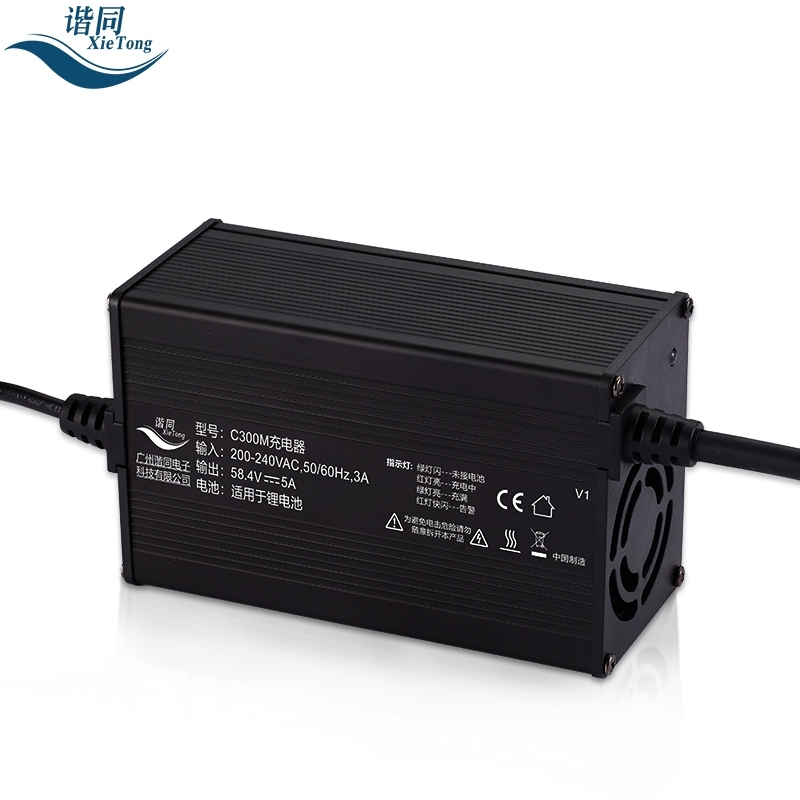

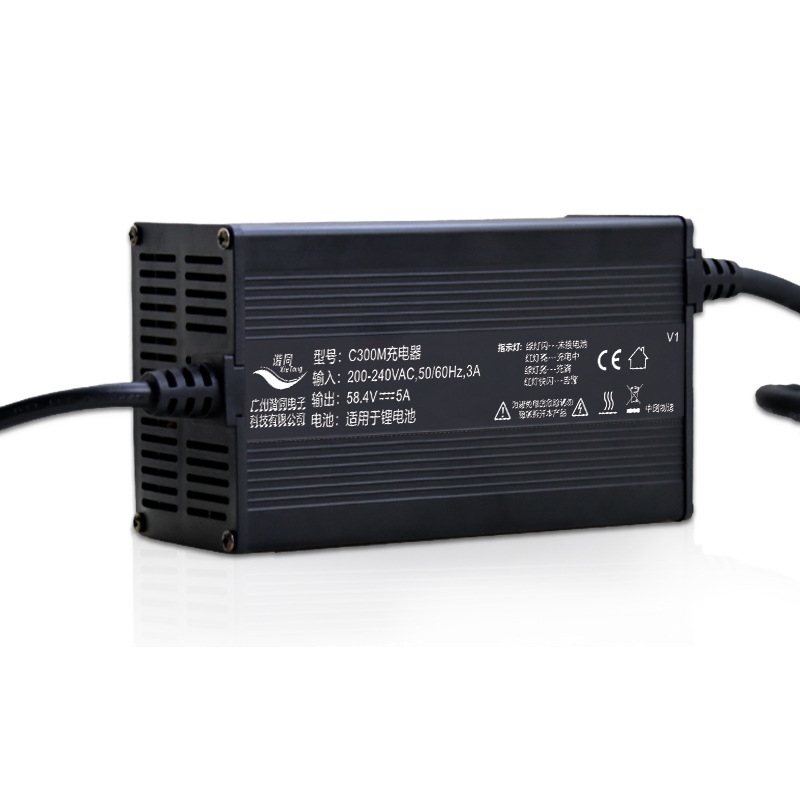

The C300M-V1 is a versatile and robust battery charger engineered for electric mobility applications. Designed with an aluminum alloy housing, it ensures efficient heat dissipation and durability for daily use in electric scooters and e-bikes. This charger supports multiple battery chemistries, making it a reliable power solution for various electric vehicle setups.
Technical Specifications
Output Configuration
58.8 V
Voltage
3 A
Current
- Output Power
- 300 W
- Input Voltage Range
- 110-132VAC / 200-264VAC
Compatibility
Primary Applications
- Electric Motorcycle
- Electric Scooter
- E-bike
- Supported Battery Chemistries
- Li-ionLiFePO4Lead Acid
Physical Attributes
- Dimensions
- 137 x 90 x 51 mm
- Net Weight
- 1 kg
- Housing Material
- Aluminium Alloy
Operational Features
LED Status Indicators
| Status | Indicator |
|---|---|
| No Battery Connected | Flashing Green |
| Charging | Solid Red |
| Fully Charged | Solid Green |
| Error/Fault | Flashing Red |
Compliance & Warranty
Certifications
CE
- Warranty Period
- 12 Months
