57 Series Brushless DC Motor
This brushless DC motor provides high torque up to 0.7Nm. It features a wide speed range, high efficiency, and long life.
Technical Specifications
Overview
High-Performance 57 Series BLDC Motor
The 57 Series Brushless DC Motor is designed for high-efficiency applications requiring a wide speed range and high torque output up to 0.7Nm. Featuring a 6-pole design and star winding, these motors offer a long service life and precise control. They are ideal for automotive accessories, such as electric seat adjustment systems, and other industrial automation needs.
Key Performance Metrics
Performance Highlights
260 W
Max Rated Power
0.7 Nm
Max Rated Torque
3,500 rpm
Rated Speed
24 V
Operating Voltage
Technical Specifications
Model Specifications Table
| Model | Rated Power (W) | Rated Torque (Nm) | Rated Current (A) | Weight (Kg) | Length (mm) |
|---|---|---|---|---|---|
| 57DMWH54(6)-2435 | 70 | 0.2 | 4 | 0.5 | 54 |
| 57DMWH69(6)-2435 | 140 | 0.37 | 8 | 0.7 | 69 |
| 57DMWH105(6)-2435 | 260 | 0.7 | 15 | 1.3 | 105 |
General Characteristics
Insulation Class
Class B
- Winding Type
- Star
- Number of Poles
- 6
- Hall Effect Angle
- 120° electrical angle
- Operating Temperature
- -20 to +40 °C
Wiring & Connectivity
Lead Wire Configuration
- Phase U: Red (18AWG)
- Phase V: Yellow (18AWG)
- Phase W: Black (18AWG)
- Hall +5V: Red (26AWG)
- Hall A: Blue (26AWG)
- Hall B: Green (26AWG)
- Hall C: White (26AWG)
- Hall GND: Black (26AWG)

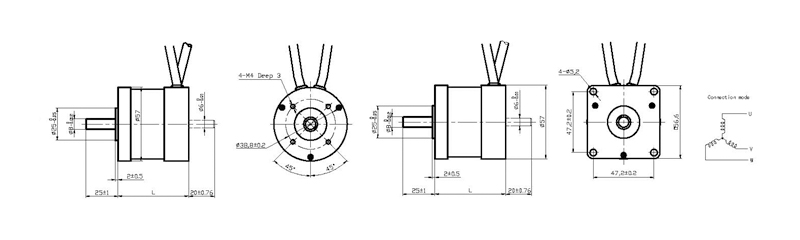

Mechanical Data
- Shaft Run Out
- 0.025 mm
- Dielectric Strength
- 500VDC for one minute
