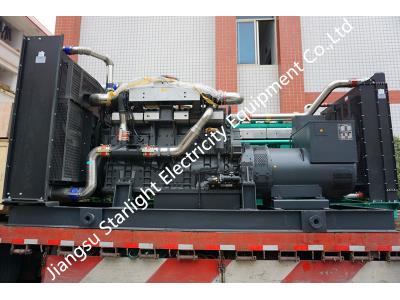

56kVA-2250kVA Diesel Generator Set
This diesel generator set, powered by a diesel engine, comes standard with an AMF controller. It features a high accuracy AVR, which provides good dynamic performance and minimal voltage wave distortion.
Technical Specifications
Overview
Reliable Power Generation
This diesel generator set offers a versatile power range from 56kVA to 2250kVA, designed to provide reliable and efficient power generation for diverse applications. The unit features a robust engine coupled with a high-performance alternator, ensuring stable and consistent power output for both prime and standby needs. Equipped with advanced monitoring and safety systems, it is built for durability and ease of installation in various environments.
Performance Metrics
Key Performance Indicators
500 KW
Prime Output
625 kVA
Prime Output
900 A
Rated Current
50 Hz
Rated Frequency
- Start-up Time
- 5.5 s
- Power Factor
- 0.8
Technical Specifications
Alternator Details
- Single bearing alternator
- IP23 protection
- Insulation class H/H
- Rated Voltage
- 400/230V
- Engine Model
- 12V135BZLD1
- Cooling System
- Radiator 50°C max with belt-driven fans and safety guard
Features & Equipment
- Standard Equipment
- 24V charge alternatorDry type air filterFuel filterOil filterMain line circuit breakerStandard control panelAbsorberMuffler
