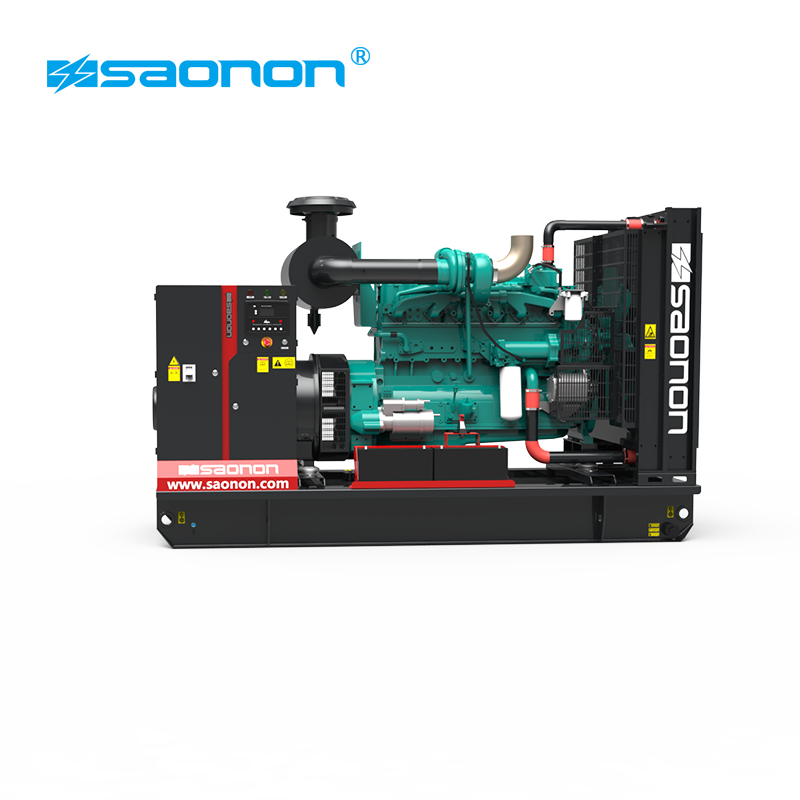

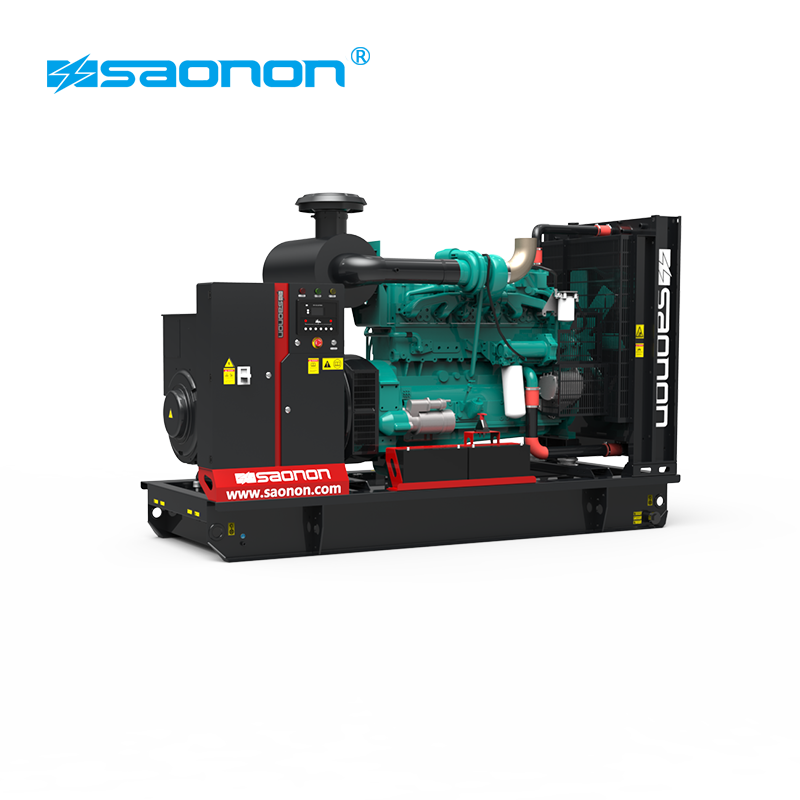

550 kVA Open Type Diesel Generator Set
This 550 kVA open type diesel generator set delivers reliable electrical power for various applications. It features a robust diesel engine coupled with an alternator, all mounted on a sturdy base frame.
Technical Specifications
Overview
High-Performance Open Type Diesel Generator
This 550 kVA open-type diesel generator set is engineered for reliability, stability, and high performance in industrial and commercial applications. Built with a heavy-duty engine and a high-efficiency alternator, it is ideal for prime, standby, and emergency power requirements. The design features a robust, CAE-analyzed chassis for vibration isolation and ease of transshipment, ensuring safe and long-term operation.
Technical Specifications
Performance Metrics
550 kVA
ESP Rating
500 kVA
PRP Rating
60 Hz
Frequency
1,800 r/min
Rated Speed
Core Components
- Cummins KTA19-G3 Engine
- Stamford HCI444F Alternator
- Integrated control panel
- Integrated breaker cabinet
Dimensions & Weight
| Attribute | Value |
|---|---|
| Weight | 3830 kg |
| Dimensions (LxWxH) | 3350 x 1280 x 1934 mm |
Features
- Operational Highlights
- Overcurrent protectionOvervoltage protectionLow oil pressure shutdownFull-load operation >10 hoursAnti-theft battery designVibration isolation
Applications
Recommended Applications
- Construction sites
- Manufacturing plants
- Hospitals
- Critical facilities
- Emergency power systems
